Temperature Controller Thermostat Thermometer W1209 -50-110Deg DC 12V 500mm Probe **LOCAL STOCK**
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
Thermostat Temperature Controller DC 12V:
Category: 1500312645 / 1510312645 - Controller Humidity / Temperature
Specifications:
Temperature Control Range: -50 to 110 ° C
Measurement Accuracy: 0.1 ° C
Refresh Rate: 0.5 S
Input Power: DC 12V
Measuring Inputs: NTC (10K 0.5%)
Output: 1 Channel relay output, capacity = 220V AC 5/10A
Environmental Requirements: -10 to 60 degree Humidity 20% - 85%
Display Type: 0.28 " three digital display tube
Display Colour: Red
Size: 48 x 40 x 14mm
Probe Length: 500mm
Instructions:
Connect the power supply and the load, you can supply to the controller,Is displayed as a measured temperature, Press the SET button, the display flashes the temperature,Press + - to set the desired temperature, After setting press SET to confirm return,The controller automatically performs the relay by setting off!
Lights, LED status descriptions: Indicator: Off The relay is switched off, Always indicate the relay is closed.LED: Shows LL is the sensor open, showing HH is out of range, the thermostat will be forced to close the relay, the display --- as high temperature protection.

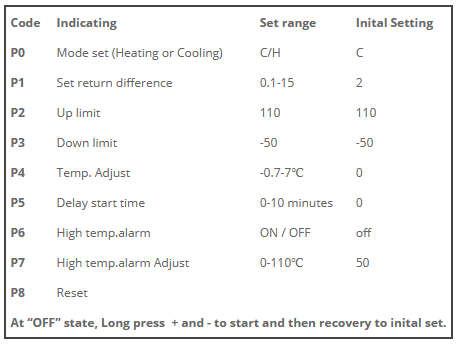

Parameter Function:Long press SET 5 seconds to enter the main menu settings, press the + - toggle P0 ... P8 long press SET or 10 seconds of no key activity confirmed their return to the controller
