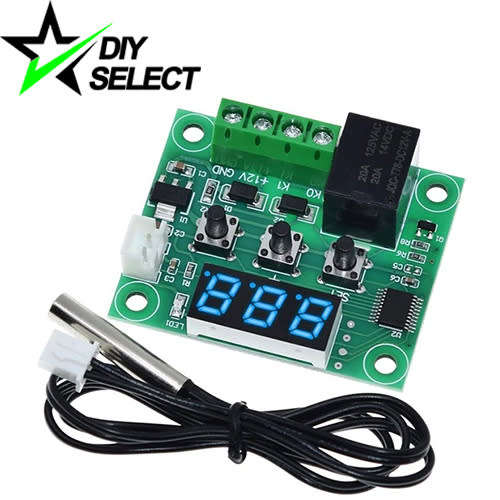

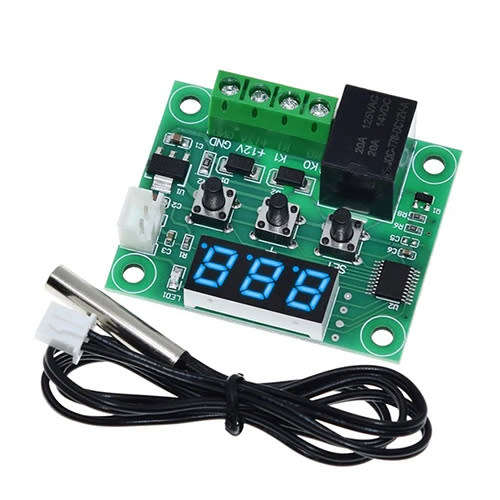

Name: Temperature Controller Thermostat W1209 12V DC Blue **LOCAL STOCK**
SKU: CNT351
Price: 70.00 ZAR
Availability: SoldOut

Temperature Controller Thermostat W1209 12V DC Blue **LOCAL STOCK**

New

22 were available

R70.00

Shipping

Free shipping is available from Diy Select - Cape Town for all orders above R2,000.00, using one of our trusted couriers.
Check my rate

The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.

The seller has indicated that they will usually have this item ready to ship within 2 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Diy Select - Cape Town8546

100.00 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

South Africa

Product code

CNT351

Bob Shop ID

596958759

Thermostat Temperature Controller DC 12V:

Free combined shipping for additional orders placed in our other store "LED SELECT" https://bidorbuy.co.za/seller/434337

Specifications:

Input Voltage: DC 12V
Temperature Control Range: -50 to 110 ° C
Measurement Accuracy: 0.1 ° C
Measuring Inputs: NTC (10K 0.5%) Sensor

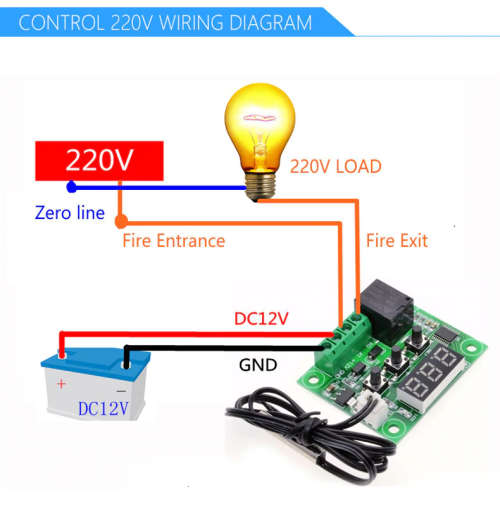

Output: 1 Channel relay output, capacity = 220V AC 5A, 12V DC 20A
Display Type: 0.28 " three digital display tube (Blue)
Probe Length: 500mm
Size: 48 x 40 x 14mm

Instructions:

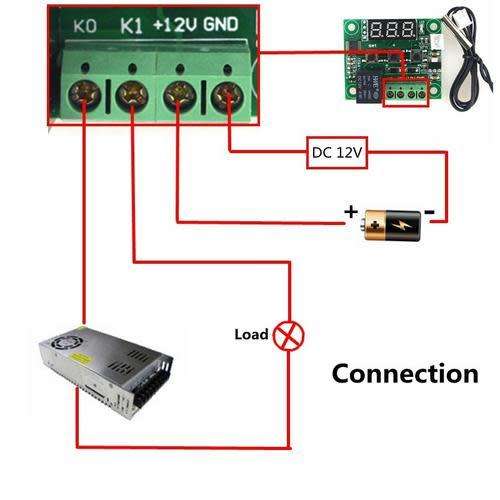

Connect the power supply to the controller. Press the + or - button, the display flashes showing the temperature setting, Press + - to set the desired temperature.
Parameter Function: Long press SET button for 5 seconds to enter the main menu settings, press the + - buttons to toggle between P0 to P6. Hold the SET button then press + or - button to change values.

Code         Code Description             Setting range         Factory setting
P0             Cooling /Heating                    C/H                         C
P1             Hysteresis setting                 0.5-15                      2
P2             Highest setting upper limit      110                        110
P3             Lowest setting upper limit       -50                        -50
P4             Temperature correction          -7-7                         0
P5             Delay start time                0-10 Minutes                0
P6             High temperature alarm        0-110                      OFF

Off state, long press + - boot to restore the factory settings
