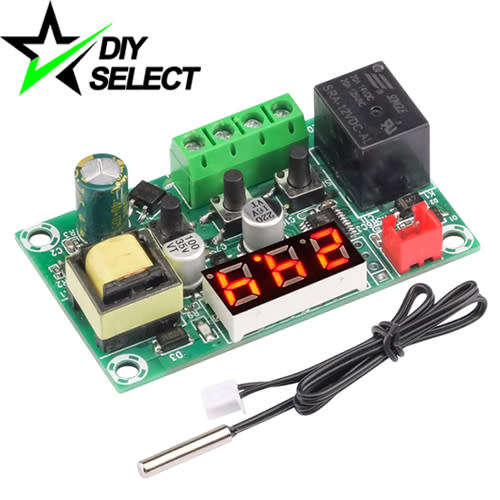

Temperature Controller Thermostat W1209 220V AC Red Display **LOCAL STOCK**

Thermostat Temperature Controller 220V AC:

Specifications:

Input Voltage: 220V AC
Temperature Control Range: -50 to 110 ° C
Measurement Accuracy: 0.1 ° C
Measuring Inputs: NTC10K/B3950 Sensor
Output: 1 Channel relay output, capacity = 220V AC 10A, 12V DC 20A
Display Type: 0.28 " three digital display tube (Red)
Probe Length: 300mm
Size: 61 x 36 x 15mm

Instructions:

Connect the power supply to the controller. Press the + or - button, the display flashes showing the temperature setting, Press + - to set the desired temperature.
Parameter Function: Long press SET button for 5 seconds to enter the main menu settings, press the + - buttons to toggle between P0 to P6. Hold the SET button then press + or - button to change values.

Code         Code Description             Setting range         Factory setting
P0             Cooling /Heating                    C/H                         C
P1             Hysteresis setting                 0.5-15                      2
P2             Highest setting upper limit      110                        110
P3             Lowest setting upper limit       -50                        -50
P4             Temperature correction          -7-7                         0
P5             Delay start time                0-10 Minutes                0
P6             High temperature alarm        0-110                      OFF

Off state, long press + - boot to restore the factory settings
