Name: Temperature Controller Thermostat W2809 Red/Blue 12V DC **LOCAL STOCK**
SKU: CNT361B
Price: 119.00 ZAR
Availability: SoldOut

Temperature Controller Thermostat W2809 Red/Blue 12V DC **LOCAL STOCK**

1 was available / new

R119.00

Shipping

Free shipping is available from Diy Select - Cape Town for all orders above R2,000.00, using one of our trusted couriers.
Check my rate

The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.

The seller has indicated that they will usually have this item ready to ship within 2 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Diy Select - Cape Town8469

100.00 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

South Africa

Product code

CNT361B

Bob Shop ID

635034799

Specifications:

Model: W1209WK / W2809
Input Power: 12V DC
Control Range: -50 to 110 Celsius
Output Load: 1 Way Relay; 220V AC 5A, 12V DC 20A
Environmental Requirements: -10 - 60 Deg C , Humidity 20% -85%
Refresh Rate: 0.5S
Display Type: Red/Blue 0.28" Three digital display tube
Size: 48 x 29 x 33mm
Probe Length: 300mm

Instructions:

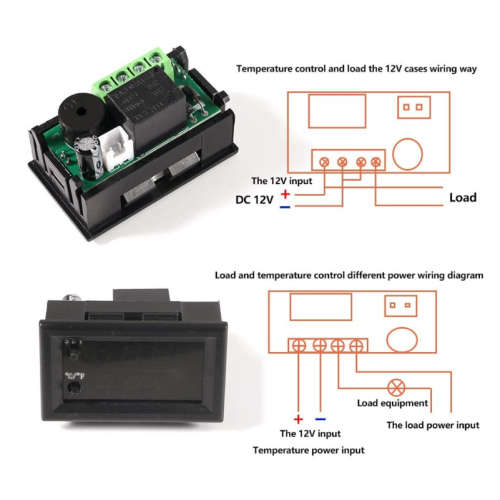

Connect the power supply and the load, Press the SET button once, the display will flash, Press + - to adjust temperature setting, wait 3 seconds for unit to stop flashing to save settings.

Parameter Function: Press and hold the SET button for 5 seconds to enter the main menu settings, press the + - to toggle between P0 and P8 settings. Press both buttons simultaneously to change each settings parameters and then press both again to save.

Code:         Code Description:           Setting range:      Factory setting:
P0               Cooling /Heating                      C/H                           C
P1               Hysteresis setting                   0.1-15                        2
P2               Highest setting upper limit          110                         110
P3               Lowest setting upper limit     -50                     -50
P4               Temperature correction            -10-15                      0
P5               Delay start time                    0-10 Minutes                0
P6               High temperature alarm            0-110                     OFF
P7               Celsius/Fahrenheit CS/FH    CS
P8           Factory reset                          ON-OFF               OFF
