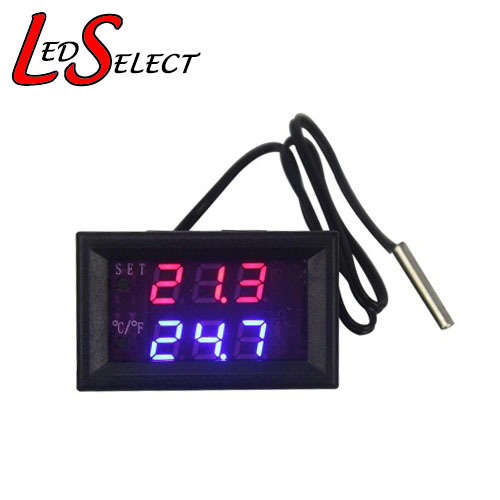

Temperature Controller Thermostat W2809 / W1209WK 12V DC 300mm Probe **LOCAL STOCK**

Thermostat Temperature Controller DC 12V:

Category: 1500312645 / 1510312645 - Controller Humidity / Temperature

Specifications:

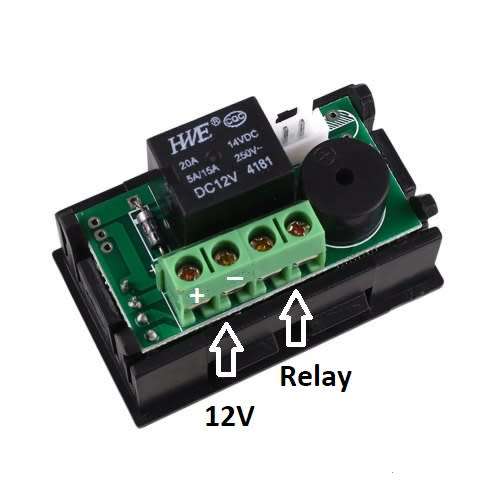

Input Power: DC 12V
Control Range: -50 to 110 Celsius
Measuring Inputs: NTC (10K 0.5%)
Output Range: 1 way 10A relay
Display Type: 0.28 " Three digital display tube

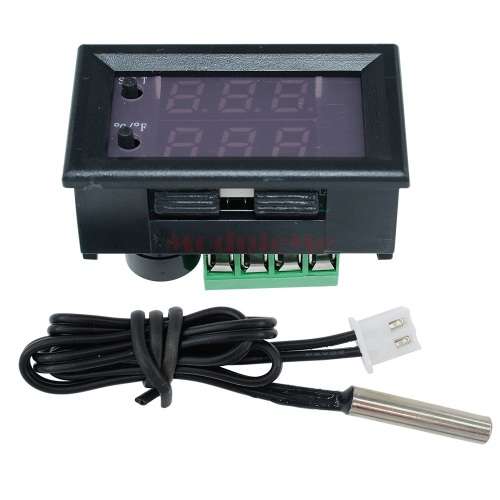

Probe Length: 300mm
Size: 48 x 29 x 33mm


Instructions:

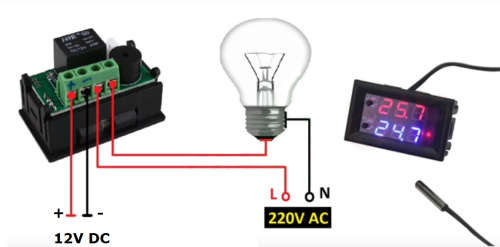

Connect the power supply and the load, Press the SET button once, the display will flash, Press + - to adjust temperature setting, wait 3 seconds for unit to stop flashing to save settings.

Parameter Function: Press and hold the SET button for 5 seconds to enter the main menu settings, press the + - to toggle between P0 and P8 settings. Press both buttons simultaneously to change each settings parameters and then press both again to save.


Code:         Code Description:           Setting range:      Factory setting:
P0               Cooling /Heating                        C/H                           C
P1               Hysteresis setting                     0.1-15                        2
P2               Highest setting upper limit          110                         110
P3               Lowest setting upper limit           -50                         -50
P4               Temperature correction            -10-15                        0
P5               Delay start time                      0-10 Minutes                0
P6               High temperature alarm            0-110                       OFF
P7               Celsius/Fahrenheit                   CS/FH                      CS
P8               Factory reset                           ON-OFF                    OFF
