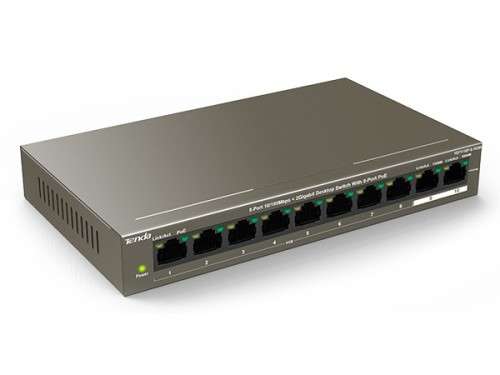

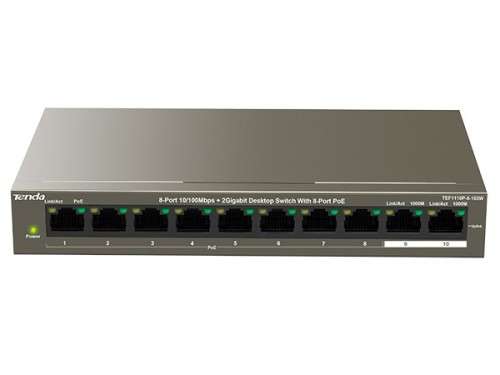

Tenda's TEF1110P-8-102W is a 8-Port10/100Mbps+2 Gigabit Desktop Switch with 8 PoE ports, 6KV Port Lightning Protection and is ideal for use in long distance transmission. It features 99W maximum PoE Output Power, up to 30W PoE power per PoE port.
Specifications:
Standard & Protocol: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE802.3ab, IEEE 802.3af, IEEE 802.3at
MTBF: ≥50,000 hours (about 5 years)
Indicator: Link/Act, PoE Status, Power, 1000M
Fixed Port: 8 x 10/100Base-TX RJ45 Ports (Data/Power)
Fixed Port: 2 x 10/100/1000Base-T RJ45 Port (Data)
Lightning Protection: 6KV
Wire-speed forwarding: Supported
Switching Capacity: 5.6 Gbit/s
MAC Address Table: 16K MAC
PoE supply management:
- Port 1 to Port 8 supports standard IEEE802.3at/af power( maximum power for each port is 30W)
- PoE power type is end-span (1245+, 3678- line pair)
- In full configuration¿<102W
- PoE Max Power Supply¿99W
Dimensions 177.5mm x 104mm x 26mm
Input Voltage AC¿100¿240V¿ 50/60Hz
Input Voltage DC¿51V /2.1A ¿Power Adapter ¿
Operating Temperature: 0¿~40¿
Storage Temperature: -40¿~70¿
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
MODEL | TEF1105P | TEF1109P | TEF1110P | TEF1210P | TEF1218P | TEF1226P | TEG1009P-EI | TEG3210P | TEG3224P |
Switch Ports | 4FE | 8FE | 8FE | 8FE | 16FE | 24FE | 8GE | 8GE | 24GE |
PoE Ports | 4af/at | 8af/at | 8af/at | 8af/at | 16af/at | 24af/at | 8af/at | 8af/at | 8af/at |
Uplink Ports | 1FE | 1GE | 2GE | 2GE/2SFP | 2GE/2SFP | 2GE/2SFP | 1GE | 2SFP | 4SFP |
Total PoE Budget | 58W | 58W | 99W | 123W | 230W | 370W | 99W | 115W | 370W |
Max PoE per port | 40W | 30W | 30W | 40W | 40W | 40W | 40W | 40W | 40W |
Rack Mountable | X | X | X | X | X | ||||
Smart Switch | X | X | X | X | X | ||||
PoE Extender | X | X | X | X | X | X | X | X |
