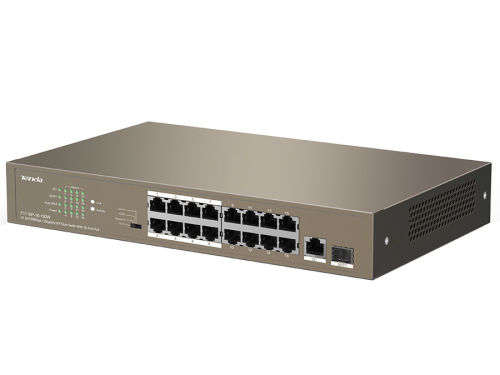

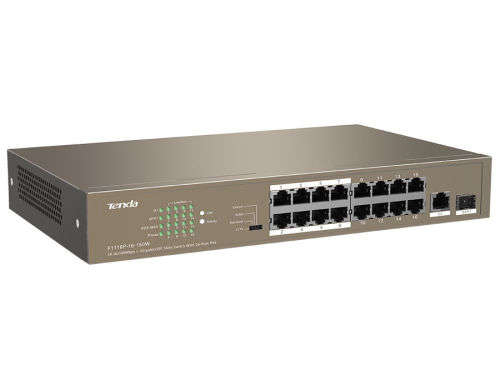

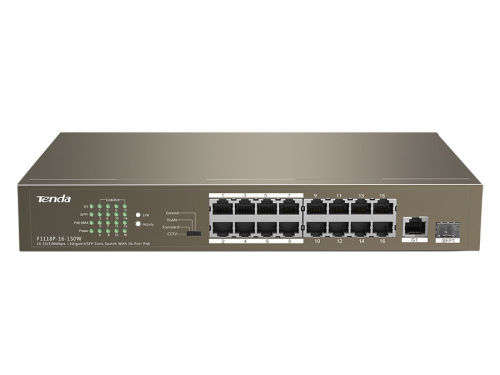

The Tenda's TEF1118P-16-150W is a PoE switch that offers 16x 10/100 Mbps Base-TX RJ45 ports, 1x 10/100/1000 Mbps Base-T RJ45 ports, and 1x 1000 Mbps Base-X SFP port. Ports 1-16 comply with the IEEE 802.3af standard (maximum PoE power output: 15.4 W) and 802.3at standard (maximum PoE power output: 30 W). The switch offers a maximum PoE power output of 135 W and can supply power to, and exchange data with, AP's, IP cameras, and IP phones supporting the 802.3af/at standard. It also provides simple management modes such as CCTV (QOS on ports 1-8), VLAN (Port Isolation) and Extender mode (250m PoE at 10mbps). The switch also provides 6KV lightning protection.
Specifications:
Standard & Protocol: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af
MTBF: 100,000 hours
Indicator
16 x Link/Act per device
1x G1 Link/Act per device
1x SFP Link/Act per device
1x PoE-MAX per device
1x Power per device
Interface
16x 10/100Base-TX ports (Data/Power)
1x 10/100/1000Base-T port (Data)
1x 1000Base-X SFP port
Lightning Protection: 6KV
Store & Forward: Yes
Exchange capacity: 7.2 Gbit/s
Packet Forwarding Rate: 5.36Mpps
MAC Address Table: 4K
PoE supply management: Port 1 to Port 16 support IEEE802.3at/af POE standard
PN pass-through: 1 2 4 5 +3 6 7 8 -
Input Power AC100-240V 50/60Hz
Power Consumption: In full configuration<150W
PoE Max Power Supply135W
Operating Temperature: 0~40
Storage Temperature: -40~70
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Dimensions: 294 x 178 x 44mm ( W x D x H )
