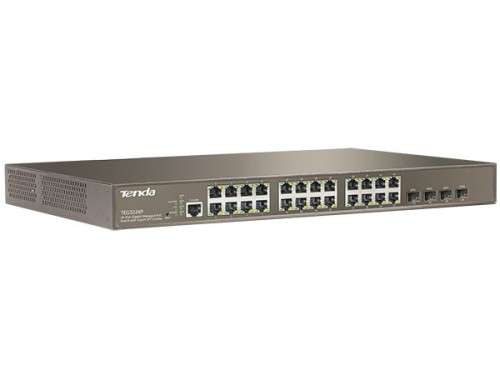

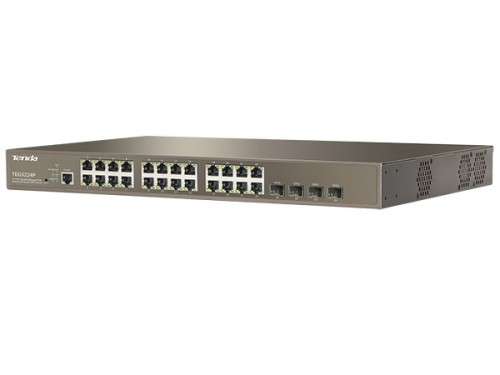

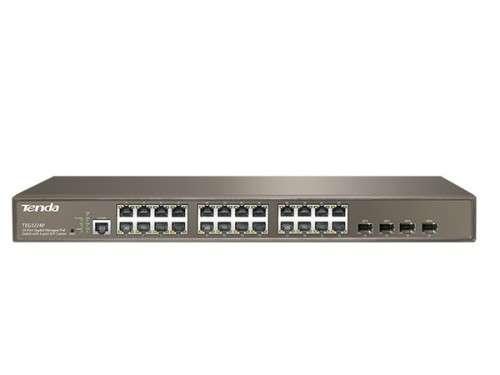

Tenda's TEG3224P is designed for building secure, smart wireless networks. This 24 port Gigabit switch provides 24 x 10/100/1000 auto-negotiation RJ-45 ports and 4 reusable Base-X SFP ports. Its RJ45 ports support both IEEE 802.3af (15.4W) and 802.3at (30 W) standards. In addition, it provides ARP attack defense, worm attack defense, IP+MAC+PORT+VLAN Bind, MAC filter and other safety settings via it's visual WEB interface. Based on it's ability for high performance access and security, it offers capable QoS and rich VLAN functionality as well as easy network administration and maintenance.
Specifications:
Standards & Protocol: IEEE 802.3,IEEE 802.3u,IEEE 802.3z,IEEE 802.3ab,IEEE 802.3x,IEEE 802.1D,IEEE 802.3af,IEEE 802.3at
Layer 2 switch: All ports support linear forward, Packet forwarding speed: 35.7Mpps
MTBF: ≥100 thousand hours
Store & Forward: Yes
Switch Fabric: 56Gbit/s
MAC Address Table: 8K MAC, Supports set port MAC address learning maximum number
Fixed Port: 24 10/100/1000Base-T ports (Data/PoE), 4 10/100/1000 Base-X SFP ports ( Combo)
Optional Module: SFP optical fiber module with single port
Power supply module: Supply 24 RJ-45 802.3af¿15.4W¿/12 RJ-45 802.3at¿30W), Power Pin Assignment: 1/2(+),3/6(-)
Input Voltage: AC¿176V~264V, 50/60Hz
Dimensions: 440 x 284 x 44 (W x D x H mm)
Weight: <5kg
Consumption: Power consumption¿<450W, PoE Power Budget¿370 Watts
Operating Temperature: 0¿45 Degree C
Operating Humidity: 10%¿95% (Non-condensing)
Port Trunking:
Supports LACP
Supports manual polymerization
12 groups of port trunk support¿up to 16 GE port per trunk group
PoE supply management:
PoE port setting and power priority supply setting
PoE over temperature protection
Smart graphical management and detection of PD equipment, (priority, port state, power allocation, PD equipment state)
Intelligent management power of PD equipment
Layer 2 ring network protocol:
Conforms to STP/RSTP/MSTP
Supports equipment to prevent the loop
VLAN:
Supports port-based VLAN¿4K¿,protocol-based VLAN Compliant with Voice VLAN, VLAN Mapping, VLAN
VPN¿QinQ)¿flexible QinQ
DHCP: DHCP Snooping, DHCP Relay/Client/Server
DHCP Snooping Option82/DHCP Relay Option82
Multicast:
Supports IGMP Snooping, multicast VLAN, IGMP V1/V2, PIM-SM/ PIM-DM/MSDP
Mirroring: N:1 port mirror, flow mirror, RSPAN¿Remote port mirror¿
ACL:
Supports L2 ~ L4 (Layer 4) packet filter function, supply source of based on MAC address, the destination MAC address, the source IP address, destination IP address, TCP/UDP port number and protocol type, VLAN and illegal frame filtering
QoS:
Support for the rate at which port to receive a message and send a message to limit the speed
Supports message to redirect, the function of the CAR
Supports 8 port output queue
Supports port queue scheduling (SP,WRR)
Supports port queue scheduling (SP,WRR)
Security:
User classification management and password protection
IEEE 802.1 X authentication
Centralized MAC address authentication
Protection of the ARP,IP source address intrusion detection
Supports SSH2.0, port isolation
Management:
XModem/FTP/TFTP load to upgrade
Supports command line interface (CLI), Telnet, the configurations of the Console port
Supports the SNMP v1 / v2, v3 and WEB network management
Supports RMON (Remote Monitoring) 1,2,3,9 group MIB
Supports system logs, hierarchic
Ports 21-24 and the SFP ports are all combo ports, meaning that if SFP 1 is used, then port 21 will be unusable. It is the same when the Ethernet port is used. The system prioritizes the SFP ports over the Ethernet.
