- Network standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
- LED Indicator: 1* Power,24* Link/Act
- Interfaces: 24*10/100/1000 Base-T Ethernet ports (Auto MDI/MDIX)
- Transmission media: Recommended CAT5/5e UTP or better
- Dimension: 294.0mmx178.0mmx44.0mm
- Material: Metal
- Level of protection: Lightning protection for uplink ports- 6KV, Lightning protection for power 6KV
- Switch capacity: 48Gbps
- Packet forwarding rate: 35.60Mpps
- Buffer: 2Mb
- Mounting: Desktop mounting support, Wall mounting support, Rack mounting support
- Functions: plug-and-play

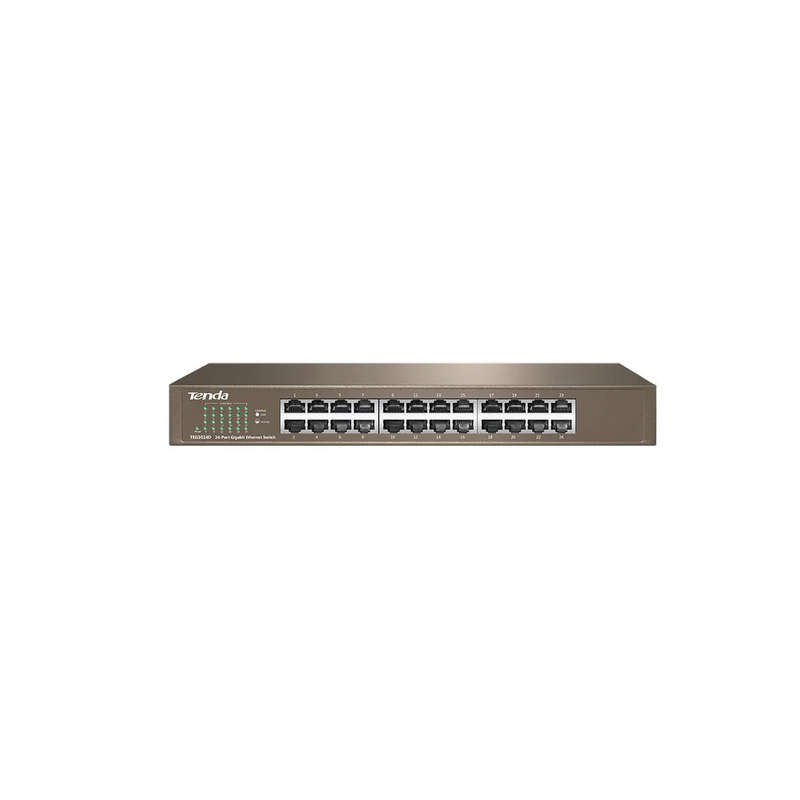

Tenda 24-port Gigabit Ethernet Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 8000 entries. Networking standards: IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
The TEG1016D and TEG1024D are a 16 and 24 port Gigabit switches respectively. They support auto MDI/MDIX, store-and-forward switching, and have an 8,000 MAC address table. The TEG1016D has a 32Gbps backplane bandwidth while the TEG1024D has a 48Gbps backplane bandwidth. They have compact 11" metal cases that are convenient to put on a desk or shelf for a small office network, but they are equally at home in a rack using the included 1U mounting kit.
Specification
Network standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
LED Indicator
1* Power,24* Link/Act
Interfaces
24*10/100/1000 Base-T Ethernet ports (Auto MDI/MDIX)
Transmission media
Recommended: CAT5/5e UTP or better
Fan quantity
N/A
Dimension
294.0mmx178.0mmx44.0mm
Material
Metal
Level of protection
Lightning protection for uplink ports: 6KV
Lightning protection for power: 6KV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV
Forwarding mode
Store-and-forward
Switch capacity
48Gbps
Packet forwarding rate
35.60Mpps
Buffer
2Mb
MAC address table
8K
Jombo frame
N/A
Power
Input: 100-240V AC 50/60Hz
Power consumption
Max:<12W
Mounting
Desktop mounting: support
Wall mounting: support
Rack mounting : support
Environment
Operating temperature: 0°C - 45âƒ
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%) RH, non-condensing
Storage humidity: (5% - 90%) RH, non-condensing
Certification
CE, FCC, RoHS
Software
Protocols
CDMA/CD
MAC address learning
Auto-Learning and Auto-Aging
Funtions
plug-and-play
