TEF1105P-4-63W is a Tenda PoE switch that offers 5 10/100 Mbps Base-TX RJ45 ports. Up to 250 meters long distance transmission, beyond hundred meters transfer limit. 6KV lightning protection PoE switch is the real monitoring private switch. Ports 1-4 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides 30W maximum PoE output a single port and 58W the whole device.
Product Overview

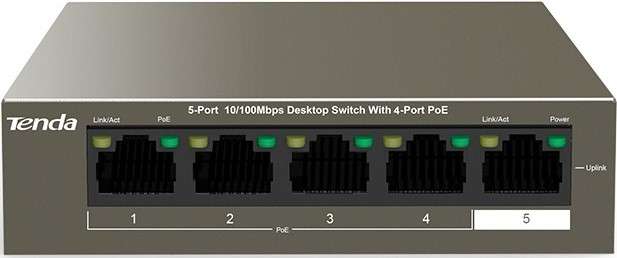

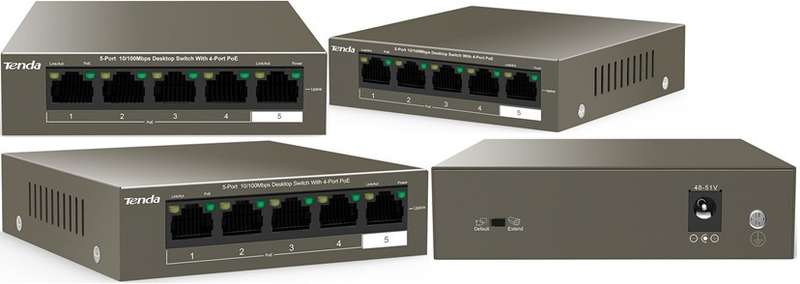

The Tenda TEF1105P-4-63W is a 5-port 10/100 Mbps desktop switch with 4 PoE+ ports, providing up to 30W power per port and a total PoE budget of 58W. It supports long-distance transmission up to 250 meters and complies with IEEE 802.3af/at standards for powering devices like IP cameras and access points. This unmanaged switch features plug-and-play installation, one-key VLAN isolation, and 6KV lightning protection for reliable and easy network expansion
Features
Supports desktop and wall-mounting
Support two modes of Standard,Extend
Single port output power 30W,maximum output power 58W
4×PoE+ 10/100Mbps RJ45 ports,1×10/100Mbps RJ45 port
Specifications
Product Code: TE-TEF1105P-4-63W
Description: Tenda 5-port 10/100Mbps Desktop Switch with 4-port PoE
Network standards: IEEE 802.3 IEEE 802.3uIEEE 802.3xIEEE 802.3afIEEE 802.3at
LED Indicator
5* Link/Ack LED indicators
1 * Power LED indicator
Interfaces
4*10/100 Base-TX Ethernet Ports(Data/Power)
1*10/100 Base-TX Ethernet Port(Data)
Transmission media: Recommended: CAT5/5e UTP or better
Dimension: 100.0mmx100.0mmx26.0mm
Level of protection
Lightning protection for ports: 6kV
Lightning protection for power: 6kV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV
Forwarding mode: Store-and-forward
Switch capacity: 1Gbps
Packet forwarding rate: 0.74Mpps
Buffer: 448K
MAC address table: 1K
PoE budget
Single port: AF: 15.4W, AT: 30W
Whole device: 58W
Input voltage
100-240V AC 50/60Hz
51V /1.25A DC(Power Adapter )
Mounting
Desktop mounting: support
Wall mounting: support
Rack mounting:non-support
Environment
Operating Temperature: 0~45
Storage Temperature: -40~70
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Certification: FCCCERoHS
