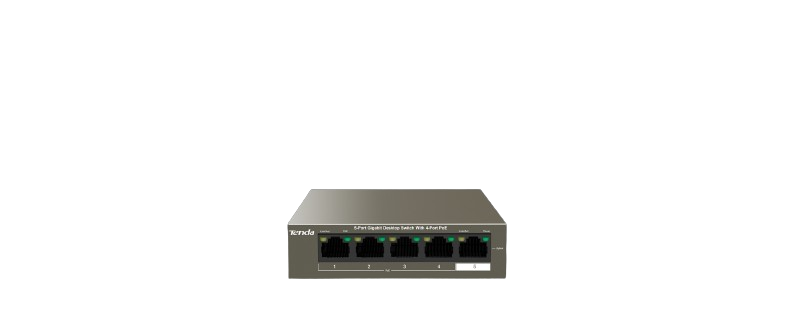

Tenda 5-Port Gigabit Desktop Switch With 4-Port PoE

6KV Port Lightning Protection | Maximum PoE Output Power 58W PoE power up to 30W for each PoE port

One-Key VLAN

If "VLAN mode" is enabled, Port 1-4 will be isolated respectively but can communicate with the port 5. Hardware DIP switch to isolate ports to prevent broadcast storm and defend against DHCP spoofing.

6KV lighting protection PoE switch is the real monitoring private switch

In real project, APs or cameras are usually installed in outdoor or a higher position, which also increases the camera and PoE switches the probability of lightning shock. The result is the individual equipment damaged, or lead to the whole local area network (LAN) paralysis. Tenda TEF11 series switches have professional lightning protection design - up to 6KV port and power supply thunder prevents, with two levels of protection design respectively, effectively restrain the power of lightning from cable, which is equivalent to give the entire network monitoring system with a security fence, The test standard is much higher than the national CE request. In thunderstorms weather, it can also provide monitoring network stable and reliable services and protect the images transmission normally.

58W PoE power supply

Ports 1-4 comply with the IEEE802.3af and IEEE802.3at power supply standards. The entire switch offers a maximum PoE power output of 58W, whereas each port offers a maximum PoE power output of 30 W. The ports can be used to supply power to and exchange data with APs and IP cameras.

TEG1105P-4-63W Details and Specifications:

1. The images and content on this page are for illustration only. The actual product appearance (including but not limited to design, color, size) and displayed content (including but not limited to background, UI, images) may vary slightly. Please refer to the physical product.
2. The data on this page are theoretical values obtained from Tenda's internal laboratory under specific test conditions. Actual performance may vary due to product variations, software versions, usage conditions, and environmental factors. Please refer to actual usage.
3. Due to real-time changes in product batches and supply factors, we may update and revise the text descriptions, image effects, etc., on this page in real-time to match the actual product performance, specifications, indices, and components. Any such modifications or adjustments will not be notified separately.
4. If any modifications or adjustments occur, we reserve the right to make them without prior notice.
