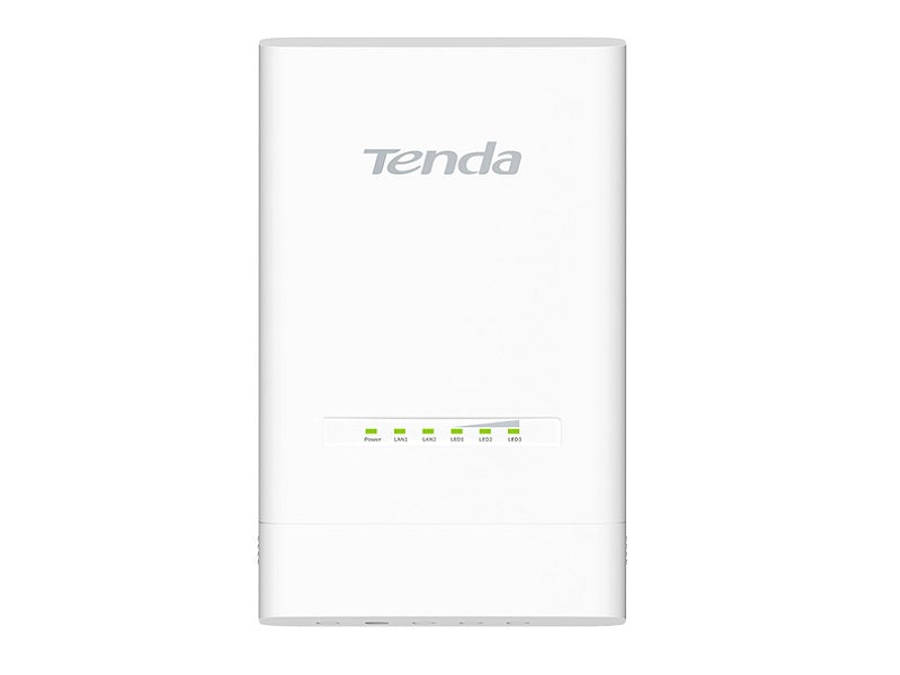

Tenda O4 5GHz Gigabit Outdoor CPE - 867Mbps 11AC, 12dBi, PtP Wireless Bridge (2-Pack)

O4V3.0 5GHz Outdoor CPE is designed to PtP&P2MP solutions for video surveillance transmission and wireless broadband access. Adopts of 11ac wireless technology and gigabit ethernet Port design, the maximum throughput for ptp connection can be up to 450Mbps. It features with 12dBi dual polarization directional antenna to provide an efficient way to pick up and maintain a stable long range connection. Application Scenarios PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance.

Key features

• Deployment Pole/Wall Mount
• Private TDMA Protocol TD-MAX
• Antenna Polarization Dual Polarization
• LED Indicator Power, LAN1, LAN2, LAN3, LED1, LED2
• Passive PoE Passive power over ethernet via PoE/LAN (+4, 5pins'a3`bb -7, 8pins ) up to 60 meters
• TDMA Support
• Enable/Disable Wireless Radio Support
• SSID Hidden Support
• Wireless Client isolation Support
• SSID Isolation Support
• Client Limitation For SSID Support
• Wireless Access Control Support
• Weak Signal Client Limitation Support
• WMM Capable Support
• APSD Capable Support
• Transparent Bridge Support
• VLAN Tagging for SSID Support
• DHCP Server Support
• Remote Web access Support
• Schedule Reboot Support
• Page Timeout Support
• Ping Watchdog Support
• Dyndns noip, dyndns.org
• Network Diagnoses Ping, Traceroute, Signal Scan
• Time and Date Setting Support
• Firmware upgrade Support
• Backup/Restore Configuration Support
• Username Managerment Support
• Managed By Controller PC Software -- CPE Assistant
• Default Login Username admin
• Default Login Password admin

Specifications

• 5km Outdoor CPE
• Model O4
• Dimension 193*109*61mm
• Frequency Range 5GHz
• Compliant Standards IEEE 802.11a/n/ac
• Maximum Wireless Rate 867Mbps
• Interfaces 2*10/100/1000Mbps Ethernet Port
• Antennas Gain 12dBi
• Antenna Beamwidth Horizontal: 30`b0 Vertical: 30`b0 Elevation: 30`b0
• Reset Button 1
• Power Consumption 6.5W
• Waterproof Level IP65
• Power Method PoE 802.3af/at
• 12V 1A Passive PoE
• 12V 1A DC
• Lightning Protection 6000V
• Voltage range: 9-24V DC
• Reception Sensitivity 11a 6Mbps -90dBm'b11.5dBm
• 11n MCS0 HT20 -70dBm'b11.5dBm
• 11n MCS7 HT20 -70dBm'b11.5dBm
• 11ac MCS9 HT80 -59dBm'b11.5dBm
• Channel Bandwidth 20/40/80MHz
• Transmission Power Adjustable power by 1dBm
• Wireless Security WPA-PSK, WPA2-PSK, Mix WPA/WPA2-PSK
• VPN Pass-Through PPTP, L2TP
• Operation Temperature -30 ~ 60
• Storage Temperature -40 ~ 70
• Operating Humidity 10%~90% non-condensing
• Storage Humidity 10%~90% non-condensing
• Default login IP 192.168.2.1/192.168.2.2
