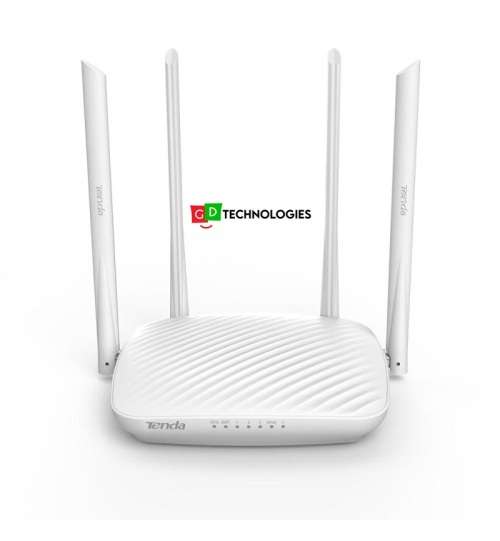

TENDA 600MBPS WIFI ROUTER

SPECIFICATIONS:

Hardware

Standard & Protocol: IEEE802.3, IEEE802.3u,IEEE802.3ab

Interfaces:
1*10/100Mbps WAN port
3*10/100Mbps LAN ports

Antenna: 4*6dBi external antennas

Button: 1*WPS/RST,1*WIFI

Power:
Input: AC 100-240V~50/60Hz 0.6A
Output: DC 9V0.6A

Dimension: 171.3mm x 171.3mm x 36.4mm

LED Indicator: SYS, WiFi, 1, 2, 3, WAN, T

Wireless

Wireless Standard: IEEE 802.11b/g/n 2.4GHz

Data Rate: 2.4GHz: Up to 600Mbps

Frequency: 2.4GHz

Transmission Power: CE:<20dBm

Basic Features:
WiFi On/Off
Transmission Power: high, low

Wireless Security: WPA/WPA2, WPA-PSK/WPA2-PSK

Software

Internet Connection Type:
PPPoE, Dynamic IP, Static IP
PPPoE(Russia), PPTP(Russia), L2TP(Russia)

Operating Mode:
Wireless Router Mode
Universal Repeater Mode
WISP Mode
AP Mode

DHCP Server:
DHCP Server
Client List
DHCP Reservation

Virtual Server:
Port Forwarding
DMZ Host
UPnP

Security:
Client Filter
Parental Control(support black list and white list)
Remote Web Management

Firewall:
Forbid UDP flood attack
Forbid TCP flood attack
ICMP attack
Forbid WAN PING from the internet

DDNS:
no-IP,DynDNS,Oray

VPN:
IPsec pass-through
PPTP pass-through
L2TP pass-through

Special Features:
PPPoE Username/password Clone
Smart WiFi Schedule

Others:
Bandwidth Control
MAC Clone
System Log
Backup

Others

Temperature:
Operating Temperature: 0? ~ 40?
Storage Temperature: -40? ~ 70?.

Humidity:
Operating Humidity:10% ~ 90% RH non-condensing
Storage Humidity: 5% ~ 90%RH non-condensing.

Default Settings: Default Access: 192.168.0.1

Certification: CE/FCC/RoHS

EIRP Power (Max): 2.400-2.4835GHz:19.65dBm (EIRP)

Package Contents:
Wireless Router*1
Power Adapter *1
Install Guide*1
Ethernet Cable*1
