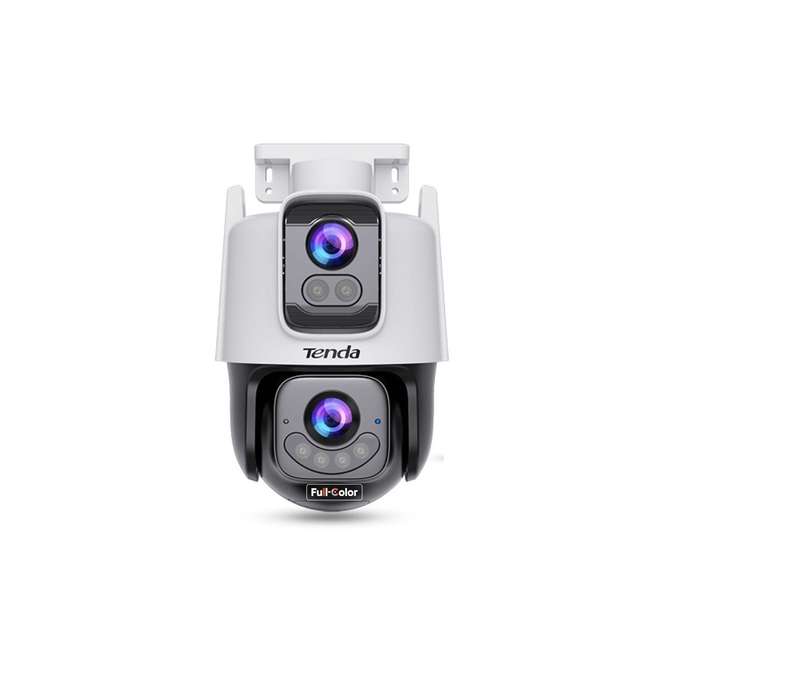

The CH9-WCA Dual-Lens Linkage Outdoor Wi-Fi Pan/Tilt Camera is a high-performance security camera featuring 6MP resolution video (3MP + 3MP), 360 visual coverage, full-color night vision, full-duplex two-way audio, and advanced detection capabilities including human detection, vehicle detection, line-crossing detection, and intrusion detection.
It also includes dual-lens smart linkage and sound and light alarm functions.
This camera is ideal for outdoor security applications such as courtyards, farms, and shops.
Users can access video footage via a wireless or wired Internet connection.
Features:
6MP Dual-Lens & 360 Coverage: Delivers high-resolution video with no blind spots.
Full-Color Night Vision & Smart Detection: Clear images in low light with human/vehicle tracking.
Two-Way Audio & Alarm System: Real-time communication with sound and light deterrents.
Wi-Fi & Ethernet Connectivity: Flexible installation with local storage up to 512GB.
Weatherproof & Durable: IP65-rated for outdoor use in all conditions.
Easy Setup & Remote Access: Supports multiple mounting options and smartphone control.
Specifications:
Camera Specifications
Image Sensor
1/3" Progressive Scan CMOS sensor
Day and Night
ICR type
Bracket Angle Adjustment
Pan: 0 to 260
Lens & Aperture
Fixed Lens: 4mm, F1.6
PT Lens: 6mm, F1.6
Field of View (FOV)
Fixed Lens:
Horizontal: 82.3
Vertical: 44.7
Diagonal: 97.4
PT Lens:
Horizontal: 51.8
Vertical: 28.2
Diagonal: 60.4
Supplementary Light
6 IR Lights, 6 Spotlights
Distance: Up to 30m / 100ft (depending on environment)
IR Wavelength: 850nm
Night Vision Modes
Smart Mode
Full Color Mode
Black & White Mode
Video & Encoding
Video Encoding Format
Fixed Lens: H.265, H.264
PT Lens: H.265, H.264
Resolution
Main Stream:
Fixed Lens: 2304 × 1296, 1920 × 1080, 1280 × 720
PT Lens: 2304 × 1296, 1920 × 1080, 1280 × 720
Sub Stream:
Fixed Lens: 640 × 360
PT Lens: 640 × 360
Frame Rate
Fixed Lens: 1-25fps (2304 × 1296: 1-18fps), Default: 18fps
PT Lens: 1-25fps (2304 × 1296: 1-18fps), Default: 18fps
Bit Rate
Fixed Lens: 512kbps - 4096kbps
PT Lens: 512kbps - 4096kbps
Bit Rate Control
Fixed Lens: CBR, VBR
PT Lens: CBR, VBR
Audio
Encoding Format
G.711A, G.711U, AAC
Sampling Rate
8 kHz
Communication
Two-way Audio
Voice Input
DIY Audio
3 Customized Audios
Audio Input & Output
Input: Built-in MIC
Output: Built-in Speaker
Image & Privacy
Image Enhancement
DWDR, BLC, HLC, 3D DNR
Privacy Mask
4 Areas
Networking & Protocols
Ethernet Port
1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port
ONVIF Support
Yes
Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, ARP, WebSockets
Web Browser Support
Plug-in free live view: Chrome, Edge, Opera
Pan & Tilt
Movement Range
Pan: 0 - 355
Tilt: 0 - 90
Preset & Patrol
6 Preset Positions
Panoramic Patrol & Preset Patrol
Wireless Connectivity
Antenna
Internal antenna
Wireless Standard
IEEE 802.11 b/g/n/ax
Transmission Rate
Up to 287Mbps
Channel Width
20/40 MHz
Modulation
DSSS, OFDM, OFDMA
Frequency Band
2.4GHz: 2412MHz - 2472MHz (CH1 - CH13)
Transmit Power
2.4GHz: <0.1W (EIRP)
Security & Smart Features
Security
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPA3-SAE
Smart Detection
Motion detection, human detection, vehicle detection, line crossing detection, intrusion detection (both fixed and PT lens supported)
Smart Linkage
Sound & light alert
Dual-lens linkage tracking
Storage & Reset
Storage
Built-in Micro SD Card Slot, up to 512GB
Reset Button
Yes
Indicators & Power
LED Indicator
Dual Color (Red & Blue)
Power
12V DC, 1A, Ø5.5mm & Ø2.1mm power plug
Physical & Environmental
Material
Plastic
Dimensions
Product: 203mm x 122mm x 62mm (8.0 × 4.8 × 2.4 in)
Package: 240mm x 145mm x 193mm (9.4 × 5.7 × 7.6 in)
Weight
Product: 527g (1.16lb)
With Package: 802g (1.77lb)
Protection Level
IP65
Installation Methods
Wall Mounting, Ceiling Mounting, Pole Mounting
Compliance & Environmental Conditions
Certifications
CE, RoHS, FCC, RCM, UKCA
Temperature
Operating: -30 C ~ 60 C (-22 F ~ 140 F)
Storage: -40 C ~ 70 C (-40 F ~ 158 F)
Humidity
Operating: 10% ~ 95% RH (non-condensing)
Storage: 3% ~ 95% RH (non-condensing)
What's in the box
1 x Camera
1 x Power Adapter (cord length: 3m)
1 x Installation Template
1 x Mounting Bracket
1 x Mounting Accessories Kit
1 x Waterproof Kit
1 x Quick Installation Guide
