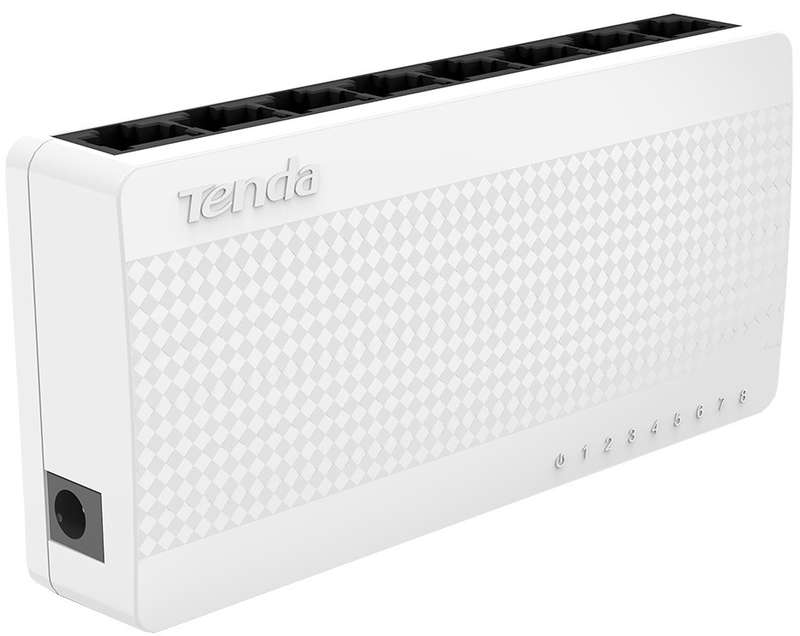

Tenda 8-port Ethernet Switch S108 is a desktop switch specially designed for families, offices, dormitories etc.8* 10/100 M auto-negotiation ports with full duplex rate up to 200Mbps bring blazing fast Internet access. Plug-and -play design makes installation easy in no time. Whether you are a tech-savvy enthusiast or a first-time user, S108 is very easy and intuitive to setup without time-consuming operations
Product Overview
The Tenda 8-port Ethernet Switch S108 is a compact and energy-efficient desktop switch featuring 8 auto-negotiation 10/100 Mbps RJ45 ports with full duplex, ensuring fast and stable internet access. It supports plug-and-play installation with no configuration required, along with MAC address auto-learning and aging for reliable performance. Designed for versatile use, the S108 supports both desktop and wall mounting, making it ideal for home, office, or dormitory networks with broad device compatibility.
Features
-Desktop mounting & Wall mounting
-Equipped with plastic shell,Mini and fashionable design
-8x10/100Mbps RJ-45 ports
Specifications
-Product Code: TE-S108
-Description: Tenda 8-port Ethernet Switch
-Network standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
-LED Indicator: 1* Power, 8* Link/Act
-Interfaces: 8*10/100 Base-TX Ethernet ports (Auto MDI/MDIX)
Transmission media
-Recommended: CAT5/5e UTP or better
-Dimension: 124.0mmx59.0mmx23.1mm
-Material: Plastic
Level of protection ESD:
-Air discharge: plus or minus 8kV
-Contact discharge: plus or minus 6kV
-Forwarding mode: Store-and-forward
-Switch capacity: 1.6Gbps
-Packet forwarding rate: 1.19Mpps
-Buffer: 448K
-MAC address table: 1K
Power
-Input: 100-240V AC 50/60Hz
-Output: 5.0V 0.6A ( External Power Adapter )
-Power consumption: Max:<2.15W
Mounting
-Desktop mounting: support
-Wall mounting: support
-Rack mounting:non-support
Environment
-Operating temperature: 0 deg C - 45 degC
-Storage temperature: -40 deg C - 70 deg C
-Operating humidity: (10% - 90%) RH, non-condensing
-Storage humidity: (5% - 90%) RH, non-condensing
-Certification: CE, FCC, RoHS
