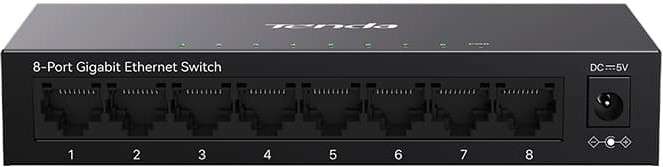

Tenda 8-port Gigabit Desktop Switch - is a high-performance 8-port full Gigabit Ethernet switch designed for Tenda's high-speed cascading scenarios for small and medium-sized surveillance, small and medium-sized business-es. Designed with a mini steel shell, it does not take up space and has a strong heat dissipation. Provides 8*10/100/1000 Mbps auto-negotiation ports, which increases transmission rate by 10 times, improves large file forwarding rate, and effectively solves problems such as video jams and picture loss in high-definition surveillance environments.
Product Overview
The Tenda compact 8-port Gigabit Ethernet switch supports IEEE 802.3 standards with a 16 Gbps switching capacity and 12 Mpps forwarding rate, ensuring efficient and reliable network performance. Designed with a durable metal casing, it supports both desktop and wall mounting while consuming less than 3W of power for energy-efficient operation. Ideal for small office and home networks, it features power and link/activity LEDs for easy status monitoring and complies with FCC, CE, and RoHS certifications.
Features
Desktop mounting & Wall mounting
Durable metal casing and exquisite design
8 Gigabit Auto-Negotiation RJ45 ports
Specifications
Product Code: TE-TEG1008M
Description: Tenda 8-port Gigabit Desktop Switch
Network standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
LED Indicator
Power
Link/Act
Interfaces: (8) 1GE RJ45 ports
Transmission media: Recommended: CAT5/5e UTP or better
Dimensions: 140mm*66mm*25mm
Material: Metal
Level of protection
Port: N/A
Power：N/A
Forwarding mode: Store-and-forward
Switch capacity: 16Gbps
Forwarding rate: 12Mpps
Power method: 100-240V AC 50/60Hz
Power consumption: Max:<3W
Mounting
Desktop mounting: support
Wall mounting: support
Environment
Operating Temperature: 0~45
Storage Temperature: -40~70
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Certifications: FCC, CE, RoHS
