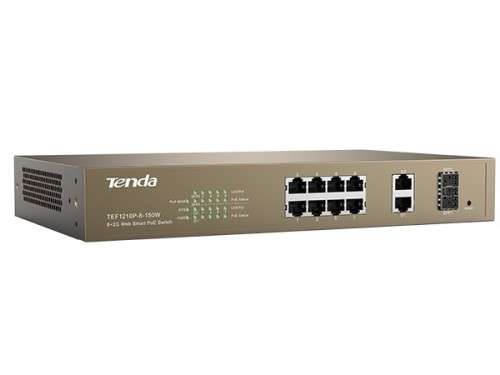

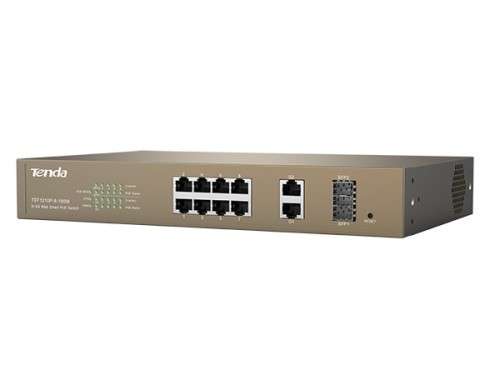

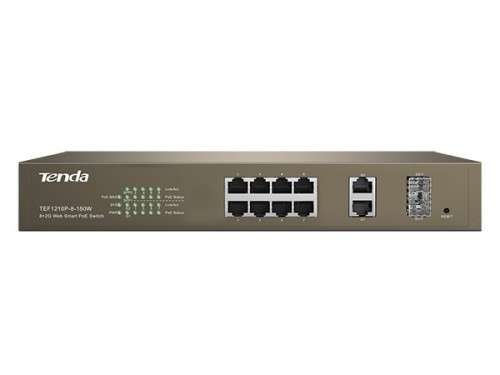

Tenda's TEF1210P is a 8-Port 10/100Mbps and 2-Port Gigabit TP/SFP Combo Web Smart PoE Switch. It has eight (8) 10/100Base-TX RJ45 ports, two (2) 10/100/1000Base-T RJ45 ports and two (2) 1000Base-X SFP combos.
Ports 1-8 support IEEE 802.3af PoE (15.4W) and IEEE 802.3at PoE+ (30W) powering. Total PoE output is 123W. When using in conjunction with Cat 5 twisted pair cable, the device will provide data and power for APs, IP cameras, IP phones, and other PoE devices. When enabling the switches "Extend Mode", the transmission distance of data and power can be as long as 250 meters.
It also supports QVLAN, link aggregation, QoS, MAC binding, etc.
Specifications:
Standards & Protocol: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1D, IEEE 802.1W, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3at
Switching capacity: 5.6 Gbps
Throughput: 4.22Mpps
Interfaces
8 x 10/100Mbps RJ45 Ports (Data/PoE)
2 x 10/100/1000Mbps RJ45 Ports (Data)
2 x 100/1000Mbps SFP Slot (Data)
Auto Negotiation/Auto MDI/MDIX
Port lightning protection: ≥6KV
Wire-speed forwarding: Supported
Forwarding mode: Store-forward and cut-through
Mac Address Table: 4K
PoE Supply: Port 1 - 16 support standard IEEE802.3at/af
Power: Maximum power per port is 38W
PoE power type: End-span (12+, 36- and 45+, 78- line pair)
Input Voltage AC¿100-240V~ 50/60Hz
Power consumption: in full configuration¿<150W, Power Supply¿123W
Operating Temperature: 0¿~40¿
Storage Temperature: -40¿~70¿
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Software
Overheating protection of the PoE module
PD equipment detection
Supports up to 18 VLAN IDs Port VLAN
Supports up to 31 VLAN IDs 802.1Q VLAN
Security: MAC-Port Binding
Link aggregation: Static Trunk Supports 3 groups of 4-Port trunk support
STP: STP/RSTP
Port Mirroring N: 1 port mirroring
QOS: 802.1p and DSCP priority re-marking, Flow control, Flexible queue scheduling algorithm can be set based on port and queue, supports SP, WRR
| MODEL | TEF1105P | TEF1109P | TEF1110P | TEF1210P | TEF1218P | TEF1226P | TEG1009P-EI | TEG3210P | TEG3224P |
| Switch Ports | 4FE | 8FE | 8FE | 8FE | 16FE | 24FE | 8GE | 8GE | 24GE |
| PoE Ports | 4af/at | 8af/at | 8af/at | 8af/at | 16af/at | 24af/at | 8af/at | 8af/at | 8af/at |
| Uplink Ports | 1FE | 1GE | 2GE | 2GE/2SFP | 2GE/2SFP | 2GE/2SFP | 1GE | 2SFP | 4SFP |
| Total PoE Budget | 58W | 58W | 99W | 123W | 230W | 370W | 99W | 115W | 370W |
| Max PoE per port | 40W | 30W | 30W | 40W | 40W | 40W | 40W | 40W | 40W |
| Rack Mountable | X | X | X | X | X | ||||
| Smart Switch | X | X | X | X | X | ||||
| PoE Extender | X | X | X | X | X | X | X | X |
