- 8 Gigabit PoE+ ports that provide up to 30W per port for powering PoE devices like IP cameras, wireless access points, and VoIP phones
- Total PoE power budget of 102W to support multiple high-powered PoE devices simultaneously
- Supports IEEE 802.3af/at PoE standards for compatibility with a wide range of PoE devices
- Fanless design for silent operation
- Compact and sturdy metal housing for reliable performance
- Plug-and-play installation with no configuration required
- Auto-MDIX and auto-negotiation capabilities for easy connectivity
- Supports MAC address auto-learning and auto-aging for efficient switching
- Supports IEEE 802.3x flow control for reliable data transmission
- Backed by a 3-year warranty for peace of mind
Unmatched Transmission Distance
Experience seamless data transmission over an impressive distance of up to 250 meters using standard cables. This advanced extension technology offers a cost-effective alternative to traditional extenders and optical fibers.
Superior Lightning Protection
Engineered with 6 kV lightning protection for the uplink port, the TEF1109P-8-102W switch safeguards your network against thunderstorms, ensuring unparalleled stability and reliability.
Key Features of TEF1109P-8-102W:
Effortless VLAN Setup
Activate VLAN Mode to isolate ports 1 to 8 from each other, mitigating broadcast storms and enhancing both LAN security and data transmission efficiency.
High-Definition Video Streaming
With a robust 1024KB packet buffer, this switch guarantees smooth streaming for up to eight 500W HD IP cameras simultaneously, delivering crystal-clear video without interruptions.
Smart Power Management
Equipped with an intelligent power management chip and a professional control algorithm, the switch accurately calculates output power. When the receiving equipment's power exceeds the switch's rated 92W, low-priority ports automatically power off, preventing overload and extending the equipment's lifespan.

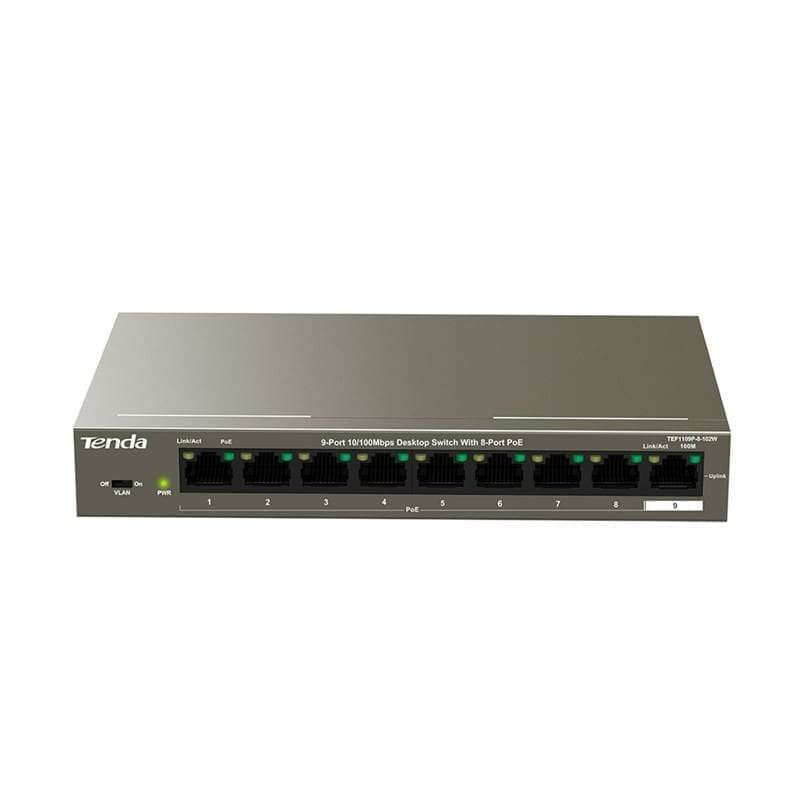

Upgrade Your Network with TEF1109P-8-102W
Optimize your network with the TEF1109P-8-102W PoE Switch, designed for enhanced performance, security, and durability. Perfect for professional setups requiring reliable and high-capacity data transmission.
| Specification | Value |
|---|
| Model | TEF1109P-8-102W |
| Input Voltage | 100-240V AC |
| Output Power | 102W |
| Output Voltage | 12V DC |
| Output Current | 8.5A |
| Efficiency | 85% |
| Protection | Over Voltage Protection, Short Circuit Protection, Over Temperature Protection |
| Dimensions | 150mm x 75mm x 35mm |
| Weight | 1.5kg |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 80°C |
| Certifications | CE, UL, RoHS |
| Warranty | 3 Years |
