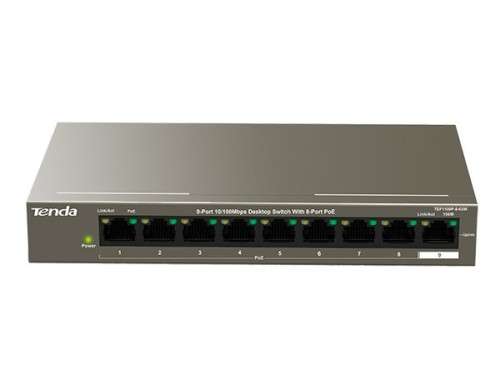

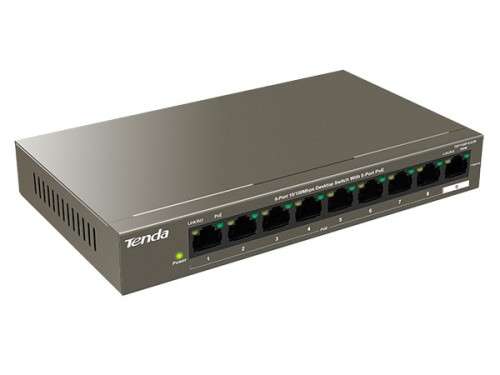

Tenda 9 Port Fast Ethernet Switch with 8 Port PoE | TEF1109P-8-63W

Please check stock availability before placing order

Tenda's TEF1109P-8-63W with 6KV lightning protection, enables transmission distance of up to 250 meters. With ports 1-8 support IEEE 802.3at, and IEEE 802.3af, it provides 30W maximum PoE output per single port and 58W in total for the device.

Specifications:

Standard & Protocol: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE802.3ab, IEEE 802.3af, IEEE 802.3at
MTBF: ≥50,000 hours (about 5 years)
Indicator: Link/Act, PoE Status, Power, 100M
Fixed Port: 8x 10/100Base-TX RJ45 Ports (Data/Power)
Fixed Port: 1x 10/100Base-TX RJ45 Port (Data)
Lightning Protection: 6KV
Wire-speed forwarding: Supported Switching Capacity: 1.8 Gbit/s
MAC Address Table: 4K MAC
PoE supply management
- Ports 1 to 8 support standard IEEE802.3at/af power (maximum power for each port is 30W)¿PoE power type is end-span (1245+, 3678- line pair) in full configuration¿<63W
- PoE Max Power Supply¿58W
Input Voltage AC¿100¿240V¿ 50/60Hz
Input Voltage DC¿51V /1.25A ¿Power Adapter ¿
Operating Temperature: 0¿~40¿
Storage Temperature: -40¿~70¿
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Dimensions: 177.5mm x 104mm x 26mm (W × D × H)
