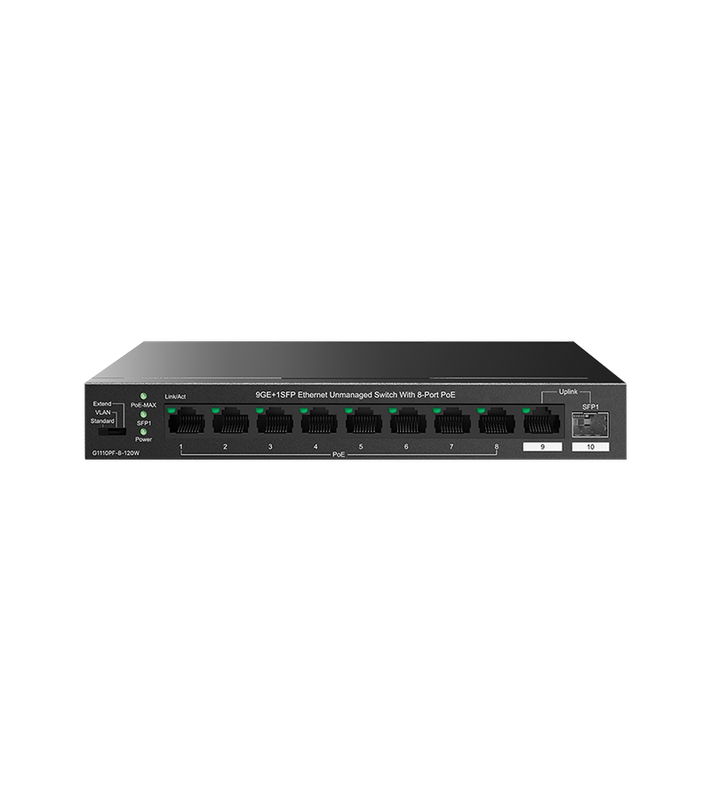

Tenda 9GE And 1SFP Ethernet Switch With 8-Port PoE

The Tenda TEG1110PF-8-120W is an unmanaged 9-port Gigabit Ethernet switch designed for small to medium-sized networks requiring reliable PoE connectivity. With eight 10/100/1000 Mbps PoE ports compliant with IEEE 802.3af/at standards, it delivers up to 30W per port and a total PoE power budget of 92W, making it ideal for powering devices such as IP cameras, wireless access points, and VoIP phones. The switch features a three-mode toggle function:
Standard Mode: All ports can communicate with each other.

VLAN Mode: Ports 18 are isolated from each other but can communicate with port 9 and the SFP port, reducing broadcast storms.

Extend Mode: Ports 18 operate at 10 Mbps and can transmit up to 250 meters, ideal for long-distance deployments
Its 6KV lightning protection ensures robust operation in challenging environments.

Key Features

• 8 PoE Ports: Eight 10/100/1000 Mbps RJ45 ports with IEEE 802.3af/at compliance, delivering up to 30W per port.

• High PoE Power Budget: Total PoE power output of 92W, suitable for multiple PoE-enabled devices.

• Three Operating Modes: Standard, VLAN, and Extend modes for flexible network deployment.

• 6KV Lightning Protection: Protects the switch from power surges and lightning strikes.
  Plug-and-Play: No configuration required; simplifies installation and deployment.

Technical Specifications

• Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af/at

• Interfaces: 8 × 10/100/1000 Mbps RJ45 PoE ports, 1 × 10/100/1000 Mbps RJ45
• uplink port, 1 × 1G SFP port

• Transmission Media: CAT5/5e UTP or better

• MAC Address Table: 4K entries

• Switching Capacity: 20 Gbps

• Forwarding Mode: Store-and-forward

• Packet Buffer Memory: 2M

• PoE Budget: Single port: AF: 15.4W, AT: 30W; Total device: 92W
• Power Consumption: 120W

• Lightning Protection: 6KV for ports, 6KV for power inputs

• Power Supply: Input: AC 100240V~50/60Hz; Output: DC 51V?2.0A (Power Adapter)

• Dimensions: 177.5 mm × 104.0 mm × 26.0 mm

• Mounting Options: Desktop or wall-mountable

• Operating Temperature: 0°C to 45°C

• Storage Temperature: -40°C to 70°C

• Operating Humidity: 10% to 90% RH non-condensing

• Storage Humidity: 5% to 90% RH non-condensing
