Extend Your Home Network with Ultrafast Wi-Fi 6

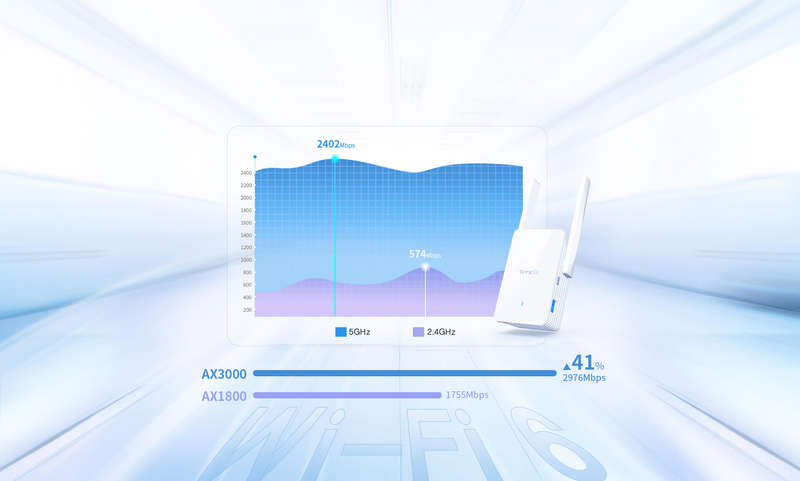

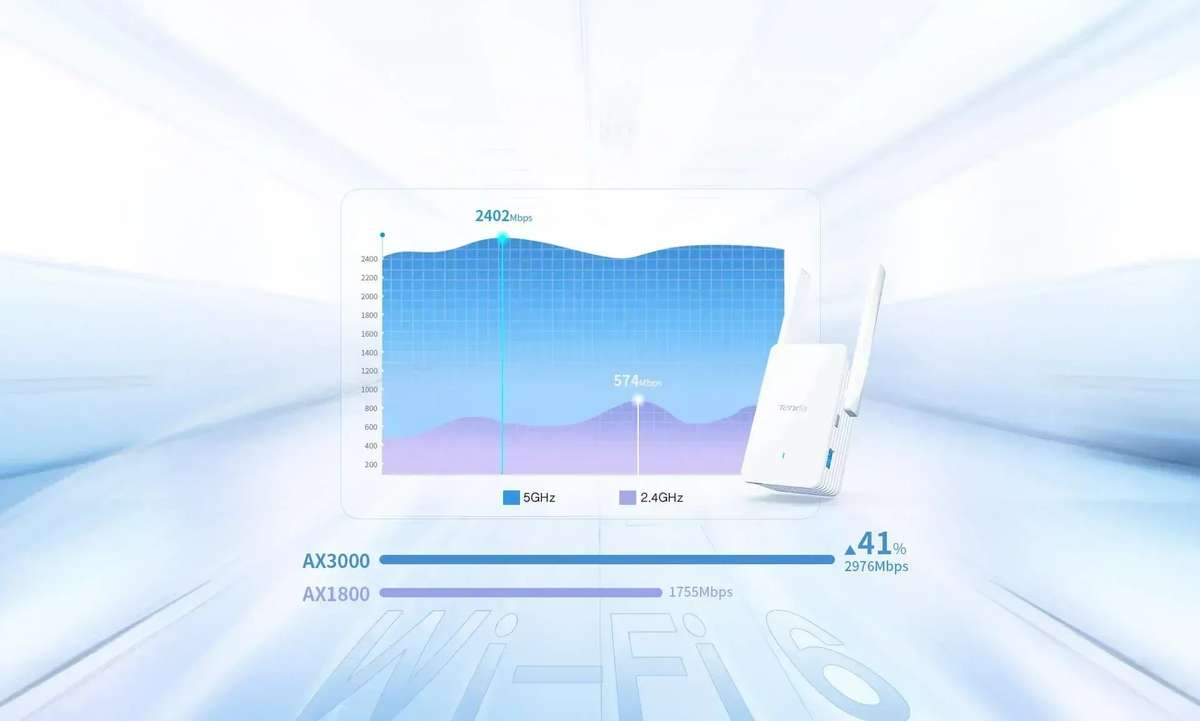

Ultra-Speed With AX3000 Wi-Fi 6
A33 supports 160MHz bandwidth for dramatically faster wireless connections. With a total networking speed of about 2976Mbps.

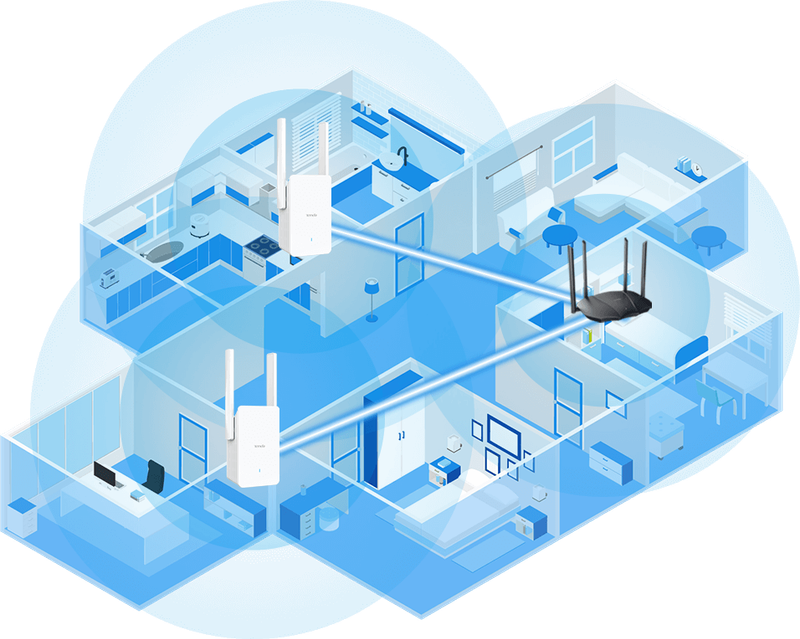

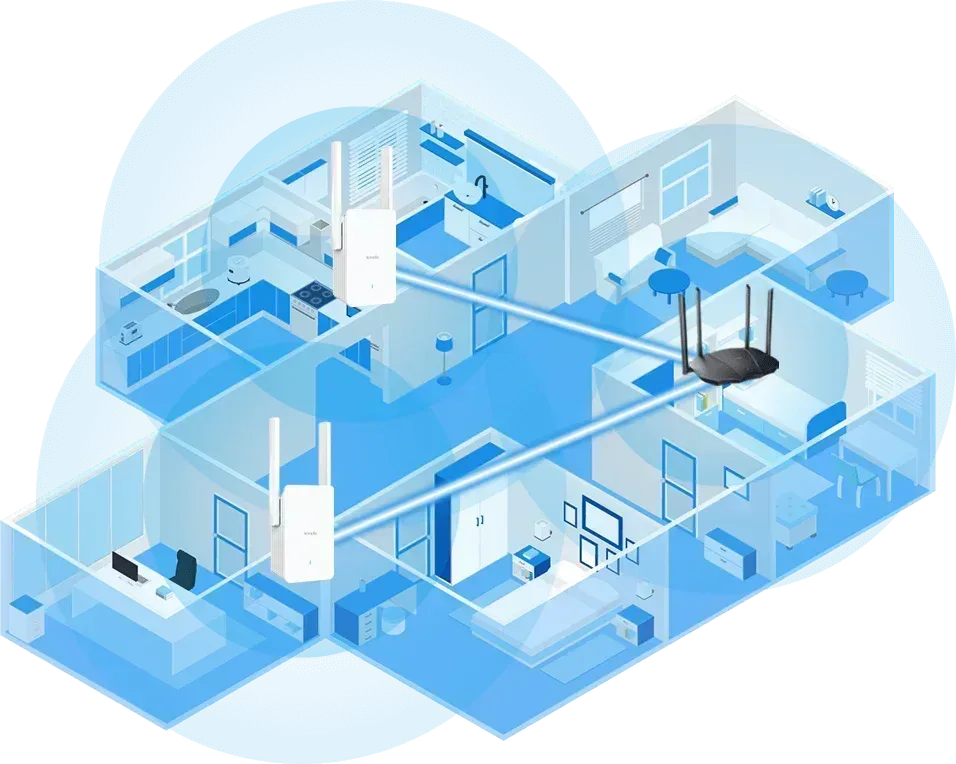

Extending Wi-Fi Without Dead Zone
2 x 5dBi external dual-band antennas to expand wireless network, efficiently delivering superspeed and seamless connectivity to every corner of your home.

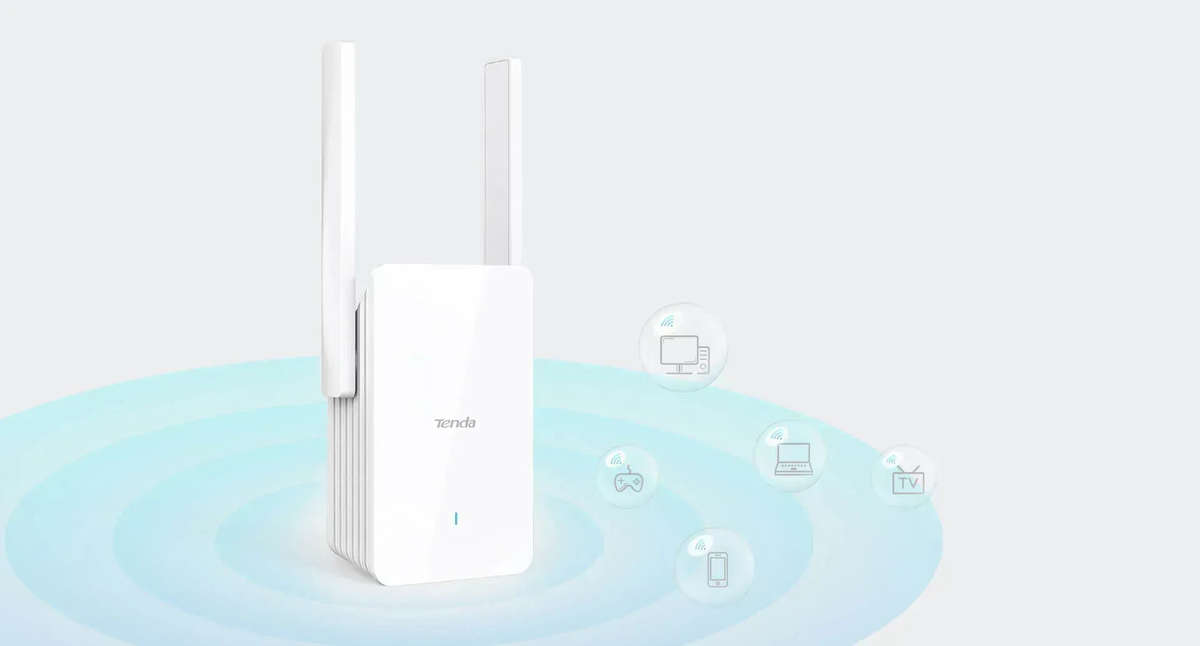

More Devices, Low latency
Improving the network utilization rate with MU-MIMO and supports simultaneous communication with 25+ wireless terminals.
Easy to Setup
Enjoy high-speed Wi-Fi where you want it by simply plugging the A33 Extender into the wall plug.
Flexible Backhaul Connection
A33 not only supports Wi-Fi extending mode, but also establishes Ethernet backhaul with on-wall Ethernet sockets to create a wired connection between A33 and router.
Network Bridge with Smart LED Indicator
Find the best point for Wi-Fi bridge then improve the quality of signal extension with smart LED indicators.
Hardware Interfaces
1x10/100/1000Mbps RJ45
Antenna Type
2 x 5dBi dual-band antennas
Buttons
1 x WPS Button
1 x Reset Button
LED Indicator
1 x System LED
Power Supply
12V1A, built-in
Power Consumption
11W (max power consumption)
Dimension
123x72x47.5mm(L x W x H)
Wireless Standard
IEEE802.11b,IEEE 802.11g, IEEE 802.11n, IEEE 802.11a,IEEE 802.11ac, IEEE802.11ax
Frequency
5GHz (11ax)
2.4GHz
Data Rate
5GHz: Up to 2402Mbps
2.4GHz: Up to 574Mbps
RSSI
2.4 GHz
11b-1M:-97dBm
11g-54M:-76dBm
11n-20M-MCS7:-74dBm
11n-40M-MCS7:-72dBm
5 GHz:
11a-6M:-95dBm
11n-20M-MCS7:-74dBm
11n-40M-MCS7:-72dBm
11ac-80M-MCS9:-63dBm
Transmission Power
<20dBm (EIRP)
Wireless Modes
Repeater Mode , Access Point Mode
Wireless Security
Default encryption mode: Mix WPA-PSK/WPA2-PSK/WPA3
WPA algorithm: TKIP

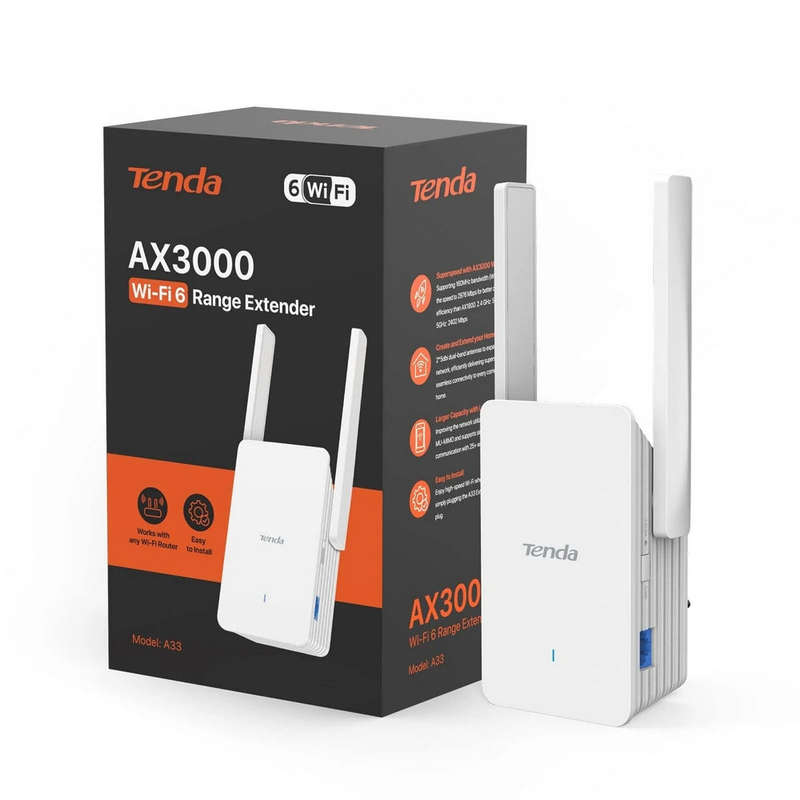

What's in the box
1 x AX3000 Wi-Fi 6 Range Extender
1 x Quick Installation Guide
