Description

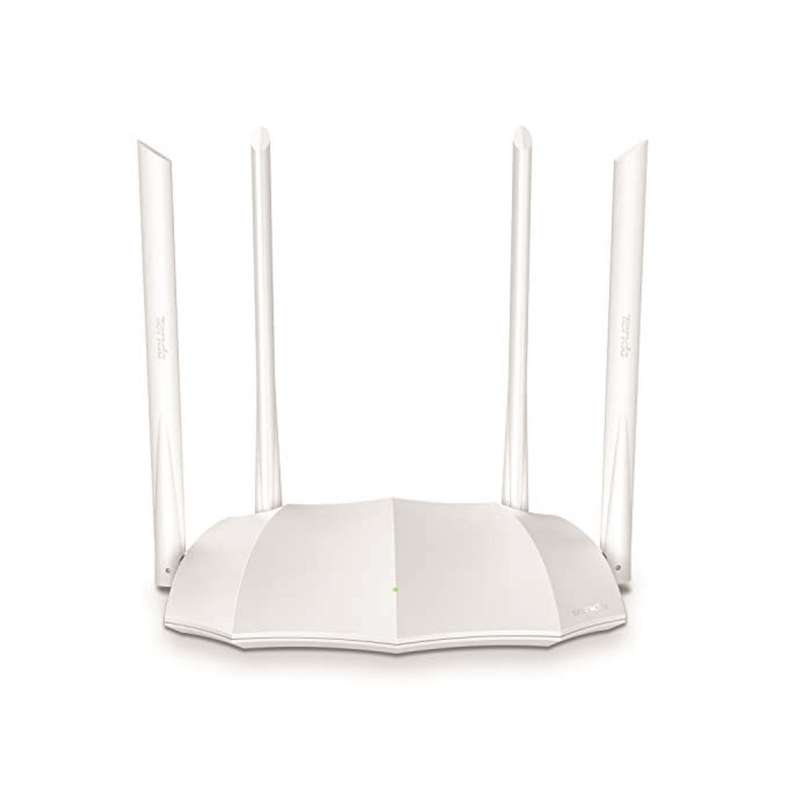

Tenda AC5 AC1200 Smart Dual Band Router
Product description Tenda AC5V3.0
AC5 is an AC1200 dual band WiFi router, designed for medium-sized apartment with a 100Mbps fiber access. It provides WiFi speed up to 1167 Mbps (5GHz: 867Mbps and 2.4GHz: 300Mbps). Adopted the integrated dual-band technology, combining 2.4GHz and 5GHz signals under one WiFi name. The faster band would be allocated to your devices automatically by our dynamic optimization system. Meanwhile, featured with 4*6dBi high-gain antennas and equipped with a 28nm high performance CPU, it brings a better internet experience. AC5 supports IPv6 protocol, it can reduce the data transmission time and minimize the lag. Furthermore, the remote management function by the Tenda WiFi App provides the easiest way to manage AC5.
Specifications:
Standard&Protocol:
— IEEE802.3?IEEE802.3u?IEEE802.3ab
Interface:
— 110/100Mbps WAN port
— 310/100Mbps LAN ports
— Antenna: 46dBi external high-gain antennas
— Button: 1WPS/Reset button
Power:
— Input?AC 100-240V—50/60Hz
— Output?DC 9V 1A
— LED indicator: 1LED
— Dimension: 200x127x33.6mm(LW*H)
Wireless Standards:
— IEEE 802.11ac/a/n @5GHz
— IEEE 802.11b/g/n @2.4GHz
Data Rate:
— 2.4GHz: 300Mbps
— 5GHz: 867: Mbps
Frequency:
— 2.400 — 2.4835 GHz
— 5.150 — 5.250 GHz
Wireless Security:
— WPA-PSK/WPA2-PSK, WPA/WPA2
— Wireless Security : Enable /Disable
Internet Connection Type:
— PPPoE, Dynamic IP, Static IP
— Support automatic access detection
— Supports broadband account automatic transfer
Operating Mode:
— Wireless Router Mode
— AP Mode
— Universal Repeater mode
— WISP Mode
DHCP:
— DHCP Server
— DHCP Client List
— DHCP Reservation
Virtual Server:
— Port Forwaring
— DMZ Host
— UPnP
Security:
— Client Filter?supports black list and white list?
— Parental Control?supports black list and white list?
— Remote Web Management
— Firewall: Forbid WAN PING from internet
— DDNS: Support Dyn: DNS, 88ip
Other features:
— Support IPv6
— Broadband management
— MAC address clone
— Static Routing
— System Log
— Backup & Restore configurations
— Firmware upgrade from local
Temperature:
— Operating Temperature: 0? ~ 40?
— Storage Temperature: -40? ~ 70?.
Humidity:
— Operating Humidity:10% ~ 90% RH non-condensing
— Storage Humidity: 5% ~ 90%RH non-condensing.
— Default Settings: Default Access: tendawifi.com or http://192.168.0.1
— Certification: CE?RoHS?FCC?CCC?SRRC?
EIRP Power (Max.):
— 2.400 — 2.4835 GHz?19.85 dBm (EIRP)
— 5.150 — 5.250 GHz?22.96dBm (EIRP)
What's in the box
1 x Wireless Router
1 x Ethernet Cable
1 x Power Adapter
1 x Installation Guide
