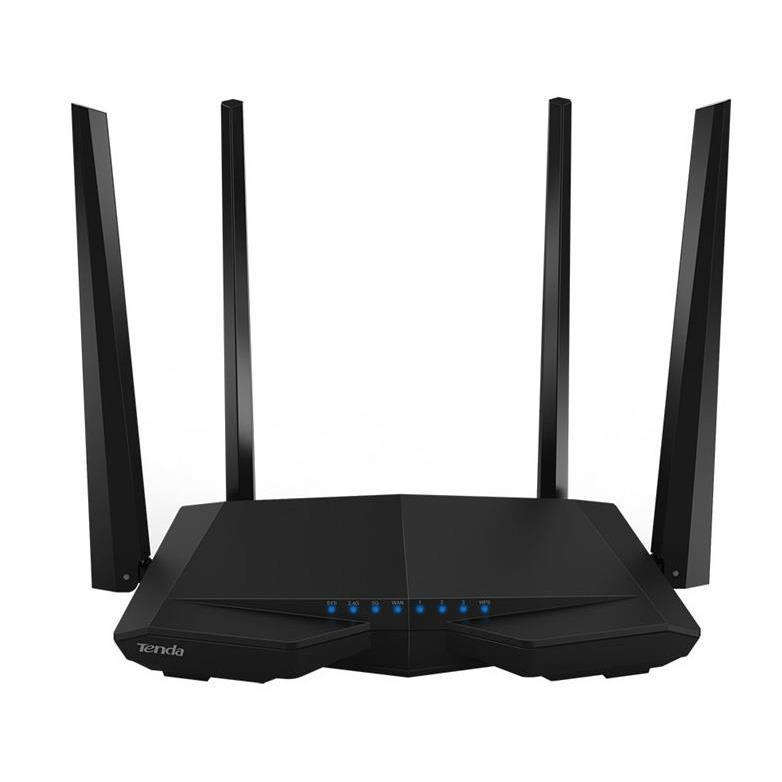

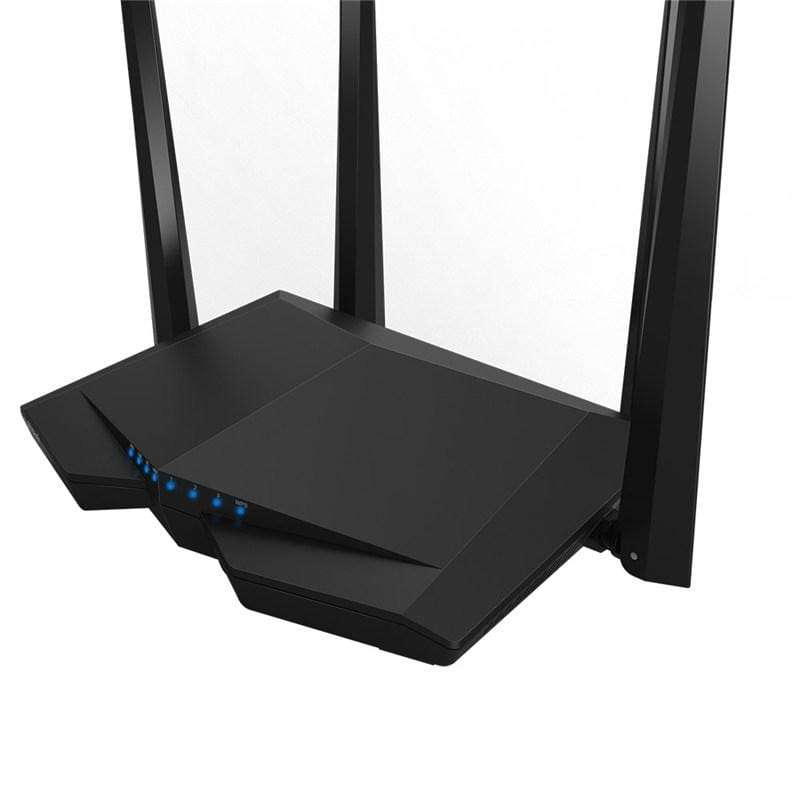

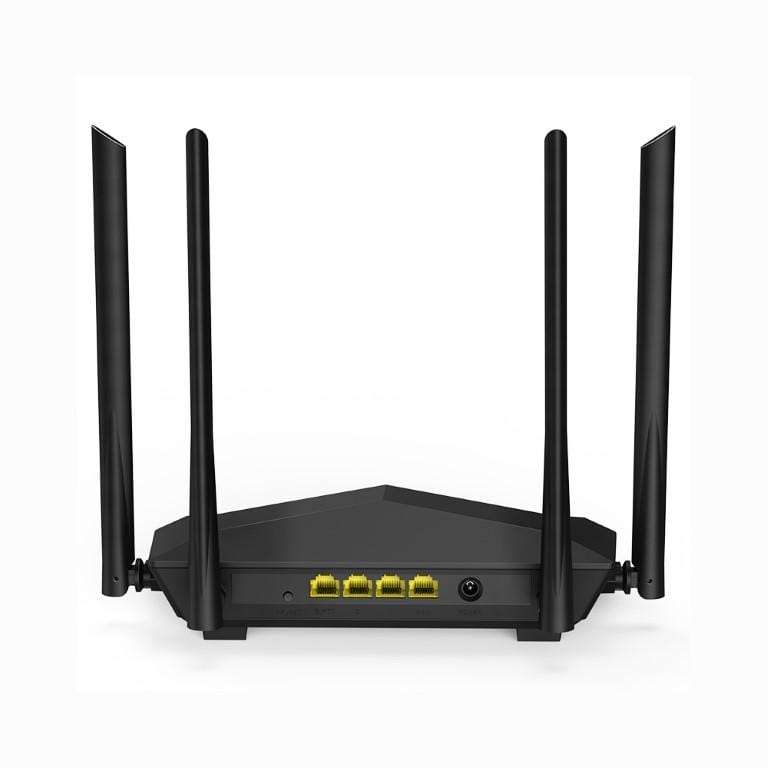

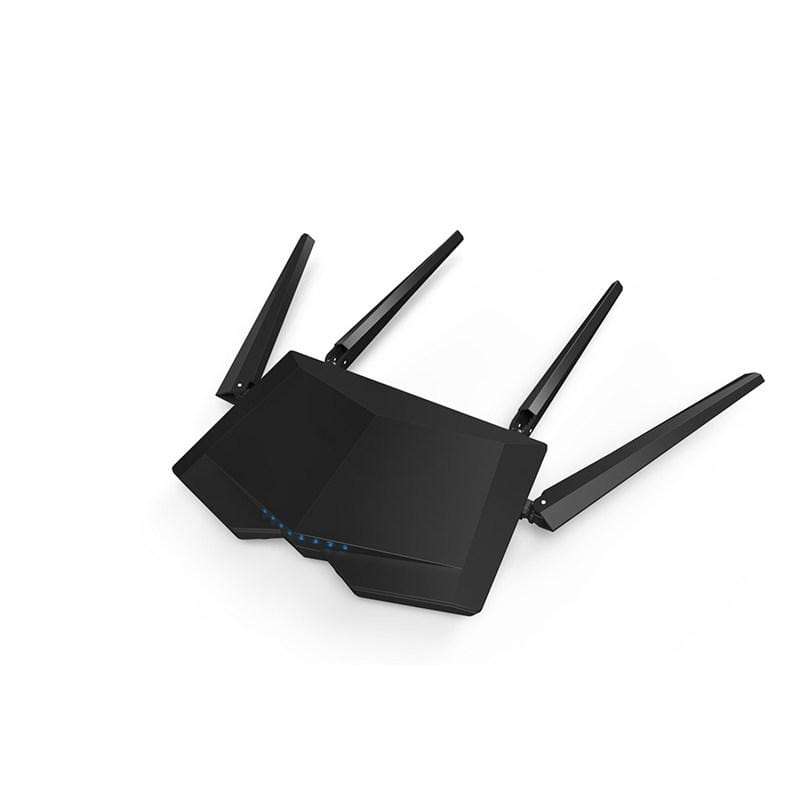

AC6 is a Smart Dual-band WiFi Router with strong signal and stable performance. It supports 5th generation Wi-Fi standard 802.11ac and the concurent dual-band speed is up to 1167Mbps. 900MHz CPU from Broadcom offers fast & stable performance. AC6 has 2x through-wall ability than normal routers with its independent power amplifiers, beamforming+ Intelligent technology and 4x 5dBi HG antennas. You can enjoy lag-free gaming and uninterrupted video streaming anytime anywhere. Additionally, AC6 supports smart power saving technology, App remote management, creates a low-power consumption and smart eco-friendly life for your whole family.
Specification
Standard&Protocol
IEEE802.3, IEEE802.3u
Interfaces
1*10/100Mbps WAN port
3*10/100Mbps LAN ports
Antenna
4*5dBi external antennas
Button
1*WiFi on/off, 1* Reset/WPS button
Power
Input：100-240V50/60Hz, 0.2A
Output：DC 9V1A
Dimension
220mm*141.5mm*49mm(L*W*H)
LED Indicator
SYS*1,WAN*1, LAN*1, 2.4G*1, 5G*1,WPS*1
Wireless
Wireless Standard
IEEE 802.11ac/a/n @5GHz
IEEE 802.11b/g/n @2.4GHz
Data Rate
5GHz: 867Mbps
2.4GHz: 300Mbps
Frequency
Simultaneous dual band 2.4 & 5GHz
Transmission Power
CE:
<20dBm(2.4G)
<23dBm(5G)
FCC:
<30dBm
Basic Features
SSID Broadcast: Enable/Disable
Transmission Power: high, medium, low
Beamforming
MU-MIMO
Wireless Security
WPA-PSK/WPA2-PSK, WPA/WPA2
Wireless Security: Enable/Disable
WPS(WiFi Protected Set-up) fast encryption
Software
Internet Connection Type
PPPoE, Dynamic IP, Static IP
PPPoE(Russia), PPTP(Russia), L2TP(Russia)
Operating Mode
Wireless Router Mode
Universal Repeater Mode
WISP Mode
DHCP Server
Wireless Router Mode
Universal Repeater Mode
WISP Mode
Virtual Server
Port Forwarding
DMZ Host
UPnP
Security
Client Filter
Parental Control(support black list and white list)
Remote Web Management
Firewall
Forbid UDP flood attack
Forbid TCP flood attack
Forbid flood attack
Forbid WAN PING from internet
DDNS
Support DynDNS, Oray.com, 88ip
VPN
IPsec pass through
PPTP pass through
L2TP pass through
PPTP client
L2TP client
Special Features
PPPoE Username/password Clone
Smart WiFi Schedule
Smart Power Saving
Smart LED on/off
Tenda Cloud
Tenda App
Others
Bandwidth Control
Guest Network
IPTV
MAC Clone
System Log
Backup & Restore configurations
Firmware upgrade online
Firmware upgradeable via browser
