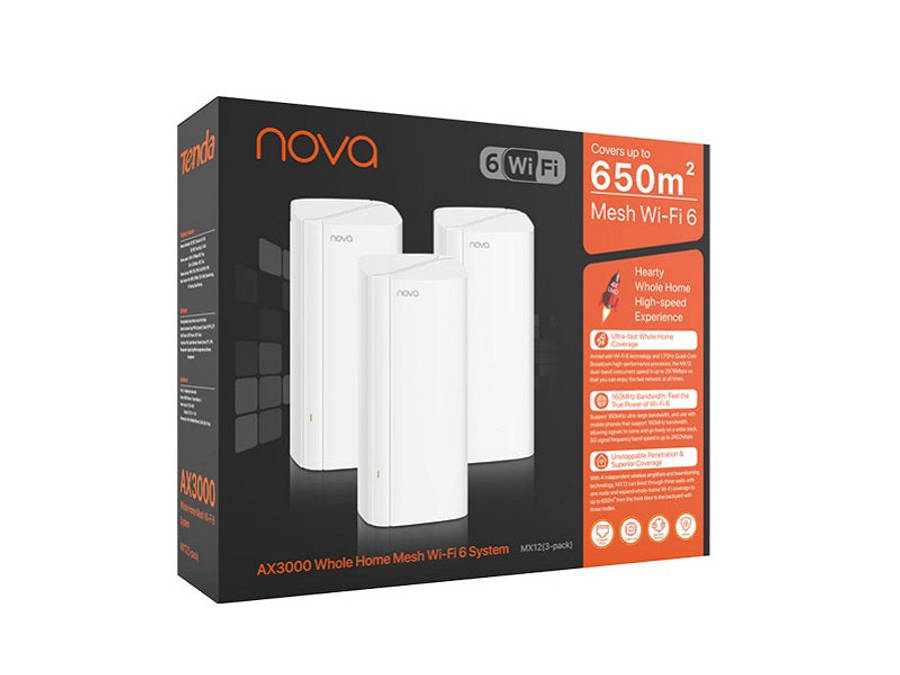

Tenda Nova MX12 AX3000 Whole Home Mesh Wi-Fi 6 System - 3-Pack, Gigabit, 650m2

The Nova MX12 is an AX3000 Whole Home Mesh Wi-Fi 6 System. MX12 delivers solid Wi-Fi coverage for up to 7,000 ft'b2 with four independent wireless amplifiers and beamforming technology. Compared with AX1800 Wi-Fi 6 products, MX12 is powered by Wi-Fi 6 technology with dual-band concurrency up to 2976Mbps, which is enhanced by 66%. AX3000 Wi-Fi 6 dual-band design and complete Gigabit port support can give full play to your high-speed broadband services. It has a powerful 1.7GHz 4-core CPU and 256 MB large memory, which can handle more terminal device access. All terminals can simultaneously enjoy high-speed Wi-Fi, low latency for online games, and smooth 4K video and VR HD applications. It has the characteristics of easy installation and allows automatic networking and MESH button networking. With the seamless roaming of the entire house, MX12 creates a high-speed and intelligent Mesh wireless network system for the entire family. Internet Connection Type PPPoE, Dynamic IP, Static IP, PPPoE(Russia), PPTP(Russia), L2TP(Russia).

Key features

• Ethernet Interface 3 x 10/100/1000Mbps RJ45 ports per node
• Mesh network Standard /
• Basic Features Beam Forming
• Mu-mimo
• AP Steering
• Band Steering
• Ofdma
• DHCP Server DHCP Server, DHCP Client List
• Virtual Server Port Forwarding, DMZ Host, UPnP
• Parental Control Client Filter
• URL Filter
• Time Limit
• Firewall Forbid TCP/UDP flood attack
• DNS Support manually setting DNS server
• Special Features Ethernet Backhaul
• Iptv
• Others Support App and web management
• Firmware upgrade online
• APP installation Available in iOS 9.0 or later, Android 4.4 or later
• Package Contents Mesh12X* 3, Power adapter x 3, QIG x 1, RJ45 Gigabit Ethernet cable x 1

Specifications

• System-3Pack(Covers Up To 650m2)
• Standard&Protocol IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• Antenna 4 x 3dBi Internal antenna
• Button 1 x Reset Button
• 1 x MESH Button
• Power Input: AC 100-240V, 50/60Hz
• Output: DC 12 V 1.5 A
• Dimension 86x86x190mm (3.39 x3.39 x 7.48 in)
• LED Indicator 1 x Tri-color LED Indicator(Green,Yellow,Red)
• Wireless Standard IEEE802.11a/b/g/n/ac/ax
• Wireless roaming Comply with IEEE802.11k/v
• Rate 2.4GHz: 574Mbps (802.11ax)
• 5GHz: 2402Mbps (802.11ax)
• 2.4G: 2412-2472mhz(ch1-ch13)
• 5G: 5150-5350mhz(ch36-ch64)
• 2.4G: 2412-2462mhz(ch1-ch11)
• 5725-5850mhz(ch149-ch165)
• <20 dBm (2.4 GHz)
• <23 dBm (5 GHz)
• <30 dBm (2.4 GHz)
• <30 dBm (5 GHz)
• 1024-QAM
• Wireless Security WPA3-SAE/WPA2-PSK
• Operating Mode Router Mode,AP Mode
• VPN PPTP Server, PPTP/L2TP Client
• IPv6
• Operation Temperature 0 ~ 40
• Storage Temperature -40 ~ 70
• Operating Humidity 10%~90% RH non-condensing
• Storage Humidity 5%~90% RH non-condensing
