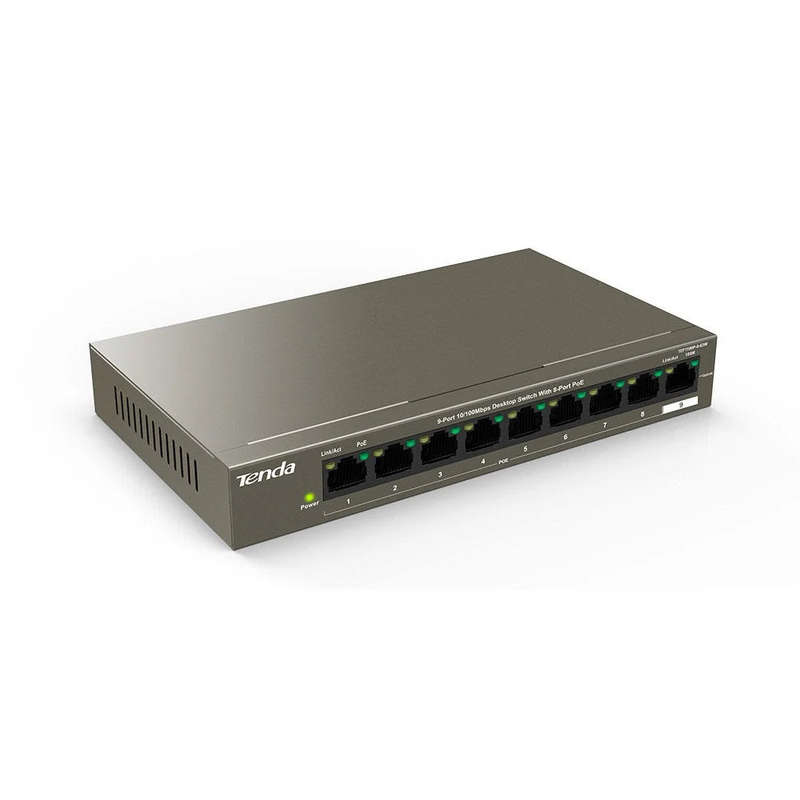

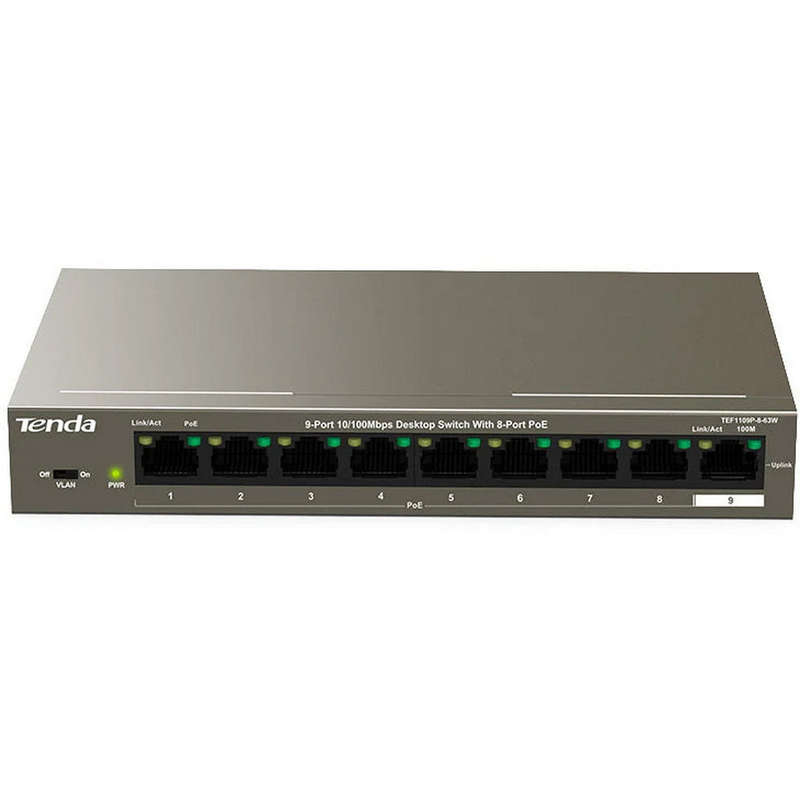

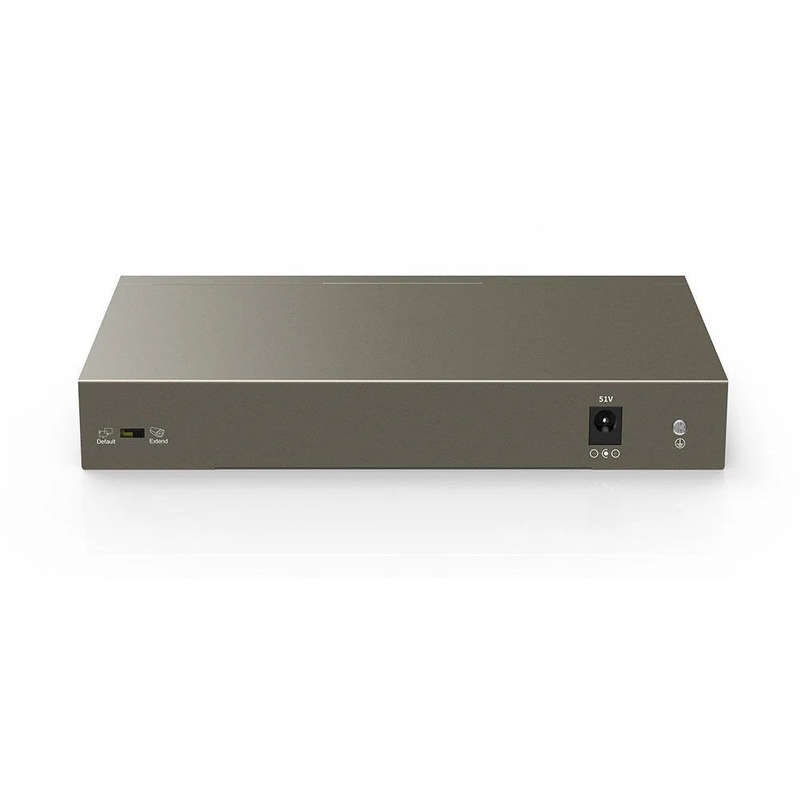

Easily power and connect multiple PoE devices with the Tenda TEF1109P-8-63W. This unmanaged desktop switch offers eight PoE+ ports delivering up to 30 W each and a total PoE power budget of 63 W. The built-in extend mode supports up to 250 m of power and data transmission over standard Cat5e cable, making it ideal for IP cameras, access points, and VoIP installations. Built with durable metal housing and 6 kV surge protection, it ensures reliable operation in small business or surveillance environments.

Compact and efficient PoE+ solution with long-range support and built-in protection.

Key Features:

• 8 × 10/100 Mbps PoE+ ports (up to 30 W each)
• 1 × 10/100 Mbps uplink port
• 63 W total PoE power budget
• Extend mode for 250 m power+data transmission at 10 Mbps
• 6 kV lightning and surge protection
• Fanless, compact metal design
• Plug-and-play with no configuration required

Technical Specifications:

• Switching Capacity: 1.8 Gbps
• Forwarding Rate: Wire-speed
• MAC Address Table: 4,000 entries
• Surge Protection: 6 kV on all ports
• PoE Standards: IEEE 802.3af/at
• Max Power Consumption: 63 W
• Power Input: 100-240 V AC or 51 V DC
• Dimensions: 177.5 × 104 × 26 mm
• Operating Temperature: 0-40 C
• Operating Humidity: 10-90% RH (non-condensing)
• Certifications: CE, FCC, RoHS
• MTBF: >50,000 hours

What's in the box
1 x Installation Guide
1 x Tenda TEF1109P-8-63W
1 x Power Adapter
