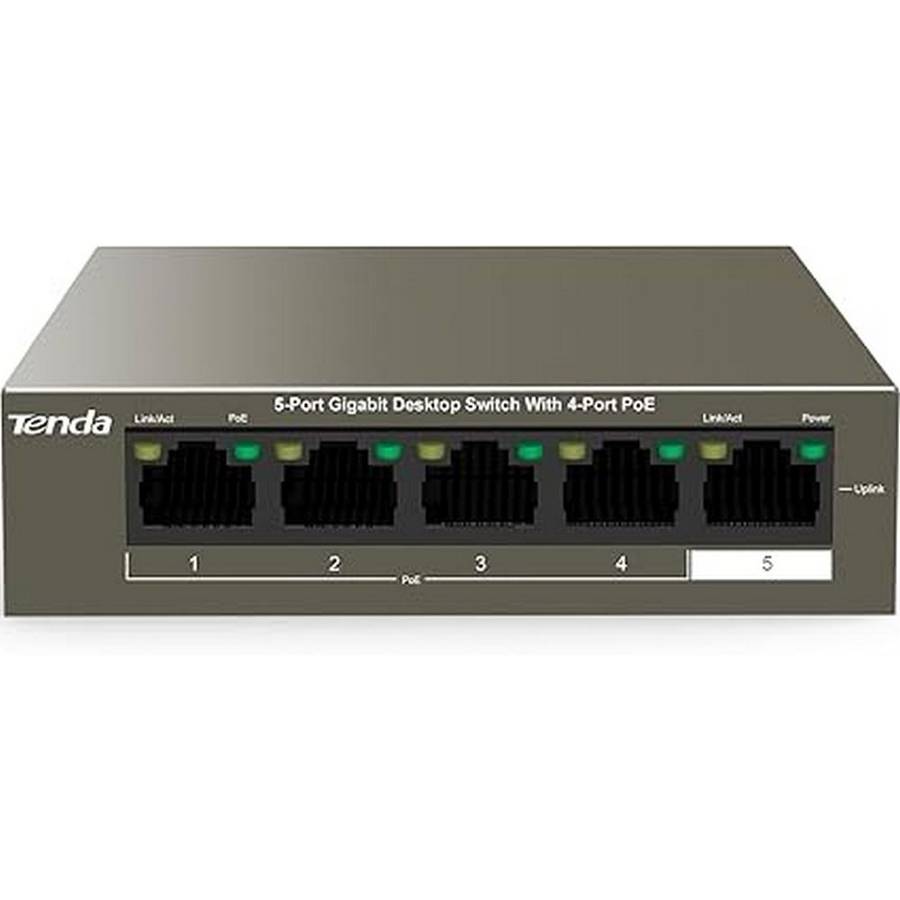

TENDA DESKTOP SWITCH GIGABIT 4-PORT POE

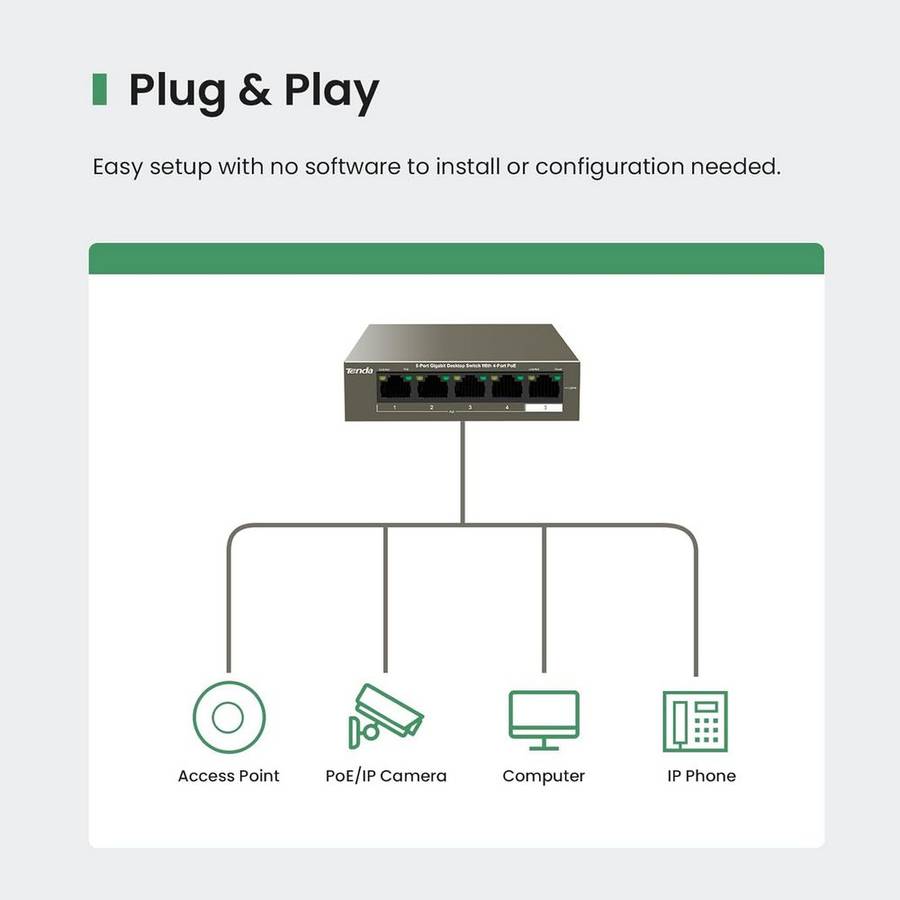

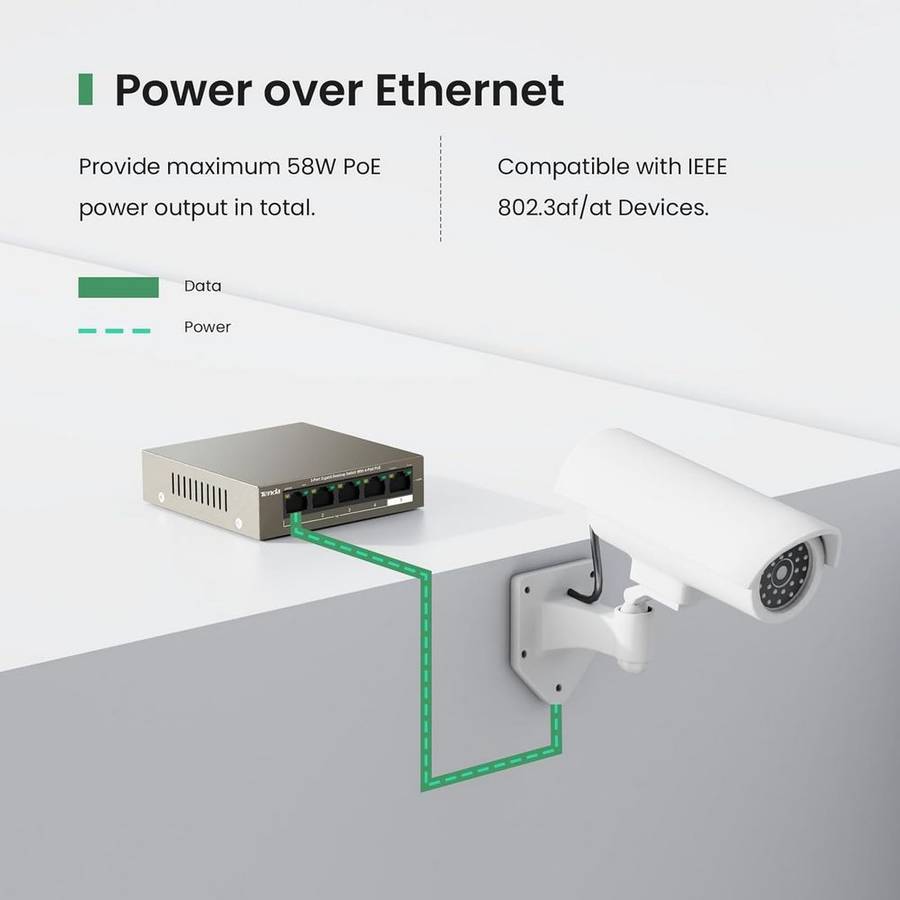

Tenda's TEG1105P is a PoE switch that offers 5 10/100/1000 Mbps Base-TX RJ45 ports. Ports 1 - 4 comply with the IEEE 802.3af standard (maximum PoE power output: 15.4 W) and 802.3at standard (maximum PoE power output: 30 W). The switch offers a maximum PoE power output of 58 W and can supply power to, and exchange data with AP's, IP cameras, and IP phones through CAT5 cables. It also provides simple management modes such as VLAN, to help reduce cabling costs for Access Points and IP cameras.

Specifications:
- Standards & Protocol: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
- MTBF: ? 100,000 hours
- Indicator light: 5 x Link/Act per device, 4 x PoE per device, 1 x Power per device
- Interface: 4x 10/100/1000 Base-T ports (Data/Power), 1x 10/100/1000Base-T port (Data)
- Lightning Protection: 6KV
- Store & Forward: Yes
- Exchange capacity: 10 Gbps
- Packet Forwarding Rate: 7.44 Mpps
- RAM Data Buffer: 1Mb
- MAC Address Table: 2K
- PoE supply management: Port 1 to Port 4 supports IEEE802.3at/af PoE standard
- PoE through pin: 1 2 4 5 +, 3 6 7 8 -
- Input Voltage AC: 100-240V - 50/60Hz
- Power Consumption full configuration: <63W

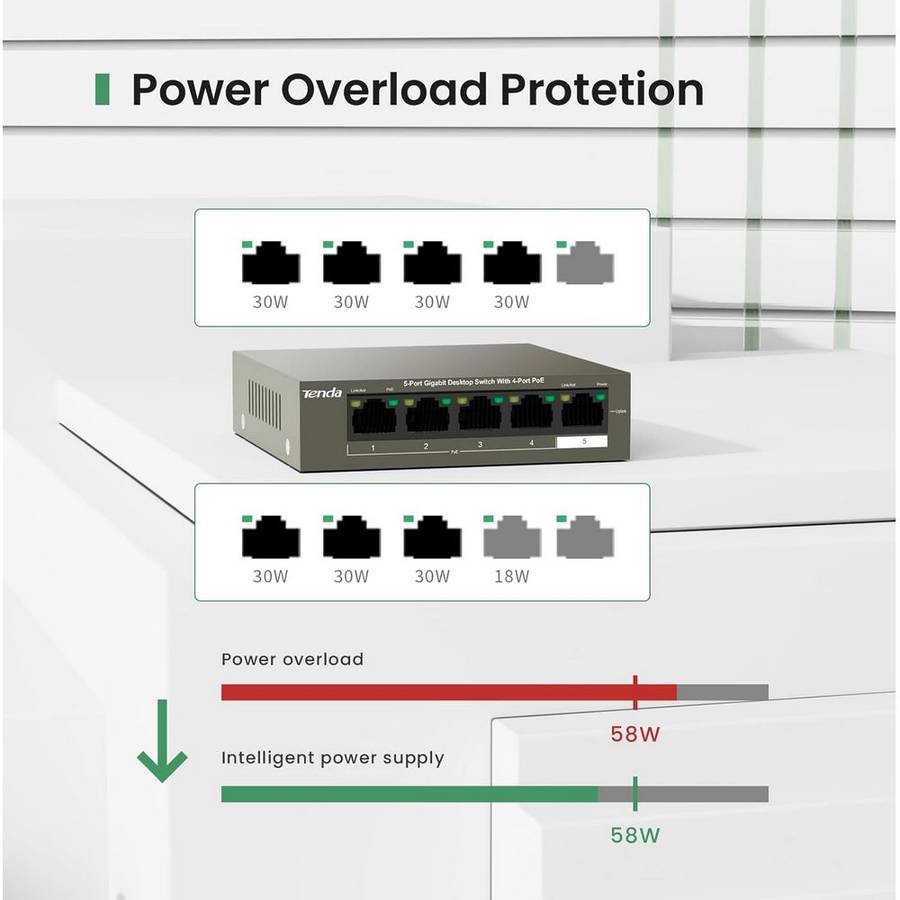

- PoE Max Power Supply: 58W
- Operating Temperature: 0 degree celsius~40 degree celsius
- Storage Temperature: -40 degree celsius~70 degree celsius
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
- Dimensions: 100 x 100 x 26mm (WxDxH)

What's in the box
-1x TEG1105P Unit
-1x PSU Unit
-1x Power Cable
