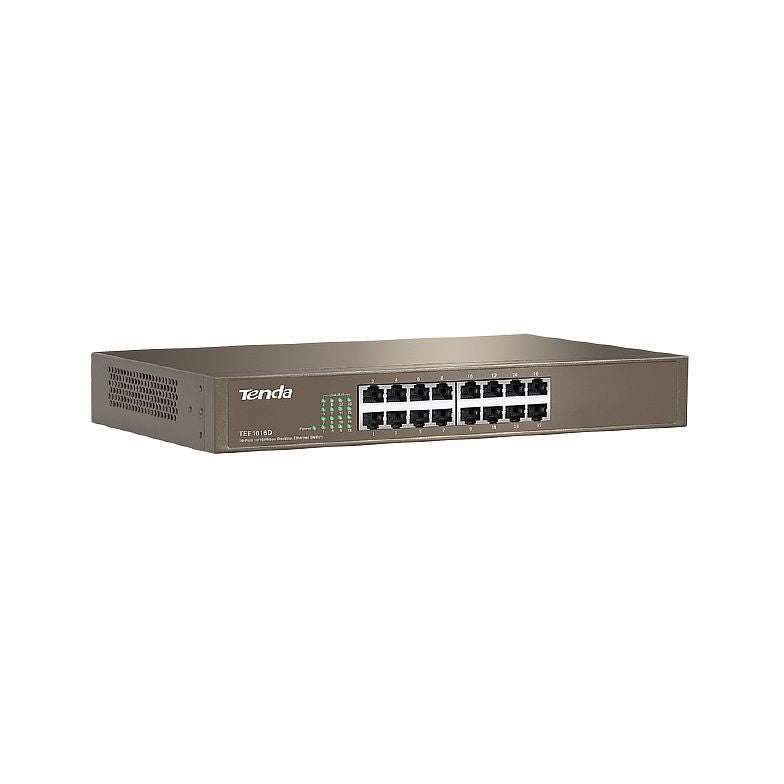

Tenda Ethernet Switch 16 Port 10/100

The Tenda TEF1016D is a 16-port Fast Ethernet desktop/rackmount switch designed for small to medium-sized networks requiring reliable wired connectivity. It offers plug-and-play functionality, making it easy to deploy without any configuration. However, please note that this product has reached its end-of-life status and is no longer sold or supported by Tenda.

Key Features:

• 16 Auto-Negotiation Ports: Sixteen 10/100 Mbps RJ45 ports with auto MDI/MDIX support for seamless connectivity.

• High-Speed Data Transfer: Full duplex mode provides up to 200 Mbps per port for smooth data transmission.

• Plug-and-Play: No configuration required; simply connect your devices to expand your network.

• Robust Build: Metal casing suitable for desktop, wall, or rack mounting.

• LED Indicators: One power LED and sixteen Link/Act LEDs for real-time status monitoring.

Technical Specifications:

• Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x

• Interfaces: 16 × 10/100 Mbps RJ45 ports (Auto MDI/MDIX)

• Transmission Media: Recommended: CAT5/5e UTP or better

• LED Indicators: 1 × Power, 16 × Link/Act

• Dimensions: 294 mm × 180 mm × 44 mm

• Material: Metal

• Power Supply: Input: 100240V AC 50/60Hz

• Power Consumption: Maximum: <6W

• Switching Capacity: 3.2 Gbps

• Forwarding Rate: 2.38 Mpps

• Buffer Memory: 1.25 Mb

• MAC Address Table: 4K entries

• Mounting Options: Desktop, wall, or rack mounting supported

• Operating Temperature: 0°C to 45°C

• Storage Temperature: -40°C to 70°C

• Operating Humidity: 10% to 90% RH non-condensing

• Storage Humidity: 5% to 90% RH non-condensing

• Certifications: CE, FCC, RoHS
