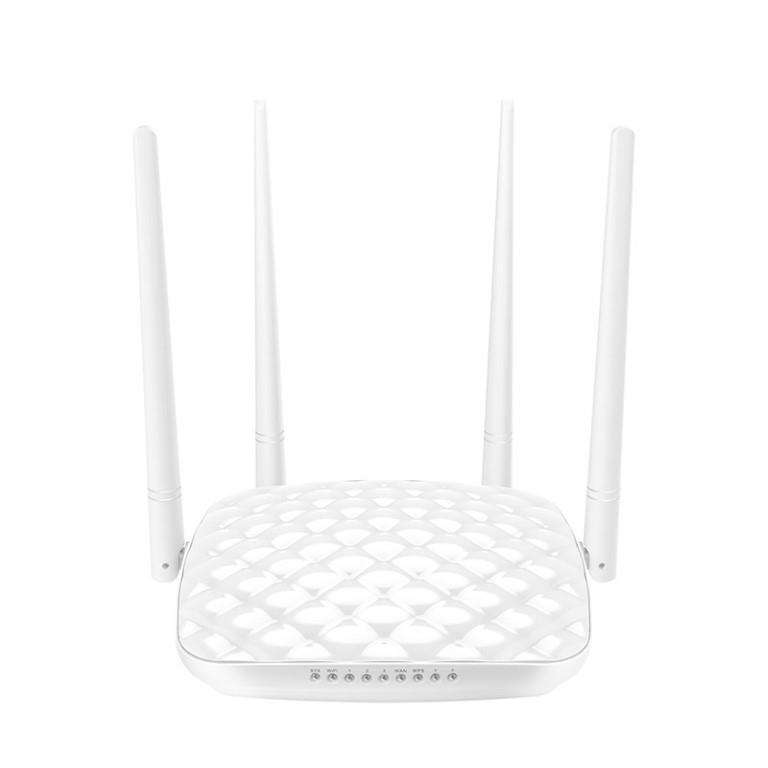

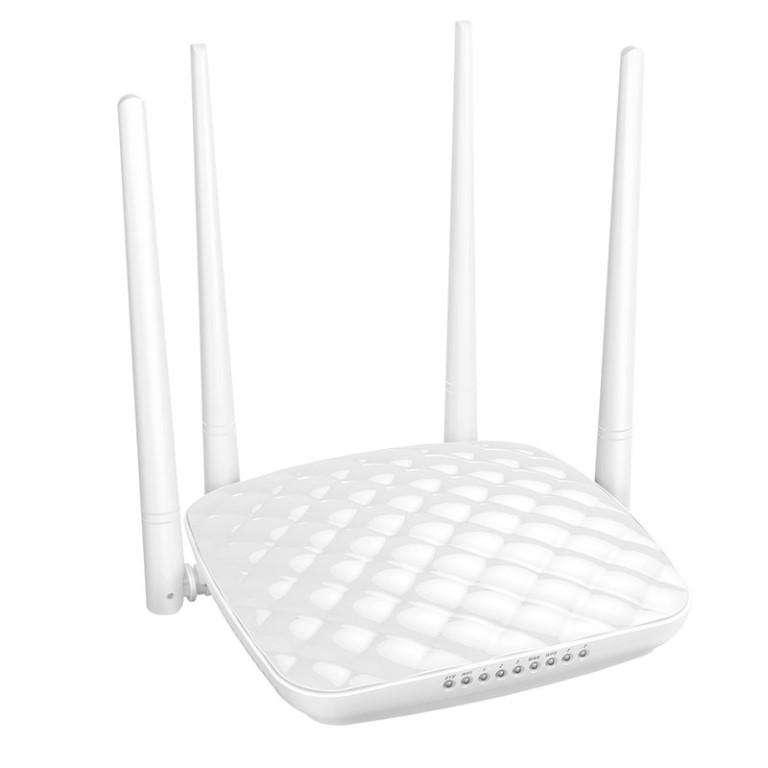

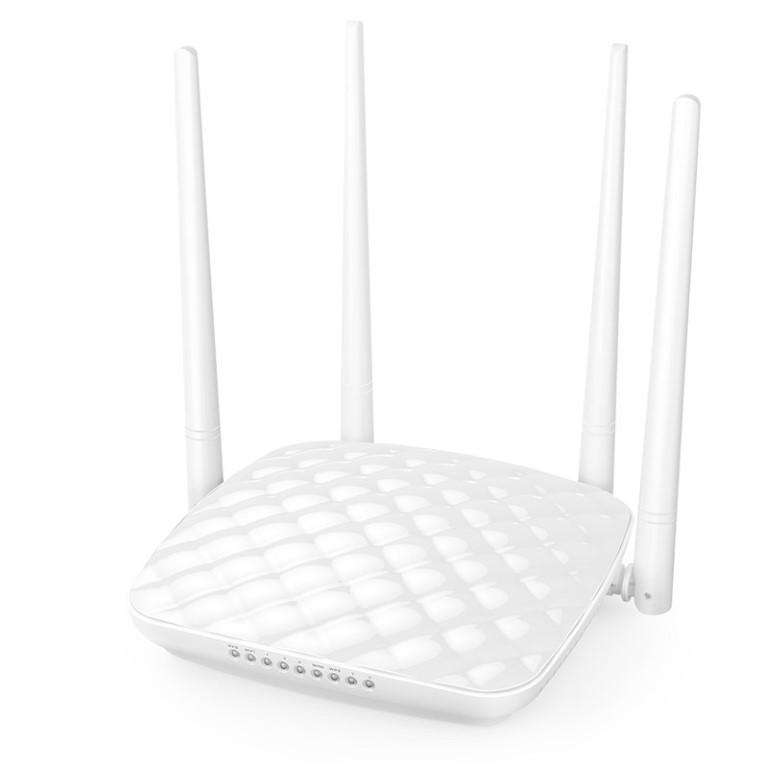

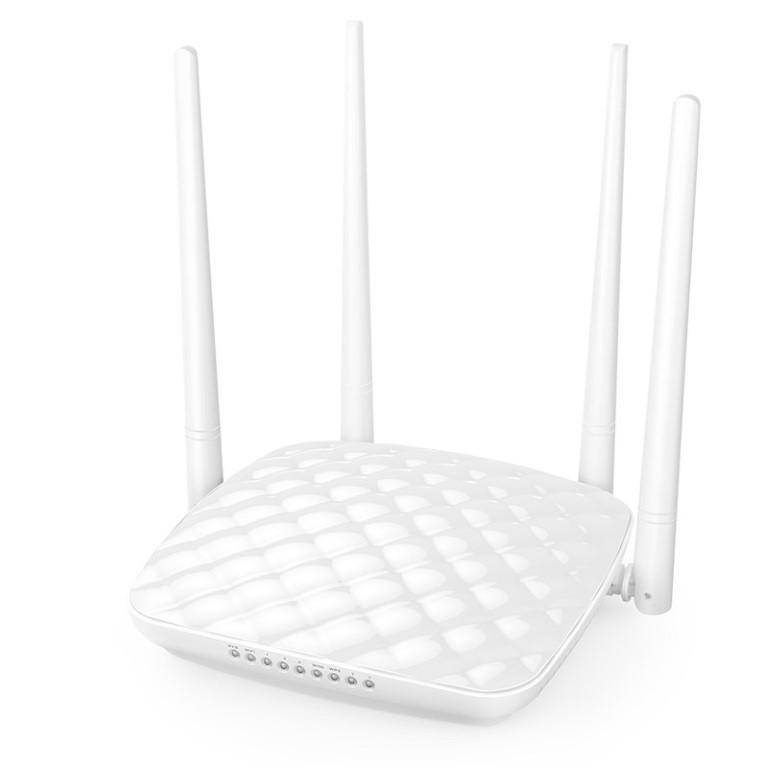

Tenda FH456 V4.0 300Mbps Ultimate Coverage Wi-Fi Router

Salute to Your Surfing Fun

Tenda FH456 802.11n High-Power WiFi Router is our salute to the medium and large size house. 4x5dBi high-performance omni-directional external antennas and amplifier technology ensure fast, stable and wide range WiFi signal up to 300Mbps and whole-home coverage for your ultimate surfing fun. The considerate timer management realizes turn on/off your router automatically, non-hassle installation, bandwidth control and WiFi security designs all are for your smart and fashionable networking life.

Specification

Standard&Protocol

IEEE802.3, IEEE802.3u,IEEE802.3ab

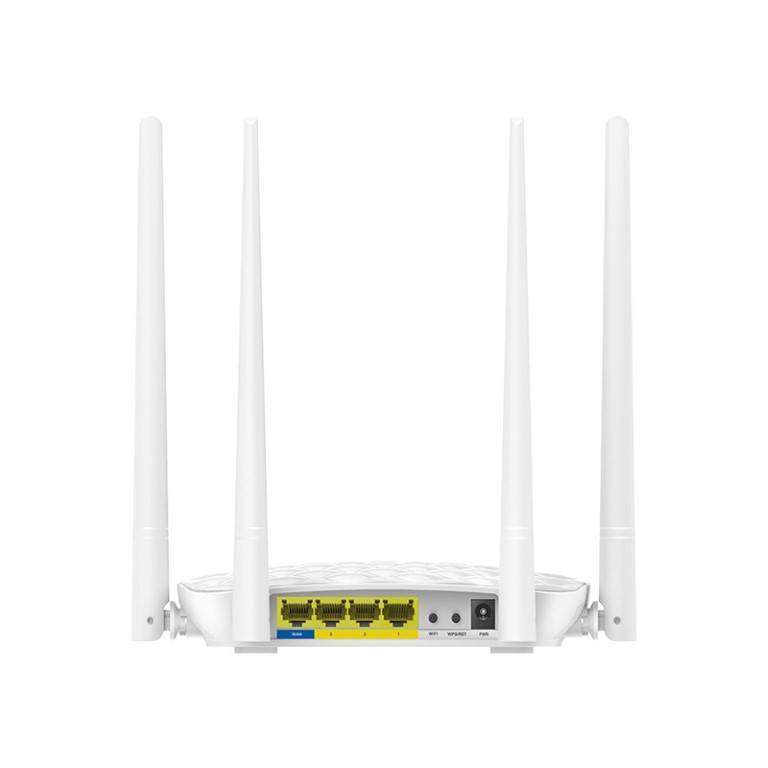

Interfaces

1*10/100Mbps WAN port
3*10/100Mbps LAN ports

Antenna

4*5dBi external antennas

Button

1*WPS/RST,1*WIFI

Power

Input：AC 100-240V~50/60Hz 0.6A
Output：DC 9V0.6A

Dimension

171.3*171.3*36.4mm

LED Indicator

SYS ãWiFiだ1だ2だ3だWAN だWPS

Wireless

Wireless Standard

IEEE 802.11b/g/n 2.4GHz

Data Rate

2.4GHz: Up to 300Mbps

Frequency

2.4GHz

Transmission Power

CE:<20dBm

Basic Features

WiFi On/Off
Transmission Power: high, low

Wireless Security

WPA/WPA2, WPA-PSK/WPA2-PSK

Software

Internet Connection Type

PPPoE, Dynamic IP, Static IP
PPPoE(Russia), PPTP(Russia), L2TP(Russia)

Operating Mode

Wireless Router Mode
Universal Repeater Mode
WISP Mode
AP Mode

DHCP Server

DHCP Server
DHCP Client List
DHCP Reservation

Virtual Server

Port Forwarding
DMZ Host
UPnP

Security

Client Filter
Parental Control(support black list and white list)
Remote Web Management

Firewall

Forbid UDP flood attack
Forbid TCP flood attack
Forbid ICMP attack
Forbid WAN PING from internet

DDNS

no-ip,DynDNS,Oray

VPN

IPsec pass through
PPTP pass through
L2TP pass through

Special Features

PPPoE Username/password Clone
Smart WiFi Schedule

Others

Bandwidth Control
MAC Clone
System Log
Backup & Restore configurations
Firmware upgradeable via browser
