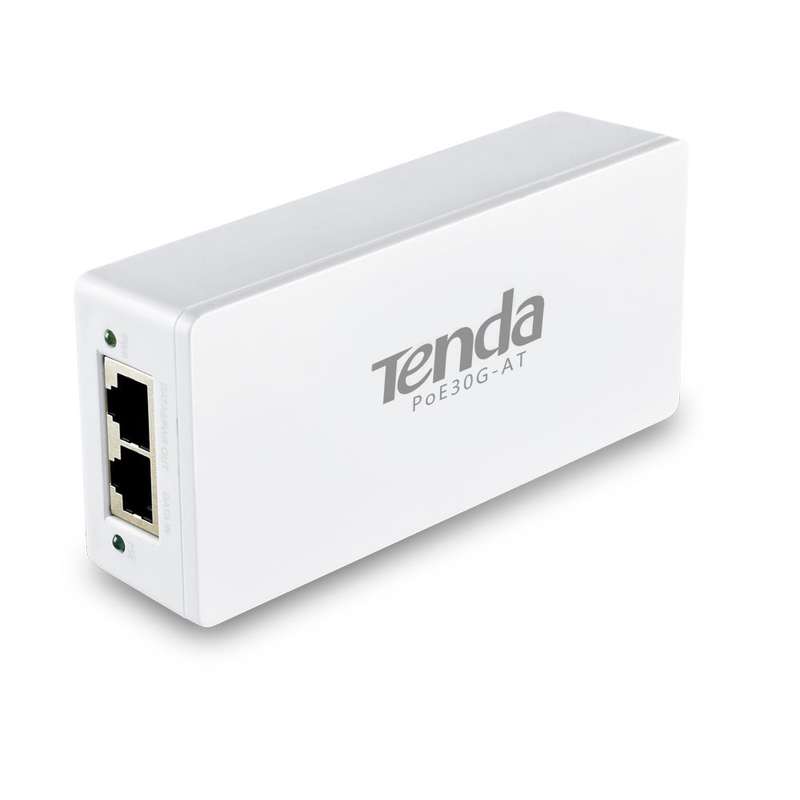

Tenda Gigabit PoE Injector - PoE30G-AT

Tenda Gigabit PoE Injector - PoE30G-AT
IEEE802.3at Gigabit PoE Injector
PoE30G-AT PoE Injector delivers up to 30W output power per port
PoE30G-AT PoE30G-AT Gigabit PoE Injector
What It Does
Main Features
The Tenda PoE30G-AT is the IEEE802.3 AT Gigabit PoE injector, which fully conforms to the standard of 802.3, transmitting power through Ethernet cable, the maximum transmission distance can reach 100 meters. The PoE injector has two Ethernet gigabit data ports and an output port combination of data and power. In addition, the device can be used for Ethernet device IEEE802.3af/ compatible PoE power applications such as wireless AP, VoIP phone and web CAM. The power supply of Ethernet cable not only provides system reliability, traditional power grid expansion but also simplifies the deployment of power lines. >> PoE ports supports IEEE802.3at and IEEE802.3af standard
Equipped with gigabit port, blazing-fast transfer rate, the maximum transfer rate of up to 30W for single port
power distance extension of up to 100 meters for the standard cat. 5e and Cat. 6 Ethernet cable
Plug and play, no configuration required
PoE Performance
PoE ports support IEEE802.3at and IEEE802.3af standard Supports AT high power(30W)
Power supply distance extension
The standard cat's power distance can be extended to 100 meters. The device can extend the range of PoE power over long distances, and simplify the deployment of power lines so that PD equipment can supply power.
Gigabit blazing-fast delivery
10/100M/1000Mbps autosensing RJ45 port provides fast data delivery, supports wire-speed forwarding and MDI/MDIX, plug and play.
Stable performance
Adopts new chips solution, brings new performance experience, powerful data transfer and power
Hardware
Network standards
IEEE802.3? IEEE802.3u ?IEEE802.3ab?IEEE802.3af? IEEE802.3at
LED Indicator
PWR, PoE
Interfaces
110/100/1000 Base-T Ethernet Port(Data/PoE)
110/100/1000 Base-T Ethernet Port(Data)
Transmission media
Recommended: CAT5/5e UTP or better
Dimension
132.3mm60mm33mm
Level of protection
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV
Forwarding mode
Store-and-forward
Transmission Rate
1000Mbps
PoE budget
Single port: AF: 15.4W, AT: 30W
Whole device: 30W
Power consumption
30W
Input voltage
100?240V AC 50/60Hz
51V/0.8A DC?Power Adapter Output?
Mounting
Desktop mounting: support
Environment
Operating Temperature: 0?~45?
Storage Temperature: -40?~70?
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Certification
FCC?CE ?RoHS?UL
What's in the box
1 x Tenda Gigabit PoE Injector - PoE30G-AT
