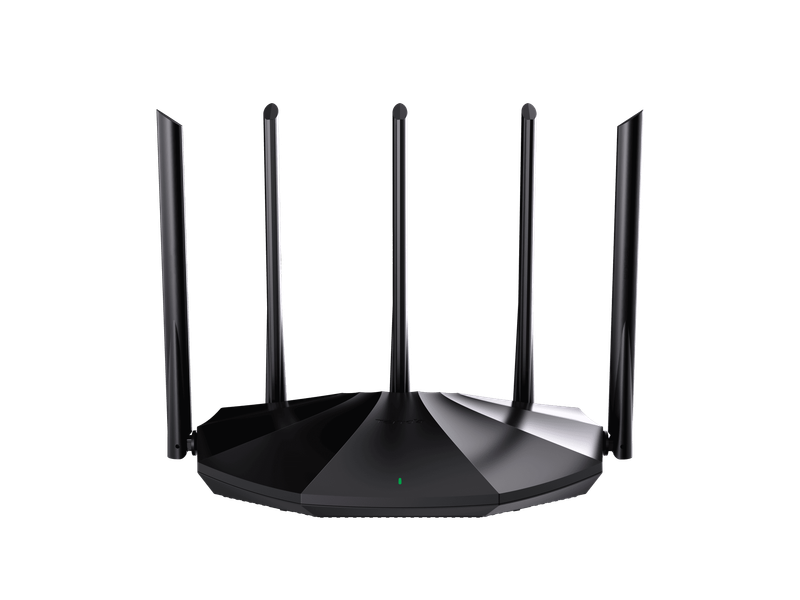

Dual Band Wi-Fi 6 Router, 1500mbps, 4x Gigabit ports, 5x 6dBi external antennas, Parental Control
Wi-Fi 6
Fast, Reliable, Everywhere
Dual-Band Gigabit Wi-Fi 6 Router
Super Fast & Stable
With next-gen Wi-Fi 6 technology, TX2 Pro has a speed of up to 1501Mbps (2.4GHz 300Mbps; 5GHz 1201Mbps), providing a wireless network experience with the faster transmission and lower latency.
Eliminate Wi-Fi Dead Zone
TX2 Pro is equipped with 5 external 6dBi antennas and a high-performance signal enhancement module, enhancing signal transmission and reception sensitivity, providing whole-home Wi-Fi 6 coverage for medium and large households.
Smart switch between different channel
TX2 Pro can automatically switch the Wi-Fi band according to the position, providing the best experience between coverage and speed.
Ultraspeed with Gigabit Port
Connecting more wired devices for faster transfer speed with Gigabit ports, make sure all kinds of wired devices work smoothly and enjoy the ultra-speed network.
Minimize Lag in Multi-user Scenario
Significantly improve network performance and efficiency with MU-MIMO + OFDMA technology. They are meeting the needs of household members to surf the Internet simultaneously without latency.
Parental Control
Maintain control over children's online time and behavior, cultivate children's healthy habit of surfing the Internet.
High-class Security with WPA3
TX2 Pro is equipped with the new generation of Wi-Fi security standard - WPA3, which protects the family's network privacy.
| Standard & Protocol | IEEE802.3, IEEE802.3u,IEEE802.3ab |
| Interfaces | 1*10/100/1000Mbps WAN Port
3*10/100/1000Mbps LAN Ports |
| Antenna | 5*6dBi External Antennas |
| Button | WPS/Reset Button*1 |
| Power | Input: AC 100-240V~50/60Hz 0.6A
Output: DC 12V1A |
| LED Indicator | SYS*1 |
| Dimension | 9.40*5.68*1.58 in (238.9*144.3*40.3mm) |
| Wireless Standard | IEEE 802.11n/b/g 2.4 GHz
IEEE 802.11ax/ac/n/a 5GHz |
| Data Rate | 5GHz: Up to 1201Mbps
2.4GHz: Up to 300Mbps |
| Frequency | 2.4GHz & 5GHz |
| Transmission Power | CE:
<20dBm(2.4G)
<23dBm(5G) |
| Basic Features | Beamforming
MU-MIMO
Smart Power Saving
Tenda App: Local and Remote Management |
| Wireless Security | WPA2-PSK
WPA3-SAE/WPA2-PSK
Wireless Encryption Disable and Enable
WPS Fast Connection |
| Internet Connection Type | PPPoE, Dynamic IP, Static IP
PPPoE(Russia), PPTP(Russia), L2TP(Russia)
Unify, Maxis, Maxis-special, Celcom, Digi |
| Operating Mode | Wireless Router Mode
AP Mode
Universal Repeater Mode (Client + AP） |
| DHCP | DHCP Server
DHCP Client List
DHCP Reservation |
| Virtual Server | Port Forwarding
DMZ Host
UPnP |
| Security | Parental Control
Client Filter |
| Firewall | Forbid UDP Flood Attack
Forbid TCP Flood Attack
Forbid ICMP Flood Attack
Forbid WAN Ping from Internet |
| DDNS | Support DynDNS, No-ip，oray，88ip |
| Special Features | WPA3
Unify 2.4 GHz & 5 GHz
Smart LED on/off
Tenda Wi-Fi App |
| Other Function | Bandwidth Control
Guest Network
IPTV
VLAN
MAC Clone
Static Routing
System Log
Backup & Restore configurations
Firmware upgrade online
Firmware upgradeable via browser
Supports IPv6 |
| Temperature | Operating Temperature : 0~40
Storage Temperature : -40C ~70 |
| Humidity | Operating Humidity : 10 %~90% RH non-condensing
Storage Humidity : 5 %~ 90%RH non-condensing |
| Default Settings | tendawifi.com or //192.168.0.1 |
| Certification | CE, RoHS, FCC |
| EIRP Power (Max) | 2.4GHz＜20dBm
5GHz＜23dBm |
| Package Contents | Dual-Band Gigabit Wi-Fi 6 Router*1
Ethernet Cable*1
Power Adapter*1
Installation Guide*1 |
