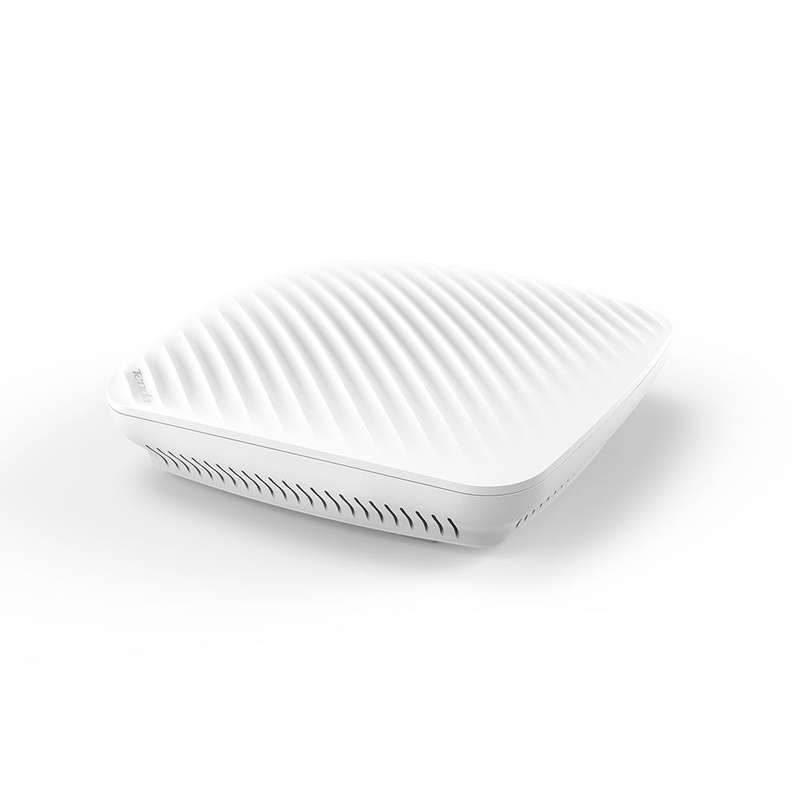

Tenda i9 300M Enterprise Wireless Ceiling Wireless access point
I9 is a wireless access point specially designed by tenda for offices, bars, coffee shops and other indoor environments.
It works in the 2.4GHz band, and the wireless rate can reach 300Mbps.
Built-in 2 high gain Omni-directional MIMO antennas which give powerful WIFI signal penetration and coverage.
At the same time, the device built-in power adjustment mode, the user can adjust the transmitted power according to the actual environment.
The device adopts a standard 802.3af PoE power supply, which can guarantee the users to realize a long-distance network power supply without changing the original power network.
With a simple design, it can be installed directly on the wall or the ceiling, it does not affect the original building structure. And it supports TENDA whole series wireless controller to management and deployment.
Multiple anti-interference wireless stable and not dropped.
Provide stable and fast wireless coverage for budget hotels, small and medium enterprises, and small and medium-sized consumer sites.
Omnidirectional antenna covered
Adopt the world advanced chip, with high-performance memory and CPU, guarantee wireless network stability. With two high gain Omni-directional antennas, 2X2 MIMO technology, which greatly improves the wireless speed and coverage. With radiofrequency coverage optimization technology, effectively enhance the strength of the signal and penetrating power,In the indoor multi-occlusive environment, the signal coverage has no dead Angle, and it can be stabilized to cover 4-6 hotel rooms within 300 square meters by the actual measurement of several hotels.
Multiple anti-interference technology makes the wireless network more stable
Through the built-in multiple anti-interference technologies, which can automatically choose the optimal channel, greatly reduced the same frequency interference and other electromagnetic interference, which improve the quality of the wireless signal, make the wireless network is more stable.
Dual power supply mode, flexible and convenient
Compared with the single power supply mode of other products, i9 supports POE power supply and DC power supply. You can choose according to the actual situation, the deployment is simpler and the construction is more convenient.
Reasonable allocation of wireless resources to ensure the quality of wireless
I9 supports hollow scheduling and limited weakness signal terminal access. It can allocate the resources of wireless reasonably. Avoid low rate users to preempt empty resources, increasing the overall rate of wireless networks. It can adjust the threshold of low signal terminal access, reject the terminal access of low signal strength, which make sure the wireless network is more high-speed.
Support multi-SSID and VLAN binding to protect data security
It adopted a multi-SSID design to support VLAN and SSID binding. According to the connection to different SSID, it can distinguish the internet access and data access rights which protect network data security.
Support AC unified management, easy management and maintenance
i9 support centralized management of wireless controllers, automatically detect and recognize AP without manually adding. In a wireless network, only one wireless controller can be used to manage all AP, and ca
Modei9
Mounting optionsCeiling and Wall Mount
Dimension18418438
Frequency Band2.4GHz
Wireless Standards802.11b/g/n
PHY Data Rates1-300Mbps
Ethernet Ports1 10/100Base TX
DC Power Interface1 DC Power Interface
Reset Button1
LED1 Sys
Power Consumption<8W
Power Supply802.3af & 12V1A DC
SSID Numbers4
WEP64/128
WPA2-PSKAES/TKIP
WPA-PSKAES/TKIP
WPASupport
WPA2Support
Operating ModeAP.Client+AP
SSID HiddenSupport
Access ControlMAC address filtering
Adjustable Transmission PowerSupport
AP IsolationSupport
User Access LimitSupports wireless client number constraints
Client Access RestrictionsSupport wireless client RSSI threshold Settings
WMMSupport
VLAN and SSID BindingsSupport
Timing RebootSupport
Cycle RestartSupport
Equipment RestartSupport from Web UI or AP Controller
Firmware UpgradeSupport from Web UI or AP Controller
Equipment ManagementWeb Management
Restore Factory SettingsSupport from Web UI or AP Controller
Backup ConfigurationSupport
Restore ConfigurationSupport
Transmit Power20��1.5dbm
Network DiagnosesSupport ping
LogsSystem log view
Managed By ControllerM3
Default SettingsDefault Login IP?192.168.0.254
Default User Name?admin?Default Password?admin
TemperatureOperating Temperature?-10? ~ 40??Storage Temperature?-30? ~ 70?
HumidityOperating Humidity?10%~90% non-condensing?Storage Humidity?10%~90% non-condensing
