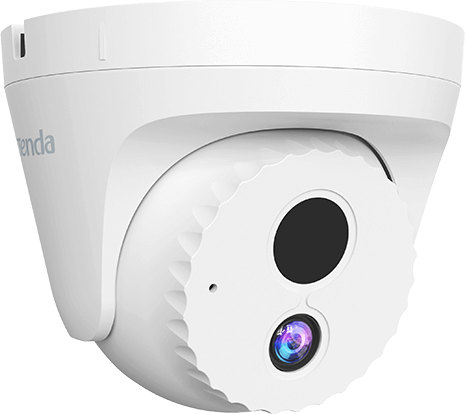

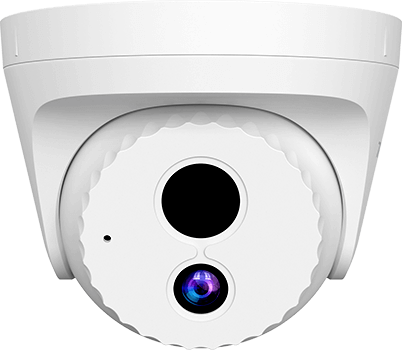

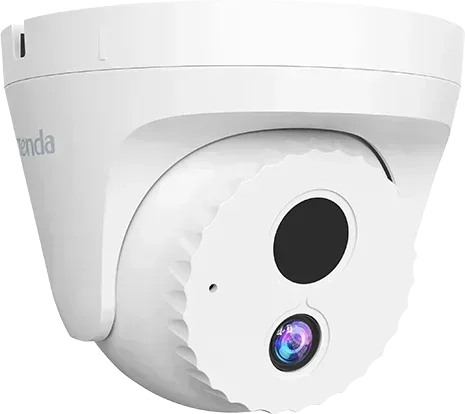

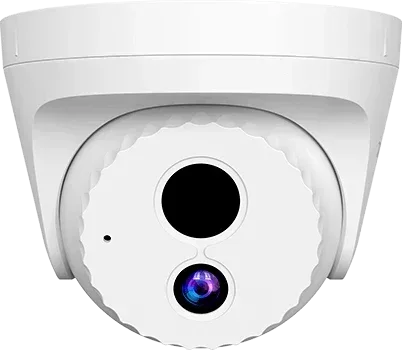

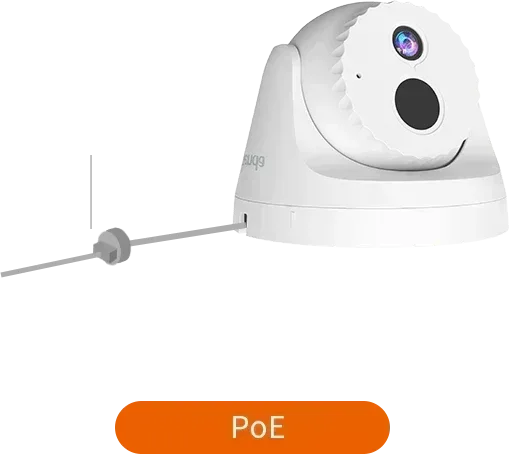

The Conch Security Camera IC7-PRS is a high-performance 4MP (2560x1440) engineering camera that integrates such functions as infrared night vision, motion detection, remote audio pickup and PoE. It is commonly used in factories, supermarket, shops, buildings, and some SMB projects where contractors can use their mobile phones for remote real-time monitoring.
Connect To the PoE Network Video Recorder (NVR) for Small Networking
For such small monitoring scenarios as small shops and restaurants.Monitoring requirements can be met by simply connecting the camera to the PoE NVR.

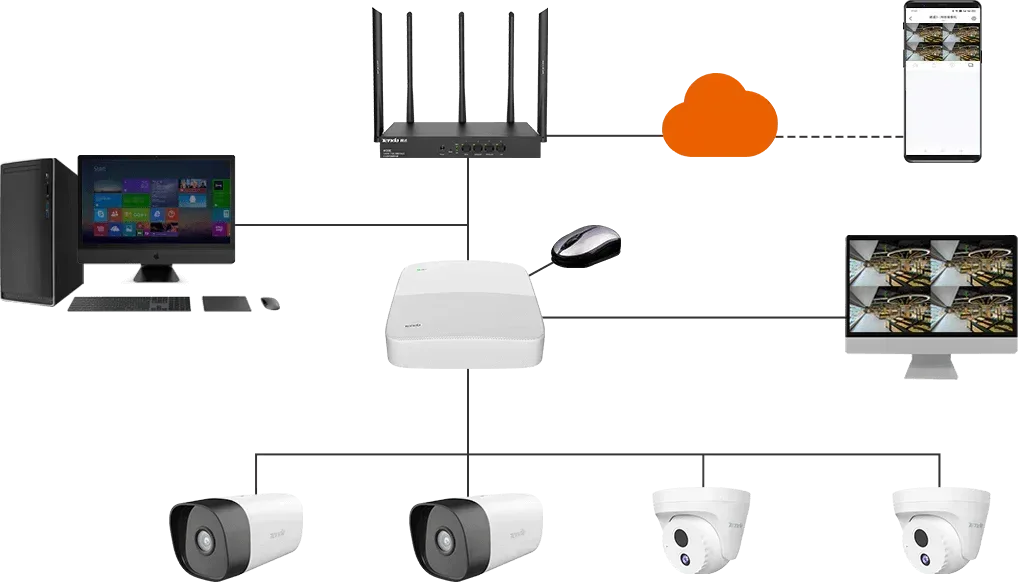

Connect To the PoE Switch for Medium and Large Networking
For such medium and large monitoring scenarios as markets, industrial zones and car parks, you can connect the camera to the PoE switch for networking.
Clear monitoring details from 4MP UHD images
Equipped with a high-performance CMOS image sensor, the camera can display 4MP UHD images (2560x1440) with more monitoring details.
Super photosensitive ability, better performance in low light
Using a high-sensitivity sensor, the camera is more light-sensitive than common cameras and can display finer images than common infrared cameras.
Audio Pickup Over 5 m, Sync Audio and Video
With an inbuilt highly sensitive microphone which supports remote audio pickup over 5 m, the camera can sync audio and video.
Compatible With NVRs of Other Brands With ONVIF Supported
It can be used with mainstream NVRs in the market, featuring high compatibility.
Remote Control for Light of Heart
The camera supports remote control on the app to view real-time monitoring. Once the camera detects an abnormal event, it will push the alarm notification remotely.
H.265 Coding Technology for Smooth Video and Efficient Data Storage
Compared with H.264, the new-generation H.265 saves 50% in video data size, which further smoothes the videos with bandwidth saved and saves the data storage space.
Suitable for a variety of indoor monitoring scenarios
Wall-mounting/Ceiling-mounting
The camera can be either wall-mounted or ceiling-mounted, quite flexible and convenient.
Ports

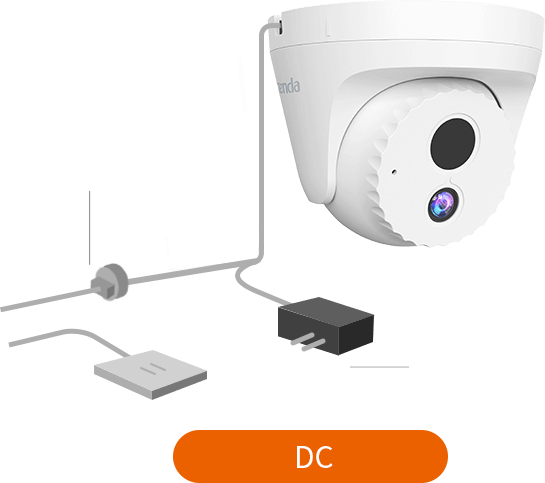

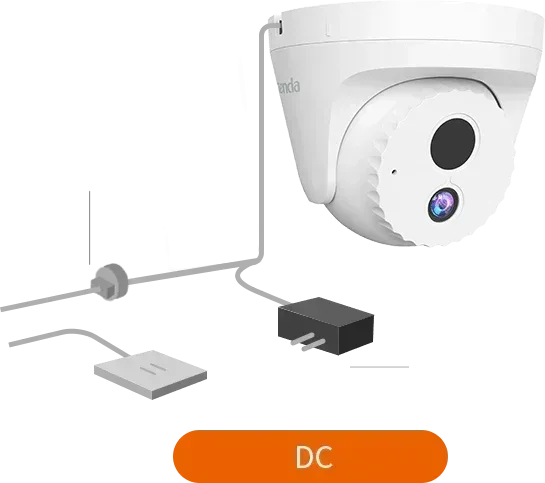

Power: DC 12V 1A

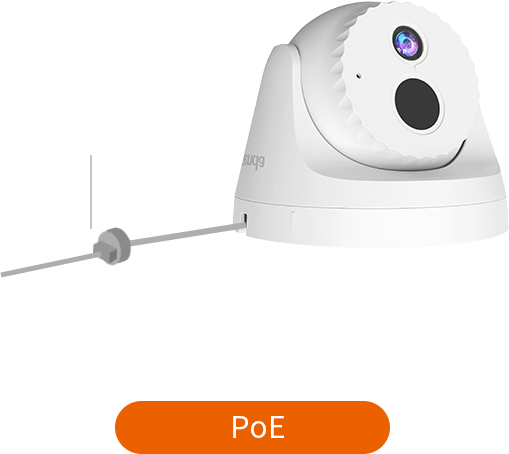

Ethernet: 1 x RJ45 100 Mbps Ethernet jack. Support IEEE 802.3af standard.
Ethernet port on tail line
Lens
4mm@F2.2/2.8mm@F2.2
Product Size
106.8mmx90.5mm
Resolution
2560x1440
Coding Standard
H.265/H.264
Day and Night Shift Mode
Built-in IR-CUT double filter
Noise Reduction
3D digital noise reduction
DWDR
Support
Backlight Compensation
Support
ROI
Support
Smart Alarm
S-motion detection&Human Shape detection&Customized area detection
Infrared Night Vision Distance
30 Meters
Temperature
Operating temperature: -10 ~ 50
Storage temperature: -40 ~70
Humidity
Operating humidity: 10%-95%RH (non-condensing)
Storage humidity: 3% ~ 95%RH (non-condensing)
Certification
CE RoHs FCC
Audio
Built-in microphone
Network protocol
RTSP HTTP DHCP DDNS ONVIF
Internet Network protocol
IPV4
Add device method
Wired
What's in the box
1 x Tenda 4MP PoE Conch Security Camera
1 x Security camera, Wall-mounted accessory kit, Quick installation guide General Public license notice
