Storage Sold Separately , Hardisk not included !!!!!!!

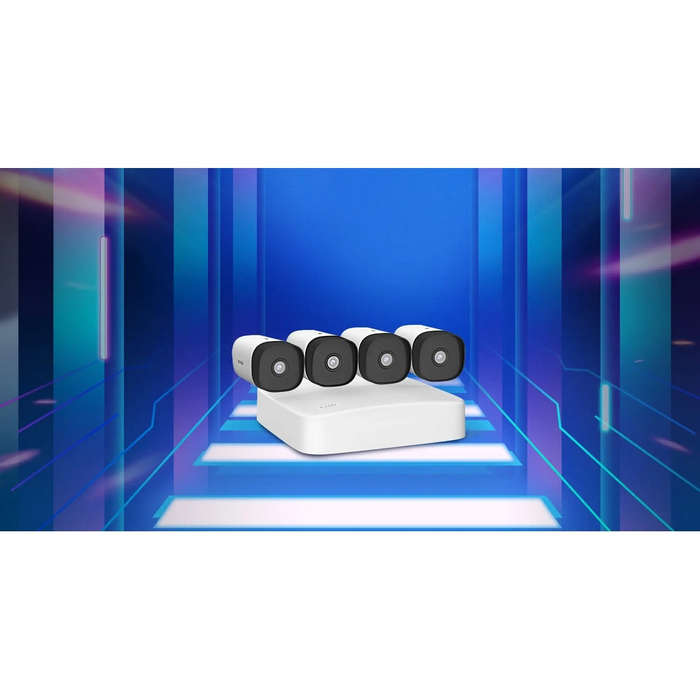

4 Channel PoE HD Video Security Kit K4P-4TR
4MP All-day Safeguard
Enjoy Smart and Safe Life
Restaurant | Shop | Single-family House | Office | School | Factory | Farm
Compatible Official Standard Kit
Hassle-free Purchase
The common accessories are included in the kit for building the small surveillance system. The official collocation is compatible and barrier-free, offering a convenient one-stop shopping experience.
Plug and Play with Stable Standard
PoE Power Supply
IEEE802.3af standard PoE; Sifos testing; Power overload protection; Plug and play; Safe and stable internet connection and power supply
Plug and Play with Stable Standard
PoE Power Supply
IEEE802.3af standard PoE; Sifos testing; Power overload protection; Plug and play; Safe and stable internet connection and power supply.
Support 4K UHD Output for Clearer Horizons
4K HDMI output and the ultra high-definition 3840x2160 resolution provides you clear images with more details even when zoomed.
Smart Bad Sector Isolation, Designed for Monitoring
The file system is specially designed for video surveillance. It can automatically detect, identify and skip the bad sectors on the HDD, ensuring that the recording is complete without losing frames. It is safe, stable and reliable.
AI Human Detection for Accurate Alarm
Based on deep learning image identification technology, the built-in AI human detection function effectively filters non-human targets, thus greatly improving alarm accuracy.
Dual Backup with HDD and Cloud Storage Support
Safeguard Recording Against Loss
The video security kit supports 10TB large-capacity HDD access to meet the long-term recording storage requirements. With HDD and cloud storage support , the data is safe and not lost.
Easy and Fast Remote Access
Control Monitoring Anytime Anywhere
The video security kit supports mobile App remote monitoring and browser access without plug-in. You can view and paly back the video, receive the alarm messages and control abnormal conditions on your mobile phone anytime and anywhere.
IP Video Input
4-ch
IP Video Resolution
4MP
Input Bandwidth
60 Mbps
Audio Input
1-ch, RCA (2.0 Vp-p, 10k )
HDMI Output
1-ch, 4K (3840 2160 )/30Hz, 1920 1080/60 Hz, 1280 1024/60Hz, 1280 720/60 Hz
VGA Output
1-ch, 1920 1080/60Hz, 1280 1024/60Hz, 1280 720/60Hz, HDMI/VGA simultaneous output
Output Bandwidth
60 Mbps
Audio Output
1-ch, RCA (2.0 Vp-p, 10k )
Video Decoding Format
H.265, H.264
Audio Decoding Format
G.711A, G.711U
Recording Resolution
4MP, 3MP, 1080P, 720P, D1
Decoding Capability
4-ch@1080P (30 fps)
Stream Type
Video, Video & Audio
Record Mode
Normal, Alarm
Playback Mode
Instant, Channel, File, Tag
Sync Playback
Up to 4-ch
Backup Mode
USB device
Ethernet Port
1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port
Network Protocol
HTTP, HTTPS, WebSockets, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, DDNS
Mobile Client
Support iOS, Android
Web Browser
Plug-in free live view : Chrome, Edge, Opera, Safari
PoE Port
4 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet ports
PoE Standard
IEEE 802.3af
PoE Power
40W
Hardisk not supplied , sold seperately
HDD Interface
1 SATA 3.0 interface
Capacity
Up to 10 TB capacity for each HDD
USB Port
2 x USB 2.0
Power
51 VDC, 1.25 A
Dimension
200 mm 200 mm 48 mm
Weight (Without HDD)
510g (1.12lb)
Certification
CCC, CE, FCC, RoHS,UKCA
Installation Method
Desktop mounting, Wall mounting
Temperature
Operating temperature: 0 C - 40 C (32 F - 104 F)
Storage temperature: -30 C - 70 C (-22 F - 158 F)
Humidity
Operating humidity: 10% - 90% RH (non-condensing)
Storage humidity: 5% - 95% RH (non-condensing
Image Sensor
1/3" CMOS sensor
Max. Resolution
2560 x 1440
Day and Night
Built-in IR-CUT Dual Filters
Digital Noise Reduction
3D DNR
DWDR
Support
Backlight Compensation
Support
Fill Light
4 IR Lights
Infrared Fill Light Distance
Up to 50 meters (depending on environment)
Night Vision Mode
Infrared Mode
Lens Type
4 mm@F2.2
FOV
Horizontal FOV: 74.9 , Vertical FOV: 41.3 , Diagonal FOV: 88.2
Video Encoding Format
H.265, H.264
Main Stream
25fps (2560 1440),30fps(2304 1296, 1920 1080)
Sub Stream
25fps (640 360, 352 288, 320 240)
Audio Encoding Format
G.711A, G.711U
Audio Sampling Rate
8 kHz
Ethernet Port
1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port
Motion Detection
Support
Human Detection
Support
Video Tampering
Support
Audio Input
Built-in microphone
Dimension
85mm x 85mm x 166mm
Weight
204g
Protection Level
IP67
Installation Method
Pendant mounting, Wall mounting (with bracket)
Certification
CE, FCC, RoHS,UKCA
Temperature
Operating temperature: -10 C - 50 C (14 F - 122 F)
Storage temperature: -40 C - 70 C (-40 F - 158 F)
Humidity
Operating humidity: 10% - 95% RH (non-condensing)
Storage humidity: 3% - 95% RH (non-condensing)
What's in the box
1 x PoE Network Video Recorder
1 x Power adapter (51V 1.25A)
1 x Screw kit (NVR)
1 x Mouse
4 x PoE Camera
4 x Waterproof kit
4 x Camera bracket
4 x Screw kit (camera)
1 x Screwdriver
1 x HDMI cable
1 x Surveillance sticker
1 x 1 m Ethernet cable
2 x 18 m Ethernet cable
2 x 30 m Ethernet cable
1 x User manual
