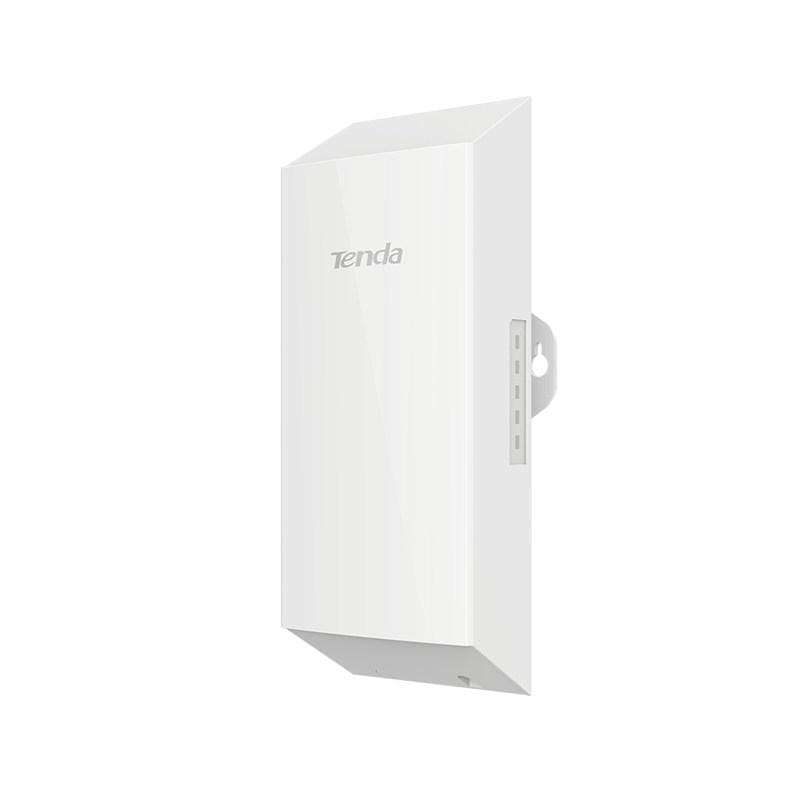

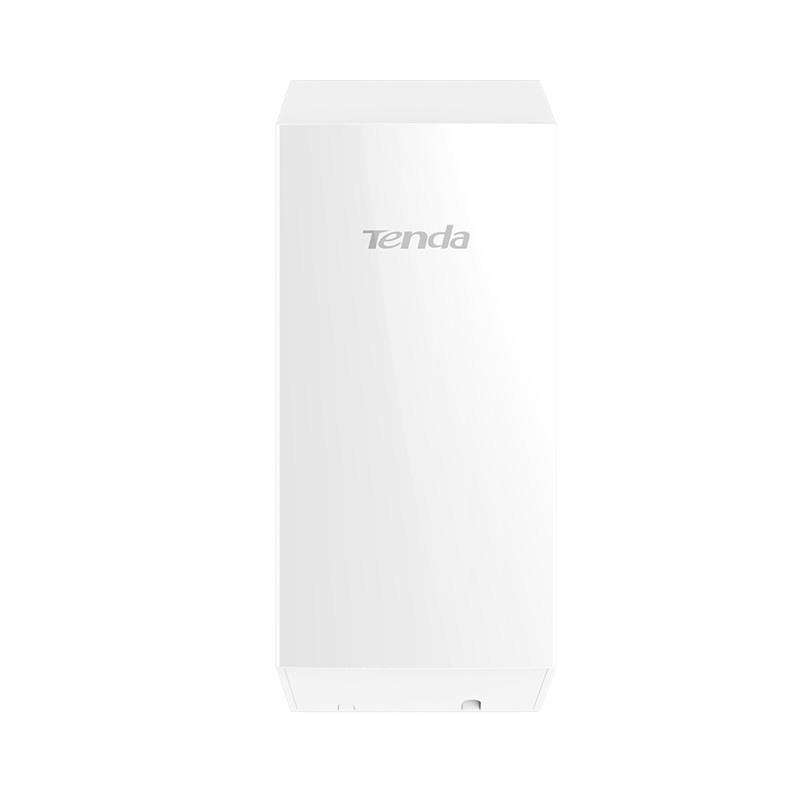

O1 2.4GHz Outdoor CPE is designed to WISP CPE solutions and long distance wireless network solutions for video surveillance and data transmission. It features with 8dBi directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network. Adopt of auto-bridging technology,two CPE can connect to each other automatically to make it easy to setup. 500m+ Wireless Data Transmission O1 integrates with a 8dBi directional antenna to provide an optimized transmission quality. It picks up and maintains a stable signal for a wireless network connection ranging up to 500 meters.
Specification
Dimension
193.5*80*67.5mm

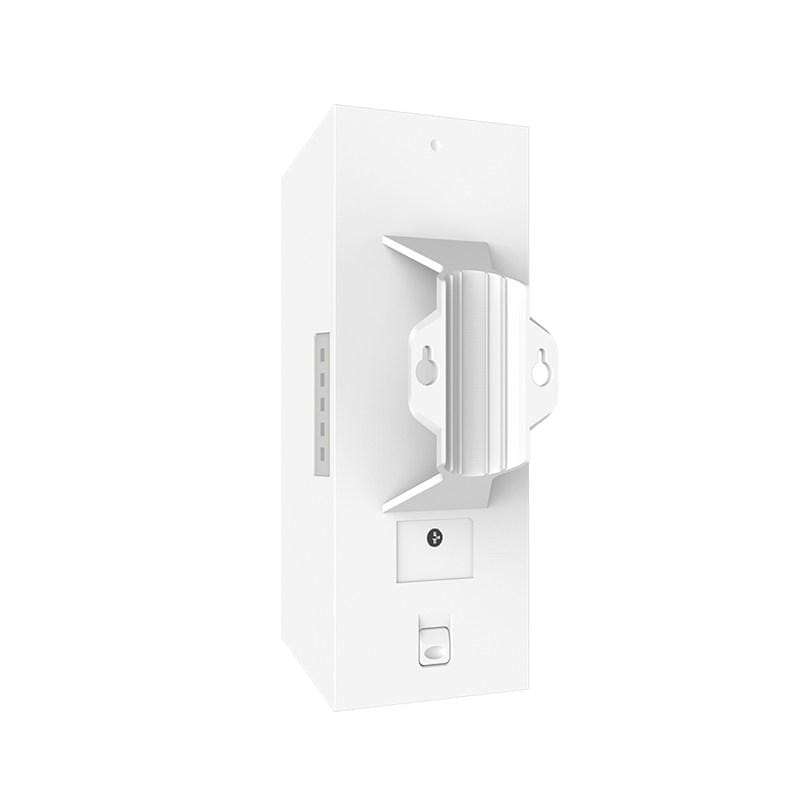

Deployment
Pole Mount/Wall Mount
Application Scenarios
PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance
Hardware
Frequency Range
2.4GHz
Compliant Standards
IEEE 802.11b/g/n
Maximum Wireless Rate
300Mbps

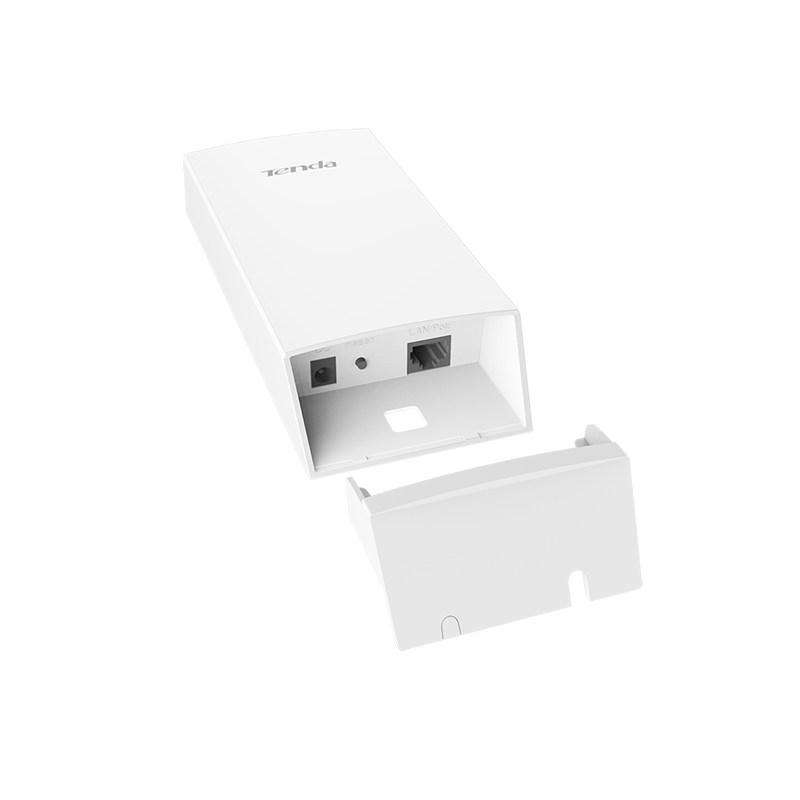

Interfaces
1*10/100Mbps Ethernet Port
Antenna Polarization
Dual Polarization
Antennas Gain
8dbi
Antenna Beamwidth
Horizontal: 60° Vertical: 60°
Reset Button
1*Reset Button
Power Consumption
2.6W
Waterproof Level
IP65
LED Indicator
PoE/LAN,WiFi, LED1,LED2,LED3
Power Method
9V0.6A Passive PoE
9V0.6A DC
Passive PoE
Passive power over ethenet via PoE/LAN (+4,5pins
-7,8pins)
Voltage range: 9-13.8V DC
Reception Sensitivity
11b 1Mbps -92dBm±1.5dBm
11n MCS0: -92±1.5dBm
11n MCS7: -72±1.5dBm
Software
Operating mode
AP/Station/WISP
Enable/Disable Wireless Radio
Support
SSID Hidden
Support
Wireless Client isolation
Support
SSID Isolation
Support
Channel Bandwidth
20/40MHz
Wireless Access Control
Support
Weak Signal Client Limitation
Support
Transmission Power
Adjustable power by 1dBm
WMM Capable
Support
APSD Capable
Support
Wireless Security
64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2
Transparent Bridge
Support
VLAN Tagging for SSID
Support
DHCP Server
Support
VPN Pass-Through
PPTP,L2TP
Remote Web access
Support
Schedule Reboot
Support
Page Timeout
Support
Ping Watchdog
Support
Dyndns
noip, dyndns.org
Network Diagnoses
Ping, Traceroute, Signal Scan
Time
Support
Firmware upgrade
Support
Backup/Restore Configuration
Support
Username Managerment
Support
System Logs
Support
Managed By Controller
PC Software CPE Assistant
Others
Package Contents
1*2.4GHz 11n 8dBi 300Mbps outdoor CPE O1
1*Power Adapter
1*PoE Injector
1*Quick Installation Guide
Operation Temperature
-30⃠~55 âƒ
Storage Temperature
-40⃠~ 70âƒ
Operating Humidity
10%~90% non-condensing
Storage Humidity
10%~90% non-condensing
Default login IP
192.168.2.1
Default Login Username
admin
Default Login Password
admin
Certification
FCC/CE/RoHS
