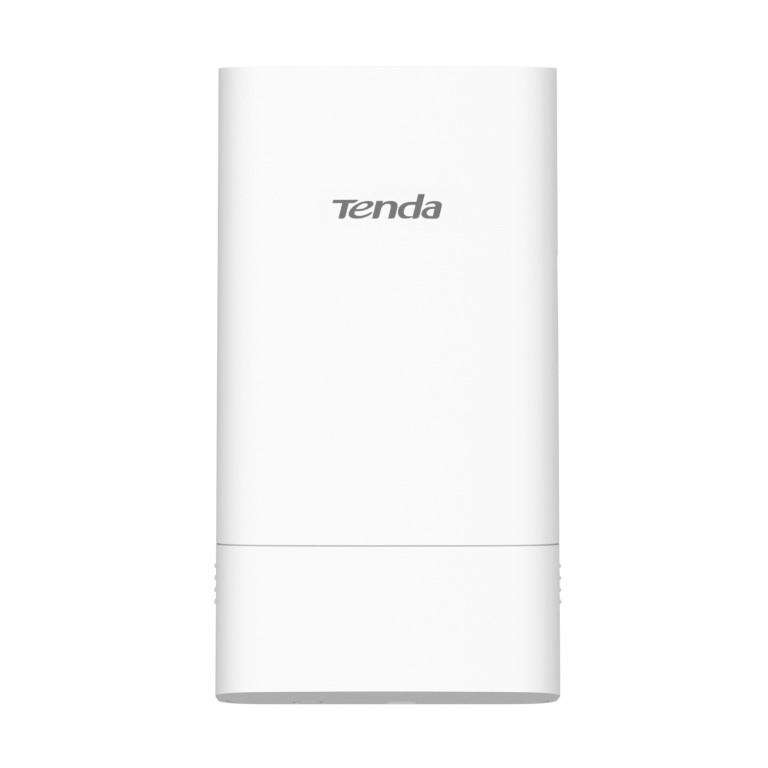

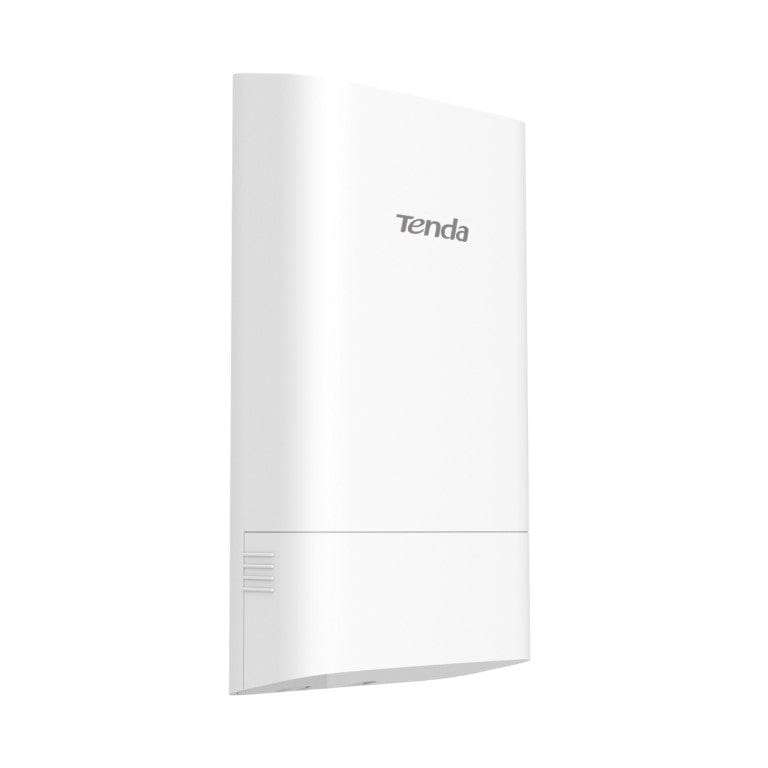

Tenda O1-5G 5GHz 9dBi 11AC 867Mbps Outdoor CPE
O1-5G 5GHz Outdoor CPE is designed to PtP&P2MP solutions for video surveillance transmission and wireless broadband access. Adopts of 11ac wireless technology, the maximum wireless rate can be up to 867Mbps. It features with 9dBi dual polarization directional antenna to provide an efficient way to pick up and maintain a stable long range connection.
Main Features
- 5GHz 11AC 867Mbps
- 9dbi directional antenna
- One Fast Ethernet Port
- IP65 waterproof enclosure
- 12V 1A DC/12V 1A Passive PoE supported
1+km transmission range
O1-5G adopts of internal power amplifier and 9dBi directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network up to 1km.
Flexible power supply method enable it easy to deployment
O1-5G supports 12V 1A Passive PoE and 12V 1A DC power supply option. It helps the engineer to deploy the device flexiblely.
Auto-bridge technology enable it to easy setup
O1-5G supports auto-bridge technology, It enables the CPE or basestation in factory default settings to connect to each other automaticaly after the device is powered on. It is very useful for the person who is not familiar with network knowledge, especially for CCTV surveillance transmission application.
Easy to Setup and Manage
O1-5G comes with a centralized management software that helps users easily to manage all the devices in the network from a single PC-CPE Assistant.
Professional Outdoor Design
Equipped with IP65 waterproof enclouse and high quality hardware design, O1-5G can work in various weather conditions, such as sunshine, rainfall or extremely low/high temperature environment.
Multiple Application Scenarios
- PtP Connection For CCTV Transmission
- PtP Connection For internet sharings
- Wireless Internet Access for Private ISP
Technical Specification
Product: Tenda O1-5G 5GHz Outdoor CPE

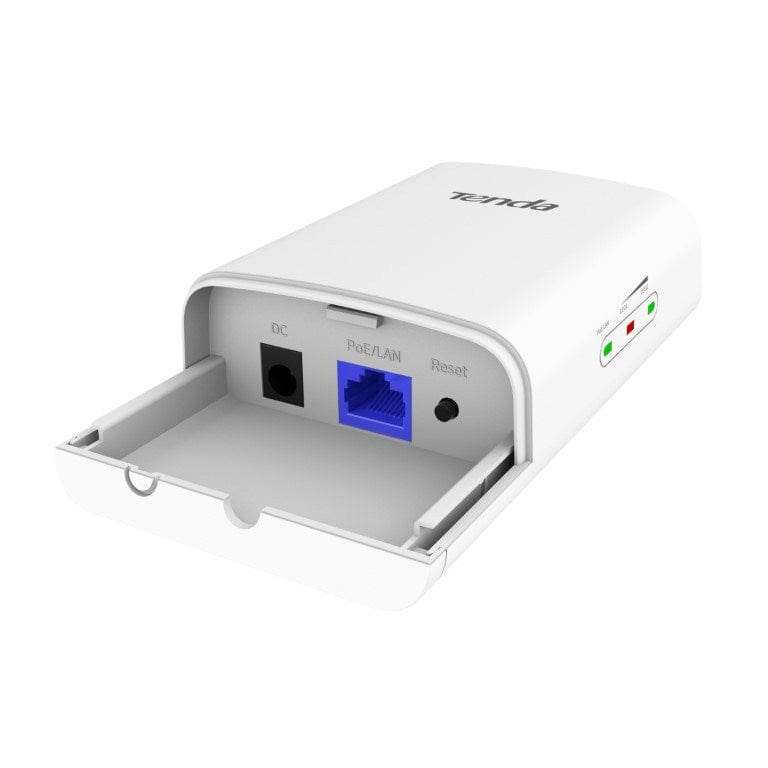

Interfaces: 1x 10/100Mbps LAN Port
Frequency Range: 5GHz
Compliant Standards: IEEE 802.11a/n/ac
Maximum Wireless Rate: 867Mbps
Antenna Polarization: Dual Polarization
Antennas Gain: 9dBi
Antenna Beamwidth: Horizontal: 30° Vertical: 30° Elevation: 30°
Waterproof Level: IP65
Power Method: 12V 1A Passive PoE ; 12V 1A DC
Passive PoE
Operating mode: AP/Station
Dimension: 132 x 72 x 46.3mm

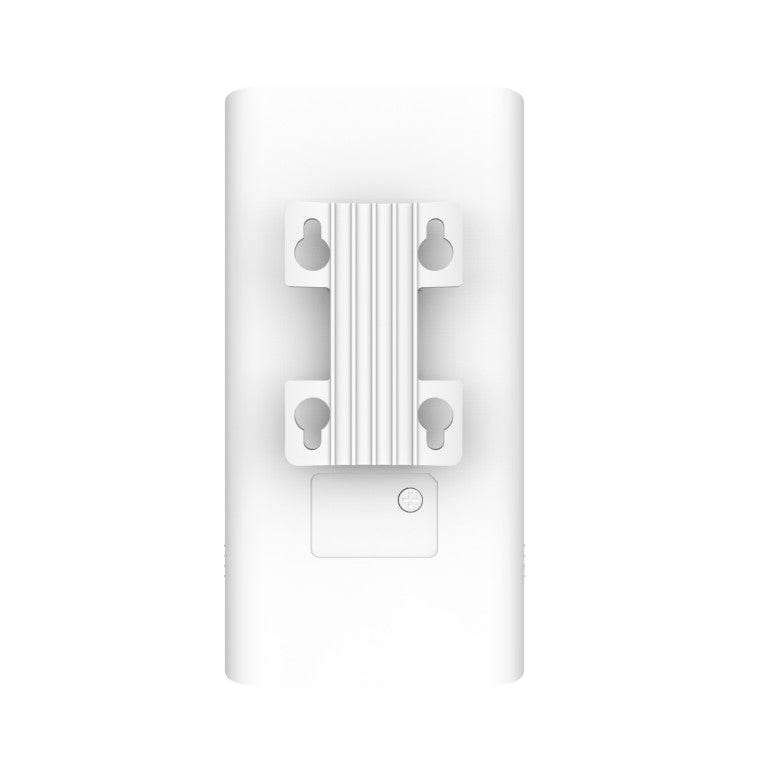

Deployment: Pole/Wall Mountable
Package Contents
- 1x 5GHz 9dBi 11AC 867Mbps Outdoor CPE
- 1x Power Adapter
- 1x PoE Injector
- 1x Quick Installation Guide
