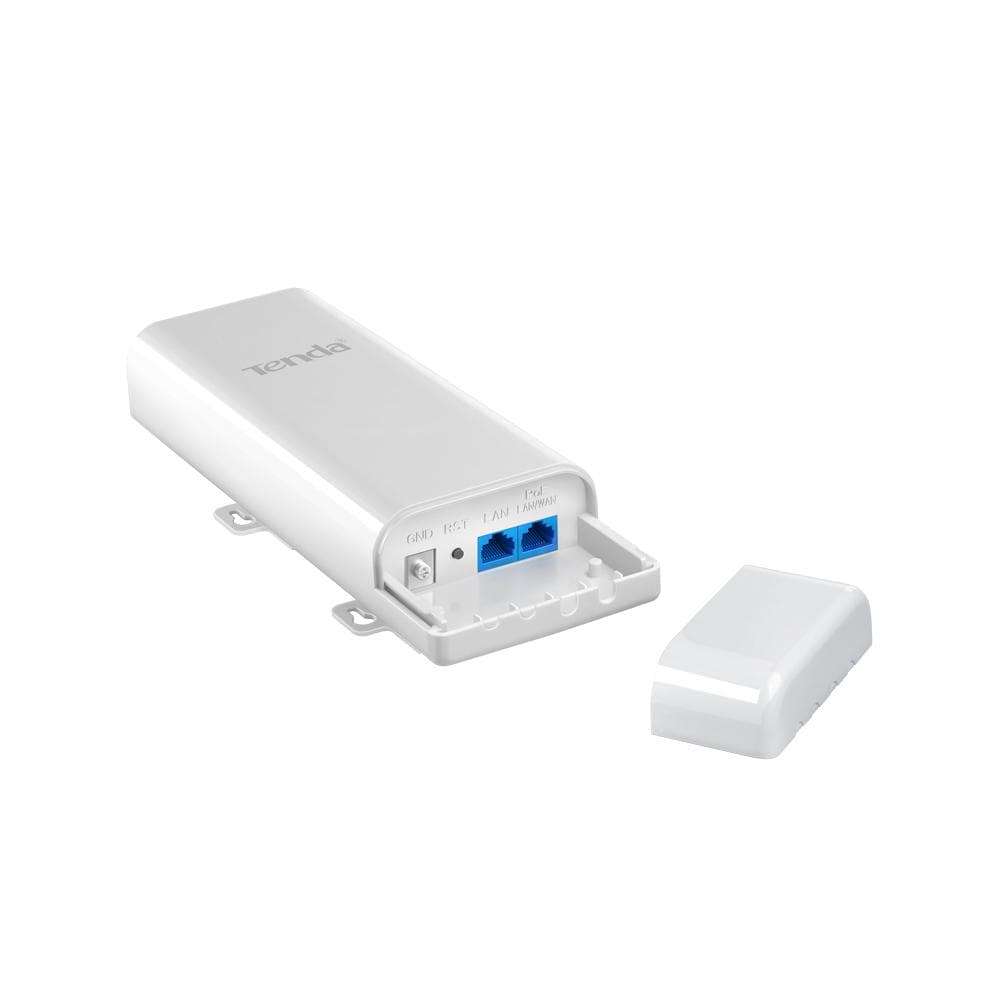

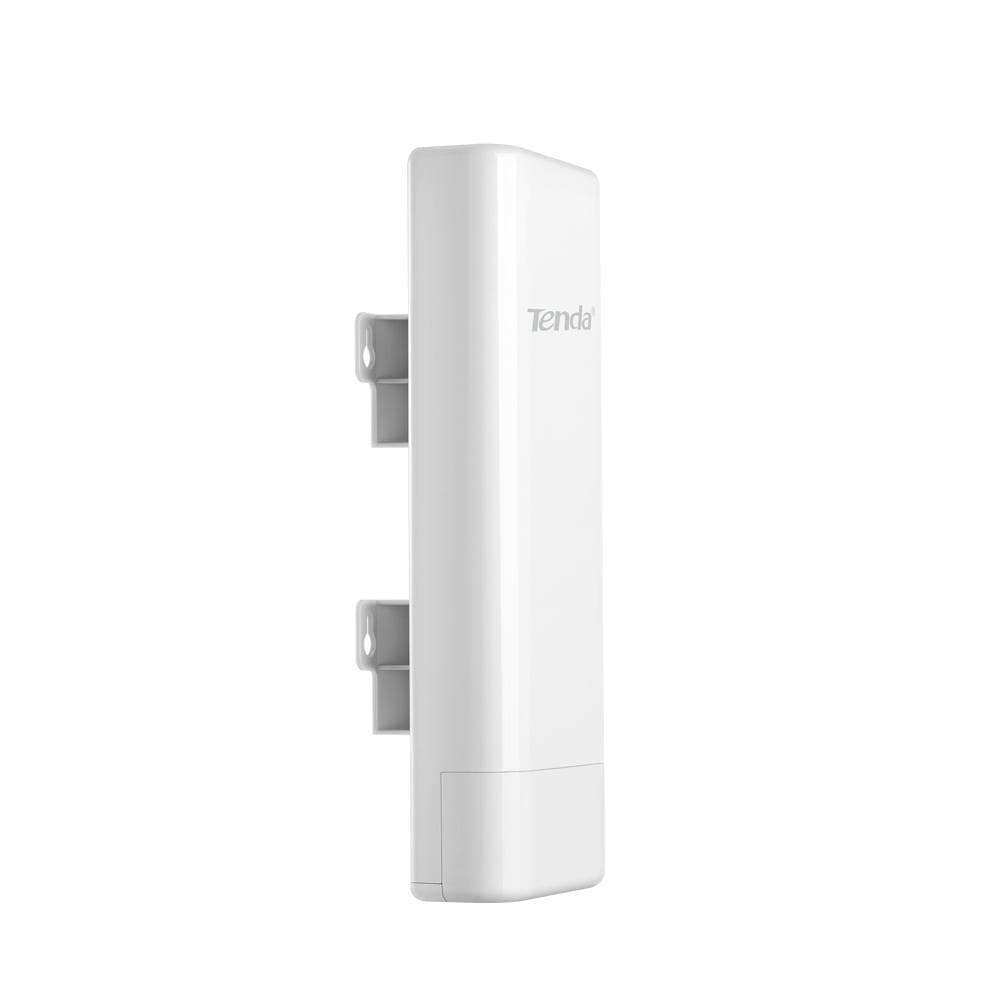

Tenda O3 2.4GHz 150Mbps Outdoor Point To CPE
Tenda O3 2.4G outdoor long range access point is designed to WISP CPE solutions and long distance wireless network solutions for video surveillance and data transmission. It features up to 800mW wireless transmission power and has a built-in 12dBi directional dual-polarized antenna which provides an efficient way to pick up and maintains a stable signal for a wireless network connection ranging multiple kilometers. - 2.4G 150Mbps - IP64 waterproof enclosure - 12dBi directional dual polarized antenna - AP, Station, WISP etc operating mode supported - Up to 60 meters of flexible deployment with included PoE Injector
5km+ Data Transmission
O3 is designed for outdoor long distance wireless data transmission. Adopting of 800mW external power amplifier and 12dBi directional antenna to achieve 5km+ transmission range.
Professional Outdoor Design
Equipped with IP64 waterproof enclouse and 6kV lightning protection capability, O3 can work in various weather conditions, such as sunshine, rainfall, wind, snow or extremely low/high temperature environment.
Dimension
270*94.86*67.5mm
Deployment
Pole Mount/Wall Mount
Application Scenarios
PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance
Specification
Frequency Range
2.4GHz
Compliant Standards
IEEE 802.11b/g/n
Maximum Wireless Rate
150Mbps
Interfaces
2*10/100Mbps Ethernet Port
Antenna Polarization
Horizational Polarization
Antennas Gain
12dbi
Antenna Beamwidth
Horizontal: 60° Vertical: 30°
GND
1*GND
Reset Button
1*Reset Button
Power Consumption
4.3W
Waterproof Level
IP65
LED Indicator
PoE/LAN,LED1,LED2,LED3
Power Method
12V1A Passive PoE
Lightning Protection
6000V
Passive PoE
Passive power over ethenet via PoE/LAN (+4,5pins
-7,8pins)
Voltage range: 9-13.8V DC
Reception Sensitivity
11b 1Mbps -92dBm±1.5dBm
11n MCS0: -92±1.5dBm
11n MCS7: -72±1.5dBm
Software
Operating mode
AP/Station/WISP/P2MP/WDS Repeater/Router
Enable/Disable Wireless Radio
Support
SSID Hidden
Support
Wireless Client isolation
Support
SSID Isolation
Support
Channel Bandwidth
20/40MHz
Wireless Access Control
Support
Weak Signal Client Limitation
Support
Transmission Power
Adjustable power by 1dBm
WMM Capable
Support
APSD Capable
Support
Wireless Security
64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2
Transparent Bridge
Support
VLAN Tagging for SSID
Support
DHCP Server
Support
VPN Pass-Through
PPTP,L2TP
Remote Web access
Support
Schedule Reboot
Support
Page Timeout
Support
Ping Watchdog
Support
Dyndns
noip, dyndns.org
Network Diagnoses
Ping, Traceroute, Signal Scan
Time
Support
Firmware upgrade
Support
Backup/Restore Configuration
Support
Username Managerment
Support
System Logs
Support
Managed By Controller
PC Software CPE Assistant
Others
Package Contents
1*2.4GHz 11n 12dBi 150Mbps outdoor CPE O3
1*Power Adapter
1*PoE Injector
1*Quick Installation Guide
Operation Temperature
-30℃ ~ 60℃
Storage Temperature
-40℃ ~ 70℃
Operating Humidity
10%~90% non-condensing
Storage Humidity
10%~90% non-condensing
Default login IP
192.168.2.1
Default Login Username
admin
Default Login Password
admin
Certification
FCC/CE/RoHS
