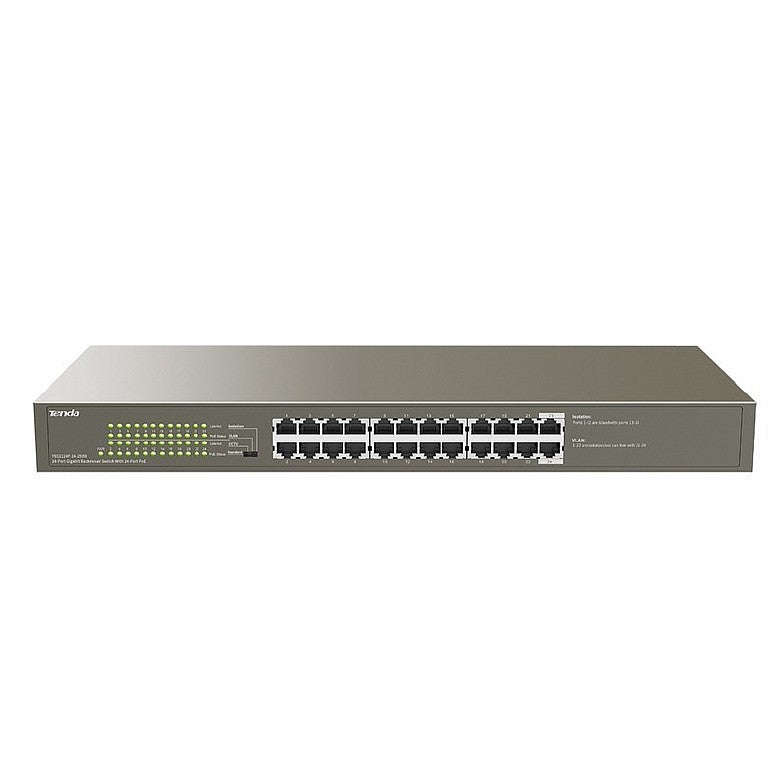

Tenda PoE 24-Port Gigabit Ethernet Switch With 24-Port PoE

TEG1124P-24-250W is a Tenda PoE switch that o ers 24 10/100/1000 Mbps Base-TX RJ45 ports. Ports 1-24 comply with the IEEE 802.3af standard (maximum PoE power output: 15.4 W) and 802.3at standard (maximum PoE power output: 30 W). The switch offers a maximum PoE power output of 225 W and can supply power to and exchange data with APs, IP cameras, and IP phones through CAT5 cables. It also provides simple management modes such as CCTV, VLAN, and Isolation to help reduce the cabling costs of IP terminals like APs and IP cameras

In real projects, a APs and cameras are often installed outdoors or at an elevated location, which increases the chance of lightning strikes on cameras and PoE-powered switches. The result is that individual devices are damaged when the outcome is light, and even the whole local area network is damaged. Tenda TEG11 series switches have a professional lightning protection design 6KV Lightning Protection for Ports and the power, and they have two levels of protection design respectively, which effectively suppresses the lightning current from the network cable and power supply, equivalent to adding a security wall to the entire network monitoring system. The test standard is much higher than the national CCC request. In the thunderstorm, Tenda TEG11 series switches can also provide a stable and reliable service to the surveillance network and guarantee the normal transmission of the picture.

CCTV: In this mode, the port cache is optimized and PoE ports 1-8 have higher priorities over the other ports. All the ports of the switch can communicate with each other. If multiple IP cameras are connected to the switch, you are recommended to enable this mode and connect the uplink port of the switch to the upstream device which the monitoring computer connects. This ensures smoother monitoring of video playback.
Standard: he switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.
VLAN: ports 1 to 22 of TEG1124P-24-250W are isolated from each other, but can communicate with ports 23 and 24 (uplink ports) respectively. Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing.
Isolation:ports 1 to 12 and Ports 13 to 24 of TEG1124P-24-250W belong to two different VLAN.This mode can be used to isolate supervision network and wireless network to make them not interfere with each other.
