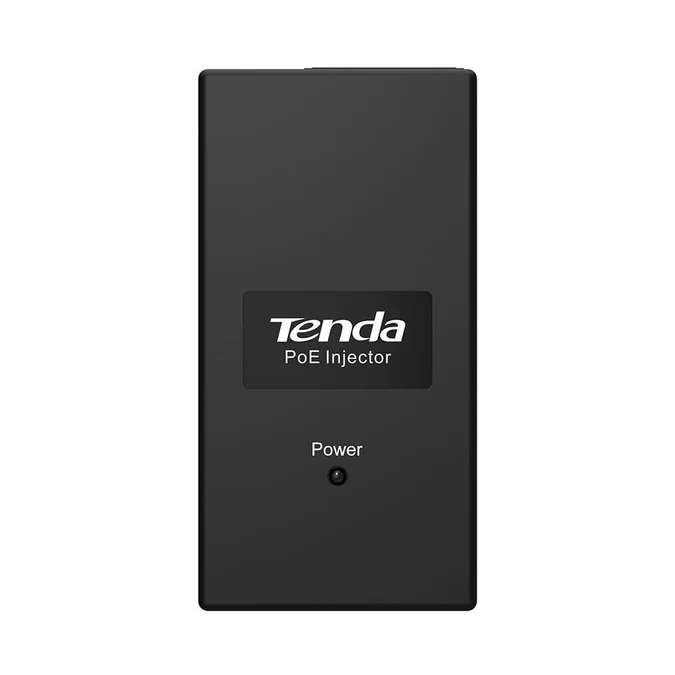

Tenda POE15F PoE Adapter Fast Ethernet 48 V

Tenda POE15F PoE Adapter Fast Ethernet 48 V

The PoE injector PoE15F can realize synchronous delivery of device network data and power via one Ethernet cable. The output power of per port is up to 15W, which can serve as an outlet for a PoE device. You can connect PoE15F to an IEEE 802.3af compliant PD, such as wireless AP, IP camera, IP phone, etc. In a sense, it is a good choice for you to reduce the installation cost and improve the network perfor. - Delivers power and data through one Ethernet cable for easy network extension; - Compatible with IEEE 802.3af compliant powered devices; - PoE Port Delivers power up to 100 meters; - Plug and Play, no configuration required.

Power Over Ethernet

One PoE port to power connected devices for flexible network deployment.

IEEE 802.3af compliant

Compatible with IEEE 802.3af compliant powered devices.

Extend Power Supply

Distance of power transmission via Ethernet cable is up to 100 meters.

Plug and Play

Hassle-free setup, no configuration required.

Specification

Network standards

IEEE802.3ãIEEE802.3u

LED Indicator

Link/Act , PoE Status

Interfaces

1*10/100 Base-TX Ethernet ports(Data/PoE)
1*10/100 Base-TX Ethernet ports(Data)

Transmission media

Recommended: CAT5/5e UTP or better

Dimension

84.5mm*44mm*29.8 mm

Level of protection

ESD:
Air discharge: ±10kV
Contact discharge: ±8kV

Forwarding mode

Store-and-forward

Transmission Rate

100Mbps

PoE budget

Single port: AF: 15.4W
Whole device: 15W

Power consumption

15W

Input voltage

100－240V AC 50/60Hz
48V/0.3A DCï¼Power Adapter Outputï¼

Mounting

Desktop mounting: support

Environment

Operating Temperature: 0âƒ~45âƒ
Storage Temperature: -40âƒ~70âƒ
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
