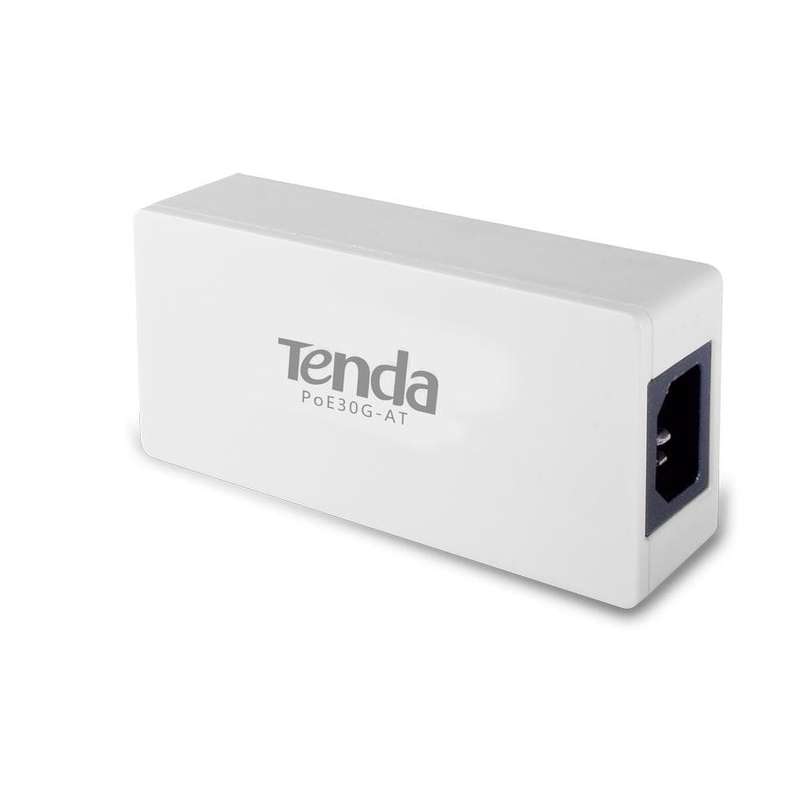

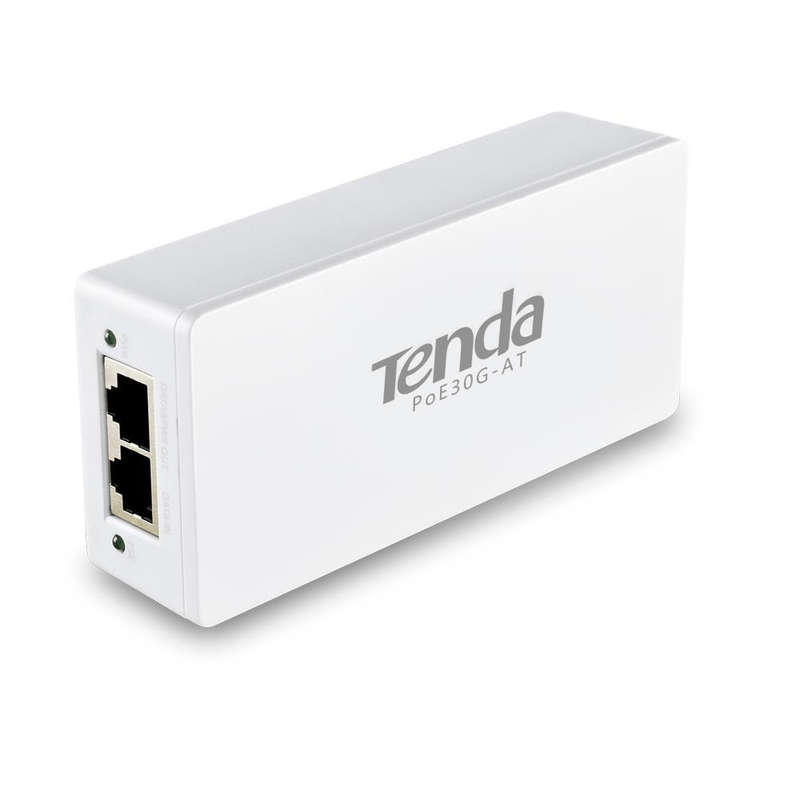

Tenda POE30G-AT PoE adapter Gigabit Ethernet
What It Does
PoE30G-AT PoE Injector delivers up to 30W output power per port. By using this device, both data and electrical power can be simultaneously delivered through a single CAT5 (or better) Ethernet cable to a non-PoE Ethernet-enabled device, eliminating the trouble to connect it to an outlet nearby with an external power cord. You can connect it to a wireless AP, Web cam (IP Camera), IP telephone, or other devices for the purpose of reducing installation cost and improving your network performance.
PoE Feature:
Support IEEE802.3af, IEEE802.3at standard; - Auto-detects and provide power supply to PD equipment which compliant with IEEE802.3af at standard; - Power consumption one port up to 30W.
Interface Features:
Compliant with IEEE802.3,IEEE802.3u,IEEE802.3ab,IEEE802.3af,IEEE802.3at Ethernet standard; - 2 RJ-45 Gigabit ports support 10/100/1000Mbps connecting rate; - Date&Power Out port support PoE.
Product Features:
Integrated design and easy installation; - Plug and play, no need to setup; - GE transmission rate for wide use.
Fireproofing Features:
Fireproofing level of case up to 94V0.
Specification
Network standards
IEEE802.3ã IEEE802.3u ãIEEE802.3abãIEEE802.3afã IEEE802.3at
LED Indicator
PWR, PoE
Interfaces
1*10/100/1000 Base-T Ethernet Port(Data/PoE)
1*10/100/1000 Base-T Ethernet Port(Data)
Transmission media
Recommended: CAT5/5e UTP or better
Dimension
132.3mm*60mm*33mm
Level of protection
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV
Forwarding mode
Store-and-forward
Transmission Rate
1000Mbps
PoE budget
Single port: AF: 15.4W, AT: 30W
Whole device: 30W
Power consumption
30W
Input voltage
100ï¼240V AC 50/60Hz
51V/0.8A DCï¼Power Adapter Outputï¼
Mounting
Desktop mounting: support
Environment
Operating Temperature: 0âƒ~45âƒ
Storage Temperature: -40âƒ~70âƒ
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Certification
FCCãCE ãRoHSãUL
