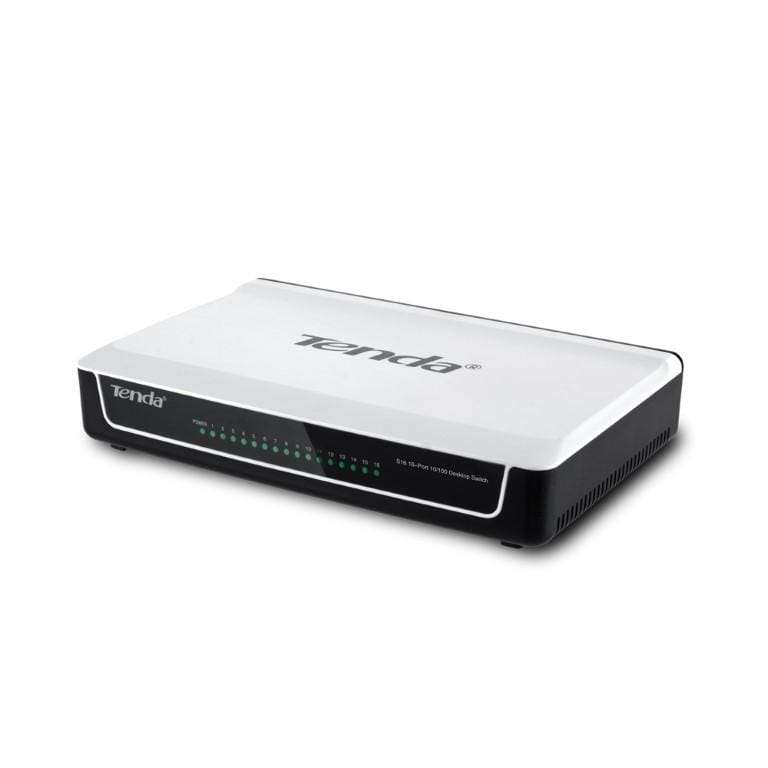

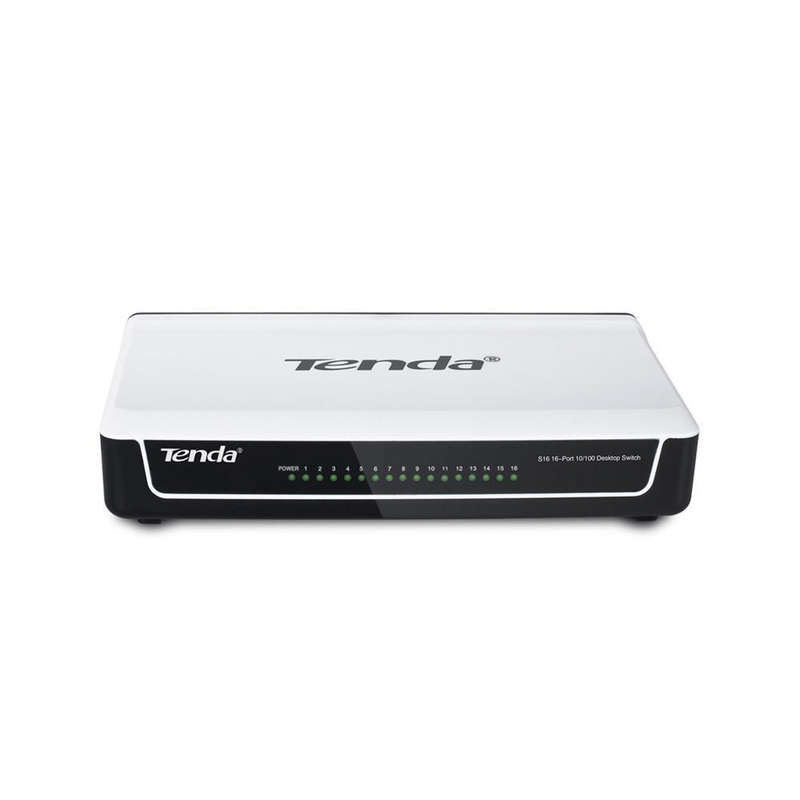

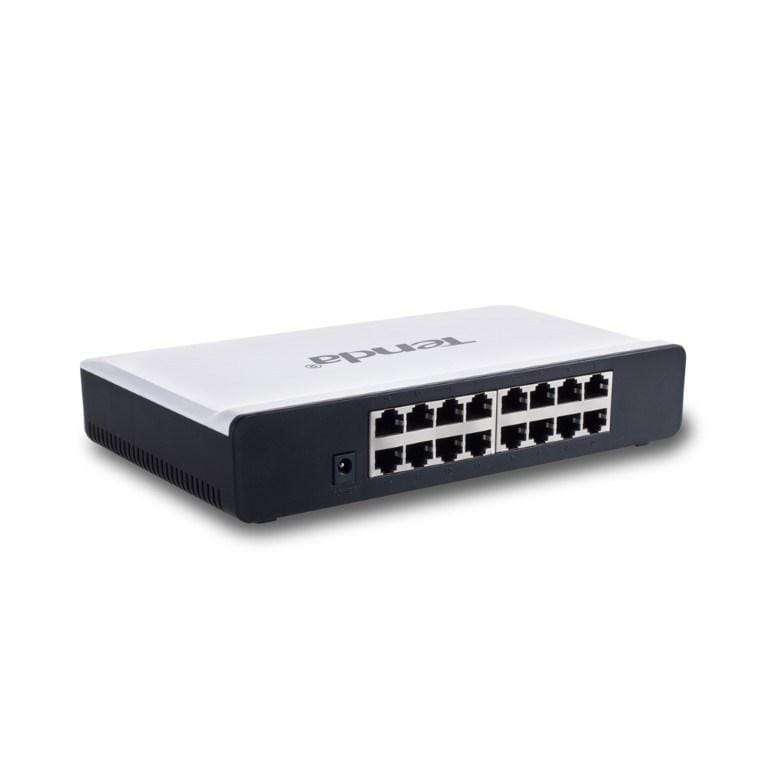

The Tenda S16 16-Port 10/100 Switch provides simple and ideal solution to expand network for large home, building, leased or rented house and SMB. Connect this 16-port switch to a router and add up to fifteen additional computers or other Ethernet-based devices such as a printer, Network-Attached Storage (NAS), or Internet camera to increase the functionality of your network. Housed in sturdy plastic case with compact size, it is ideal for desktop installation. The switch is solidly built in small size that is easy to position on any flat surface with limited space. Housed in a sleek and stylish case, the switch blends in nicely with SOHO and SMB. The switch is built with reduced heat and a longer product life without sacrificing performance or functionality in mind. With superb heat dissipation capability and manufactured with fire proof materials, the switch maintains optimum performance even in extreme environment. Each port on the switch can automatically figure out if the link needs a straight-through or cross-over connection, and make the right choice, eliminating the need for toggle switches or special crossover cables. Plus, the switch adopts the store-and-forwarding forwarding mode and auto-learns/-updates MAC addresses to improve your network performance.
Specification
Network standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
LED Indicator
1* Power, 16* Link/Act
Interfaces
16*10/100 Base-TX Ethernet ports (Auto MDI/MDIX)
Transmission media
Recommended: CAT5/5e UTP or better
Fan quantity
N/A
Dimension
218.0mmx135.0mmx41.6mm
Material
Plastic
Level of protection
ESD:
Air discharge: ±8kV
Contact discharge: ±6kV
Forwarding mode
Store-and-forward
Switch capacity
3.2Gbps
Packet forwarding rate
2.38Mpps
Buffer
1.25Mb
MAC address table
4K
Jombo frame
N/A
Power
Input: 100-240V AC 50/60Hz
Output: 9V 0.6A (External power adapter)
Mounting
Desktop mounting: support
Wall mounting: support
Rack mounting:non-support
Environment
Operating temperature: 0°C - 45âƒ
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%) RH, non-condensing
Storage humidity: (5% - 90%) RH, non-condensing
Certification
CE, FCC, RoHS
Software
Protocols
CDMA/CD
MAC address learning
Auto-Learning and Auto-Aging
Funtions
plug-and-play
