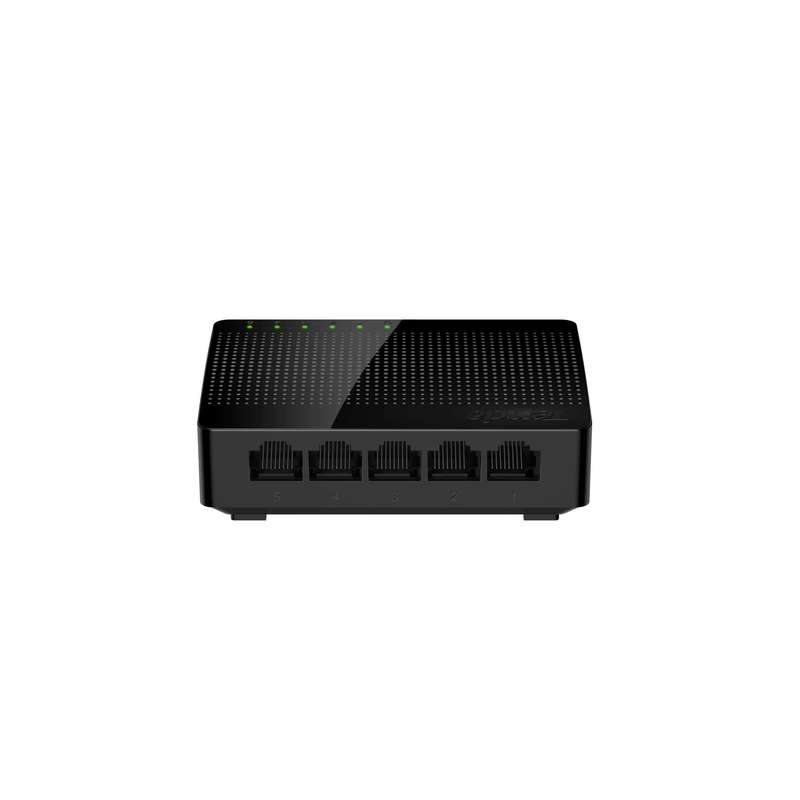

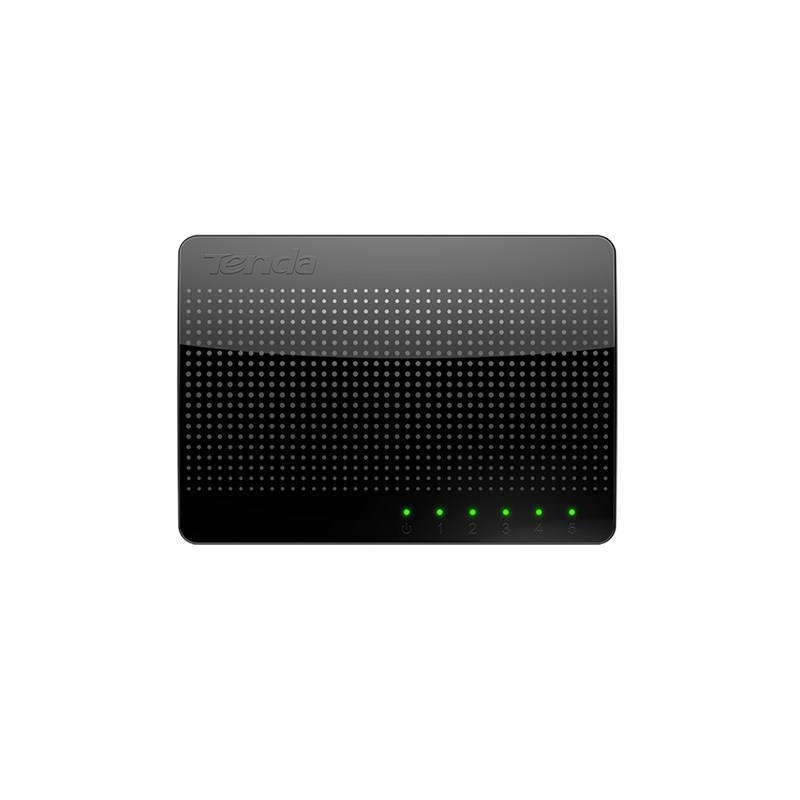

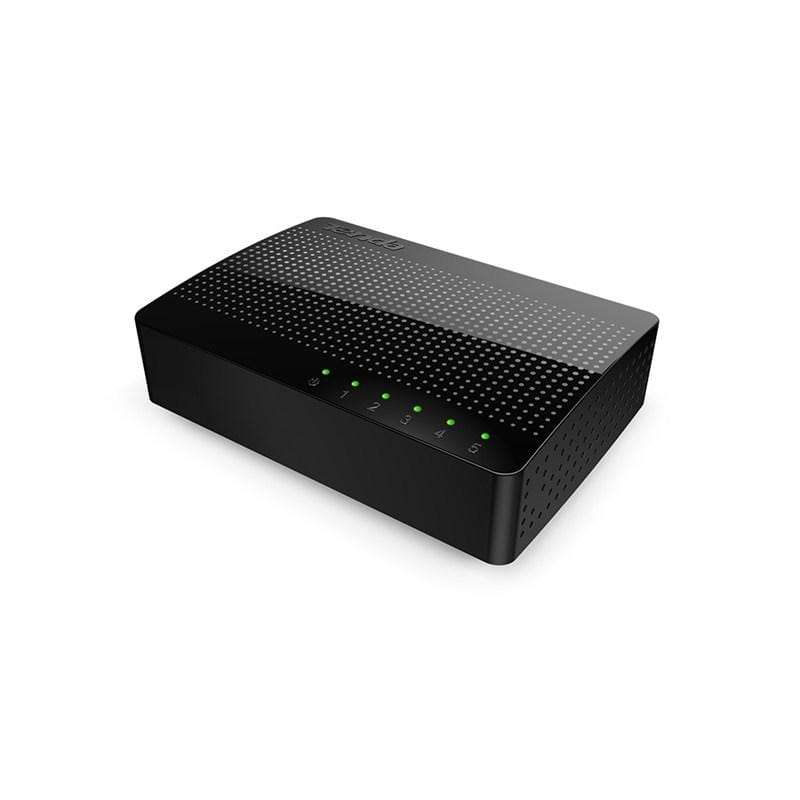

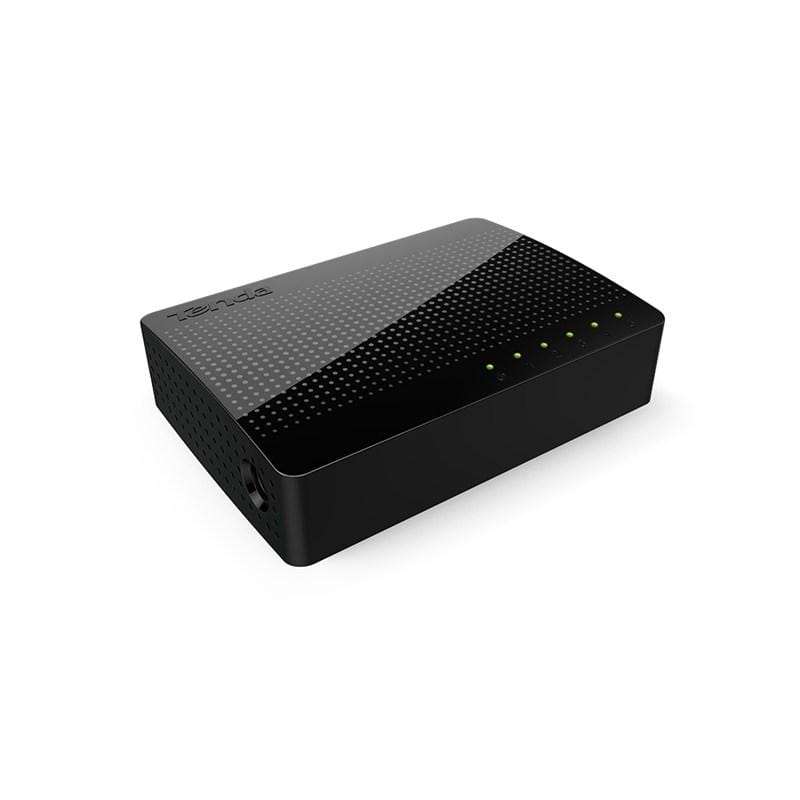

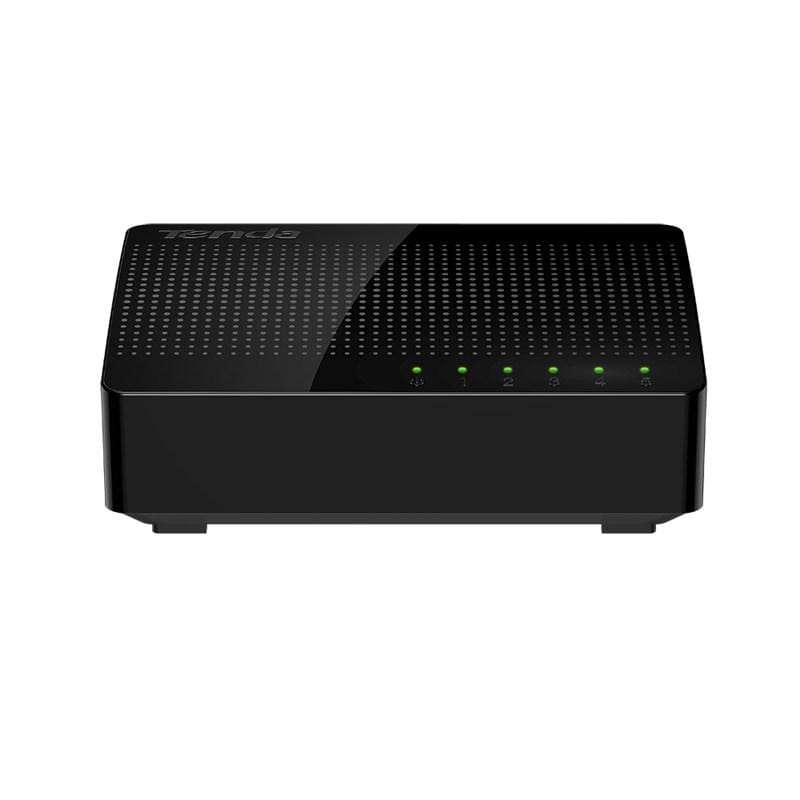

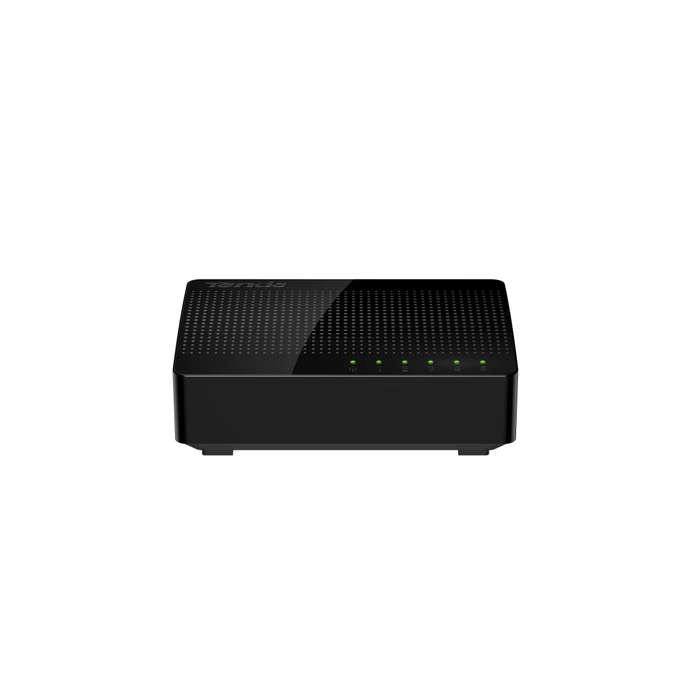

Tenda SG105 Unmanaged Switch Gigabit Ethernet Black

Discover 22,000+ In-Stock Products!

https://www.bobshop-/store/FirstShop

Brand New & Sealed with Manufacturer Warranty!

Available: Mon—Fri, 08:00—17:00 - Closed on weekends & public holidays

SG105 is a 5-Port Gigabit Desktop SOHO switch. It provides 5 10/100/1000Mbps auto-negotiation ports, which you can use to establish a LAN network, or extend the uplink network. Compared with a 100M switch, it enhances transmission speed up to 10 times, eliminating the bottleneck of cascading bandwidth. It supports desktop installation and wall-mounting. Without configuration, it can be played once plugged.
With the stable connectivity and easy-to-use features, it is perfectly fit for the networking of school dormitories, small offices, home offices and Video Surveillance.

Specification

Network standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab

LED Indicator

1* Power, 5* Link/Act

Interfaces

5*10/100/1000 Base-T Ethernet ports (Auto MDI/MDIX)

Transmission media

Recommended: CAT5/5e UTP or better

Fan quantity

N/A

Dimension

93.0mm×66.0mm×23.0mm

Material

Plastic

Level of protection

ESD:
Air discharge: ±8kV
Contact discharge: ±6kV

Forwarding mode

Store-and-forward

Switch capacity

10Gbps

Packet forwarding rate

7.44Mpps

Buffer

1Mb

MAC address table

2K

Jombo frame

N/A

Power

Input: 100-240V AC 50/60Hz
Output: 5.0V 0.6A ( External Power Adapter )

Power consumption

Max:<1.7W

Mounting

Desktop mounting: support
Wall mounting: support
Rack mounting:non-support

Environment

Operating temperature: 0°C - 45âƒ
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%) RH, non-condensing
Storage humidity: (5% - 90%) RH, non-condensing

Certification

CE, FCC, RoHS

Software

Protocols

CDMA/CD

MAC address learning

Auto-Learning and Auto-Aging

Funtions

plug-and-play
