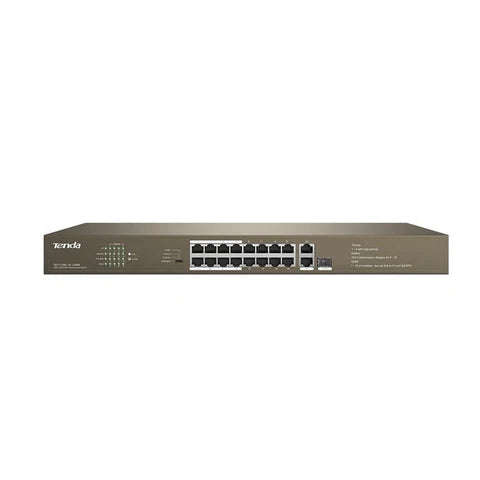

Tenda Switch 16 POE 10/100 250W Rack

The Tenda TEF1118P-16-250W is an unmanaged 16-port Fast Ethernet switch designed for small to medium-sized networks requiring reliable PoE connectivity. With sixteen 10/100 Mbps PoE ports compliant with IEEE 802.3af/at standards, it delivers up to 30W per port and a total PoE power budget of 250W, making it ideal for powering devices such as IP cameras, wireless access points, and VoIP phones. The switch features a 250-meter extend mode, surpassing the standard 100-meter Ethernet limitation, facilitating long-distance deployments without additional equipment. Its 6KV lightning protection ensures robust operation in challenging environments. Additionally, the TEF1118P-16-250W offers VLAN functionality to enhance network security and performance.

Key Features

• 16 PoE Ports: Sixteen 10/100 Mbps RJ45 ports with IEEE 802.3af/at compliance, delivering up to 30W per port.

• High PoE Power Budget: Total PoE power output of 250W, suitable for multiple PoE-enabled devices.

• Dual Uplink Ports: Two 10/100 Mbps RJ45 uplink ports for connecting to the core network.

• 250M Extend Mode: Enables long-distance data and power transmission up to 250 meters.

• VLAN Support: Isolates ports 116 from each other while maintaining communication with the uplink ports, enhancing network security.

• 6KV Lightning Protection: Protects the switch from power surges and lightning strikes.

• Plug-and-Play: No configuration required; simplifies installation and deployment.

Technical Specifications

• Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af/at
  Interfaces: 16 × 10/100 Mbps RJ45 ports (Data/Power), 2 × 10/100 Mbps RJ45 uplink ports (Data)

• Transmission Media: CAT5/5e UTP or better

• MAC Address Table: 4K entries

• Switching Capacity: 3.2 Gbps

• Forwarding Mode: Store-and-forward

• Packet Buffer Memory: 1.25 Mb

• Lightning Protection: 6KV for ports, 4KV for power inputs

• Power Supply: Input: AC 100240V~50/60Hz; Output: DC 51V?4.9A (Power Adapter)

• Dimensions: 440 mm × 180 mm × 44 mm

• Mounting Options: Desktop or rack-mountable

• Operating Temperature: 0°C to 45°C

• Storage Temperature: -40°C to 70°C

• Operating Humidity: 10% to 90% RH non-condensing

• Storage Humidity: 5% to 90% RH non-condensing
