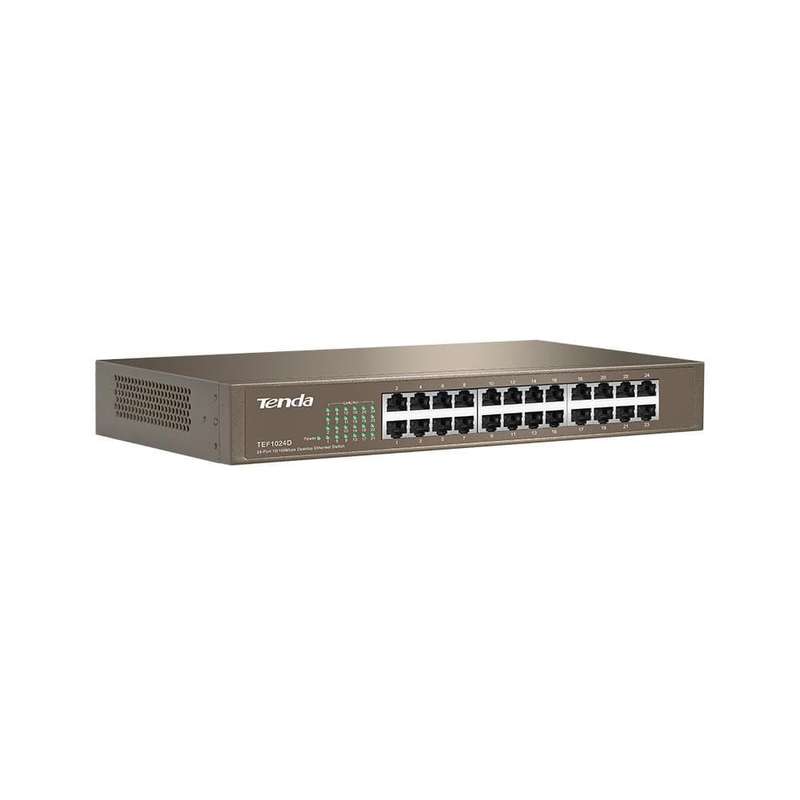

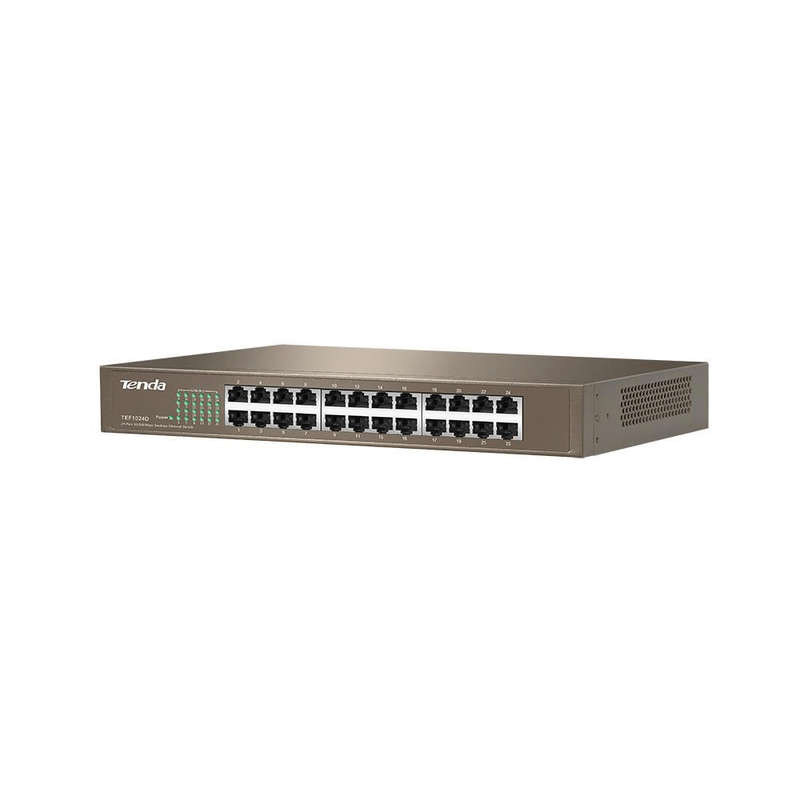

Tenda TEF1024D Unmanaged Switch Fast Ethernet Beige
The Tenda TEF1024D 24-Port 10/100 Switch is specially engineered to provide simple solution to expand SMB networks and campus networks at the best possible cost. Connect this 24-port switch to a router and add up to twenty three more computers or other Ethernet-based devices such as a printer, Network-Attached Storage (NAS), or Internet camera to increase the functionality of your network. Housed in sturdy metal case, it is ideal for years of dependable use. Main Features - 24 Autosensing 10/100Mbps switched ports with auto MDI/MDI-X crossover detection - Up to 200Mbps full duplex bandwidth on each port - Sturdy metal case ideal for years of dependable use - 8K MAC address table with address Learning and Aging, and Data Flow Control for enhanced transmission - Support 6000V lightning protection for power supply - Support standard 13/19 inch rack-mountable - Support Plug and Play,without any configuration
Space-saving Design for Desktop & Rack Installation
The switch is solidly housed in a compact and slim metal case that is easy to position on any flat surface with limited space like desktop or mount into a rack. Plus, the device features an internal high performance switching power supply.
Standards & Protocols Compliance
Fully compliant with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX.
Stable & Reliable Performance
Dynamic buffering helps balance network load, prevent frame drop and automatically check error frames, ensuring data integrity.
Inductive Lightning Protection
Integrating professional circuits, Tenda New 24-Port Unmanaged Fast Switch can protect the power supply from inducive lightning (6KV in Common Mode Protection).
Plug & Play
The switch is a Plug-and-Play device that requires no configuration or software. Once you connect the hardware, the switch is operating! Each port is able to autosense half/full duplex mode and auto detect MDI/MDI-X crossover.
Specification
Network standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
LED Indicator
1* Power,24* Link/Act
Interfaces
24*10/100 Base-TX Ethernet ports (Auto MDI/MDIX)
Transmission media
Recommended: CAT5/5e UTP or better
Fan quantity
N/A
Dimension
294.0mmx180.0mmx44.0mm
Material
Metal
Level of protection
Lightning protection for ports: N/A
Lightning protection for power: 6KV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV
Forwarding mode
Store-and-forward
Switch capacity
4.8Gbps
Packet forwarding rate
3.57Mpps
Buffer
2.5Mb
MAC address table
8K
Jombo frame
N/A
Power
Input: 100-240V AC 50/60Hz
Power consumption
Max:<6W
Mounting
Desktop mounting: support
Wall mounting: support
Rack mounting : support
Environment
Operating temperature: 0°C - 45âƒ
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%) RH, non-condensing
Storage humidity: (5% - 90%) RH, non-condensing
Certification
CE, FCC, RoHS
Software
Protocols
CDMA/CD
MAC address learning
Auto-Learning and Auto-Aging
Funtions
plug-and-play
