Dedicated for Surveillance With Uplink & NVR double uplink ports and QoS
Dual uplink port, more convenient for connecting Router and NVR

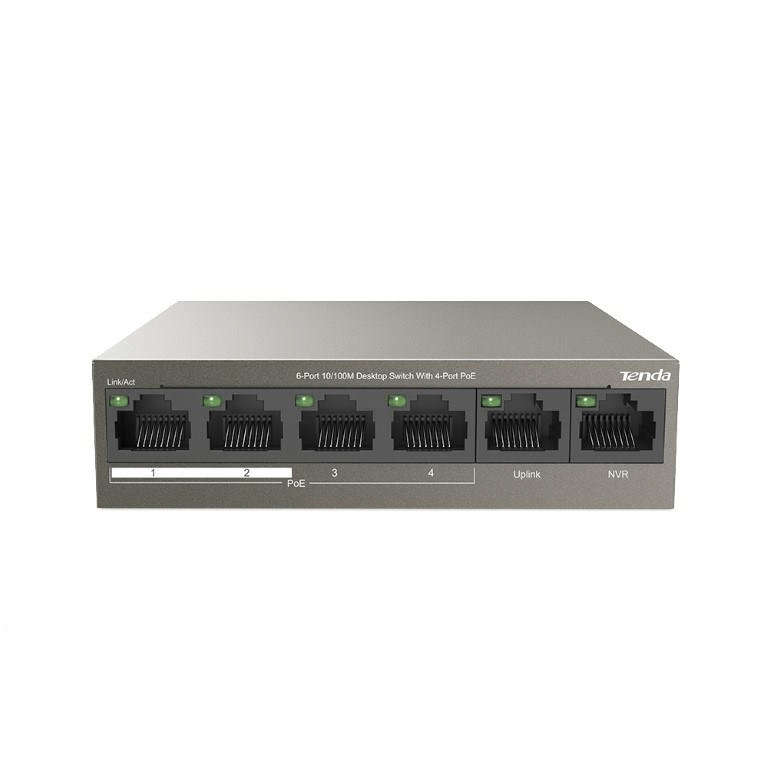

TEF1106P-4-63W is an unmanaged PoE switch with 2 uplink ports that can connect with Router & NVR. Compliant with IEEE 802.3at/af standards, it can identify PoE-powered devices intelligently. The switch supplies a maximum PoE power output of 63 W, and 30 W for a single port. TEF1106P-4-63W is an ideal choice for SMBs, supermarkets and restaurants with small-sized video surveillance requirement.
Specification
Network standards
IEEE 802.3/3u/3x, IEEE 802.3af/at
LED Indicator
6 * Link/Ack LED indicators
1 * Power LED indicator
Interfaces
4*10/100 Base-TX Ethernet ports
(Data/Power)
*10/100 Base-TX Ethernet ports (Data)
Transmission media
Recommended: CAT5/5e UTP or better
Fan quantity
N/A
Dimension
100.0mmx100.0mmx26.0mm
Level of protection
Lightning protection for ports: 6KV
Lightning protection for power: 4KV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV
Forwarding mode
Store-and-forward
Switch capacity
1.2 Gbps
Packet forwarding rate
0.89Mpps
Buffer
448K
MAC address table
1 K
Jombo frame
N/A
PoE budget
Single port: AF: 15.4W, AT: 30W
Whole device: 63W
Input voltage
100ï¼240V AC 50/60Hz
51V /1.25A DCï¼Power Adapter ï¼
Mounting
Desktop mounting: support
Wall mounting: support
Rack mounting:non-support
Environment
Operating Temperature: 0âƒ~45âƒ
Storage Temperature: -40âƒ~70âƒ
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Certification
FCCãCEãRoHS
Software
Funtions
Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.
Extend Mode: If Extend mode is enabled, Port 1-4 will be isolated respectively (10Mbps auto-negotiation).And the delivery distance of powering and network data is up to 250m (10Mbps).
