Lead security transmission power supply to a higher level

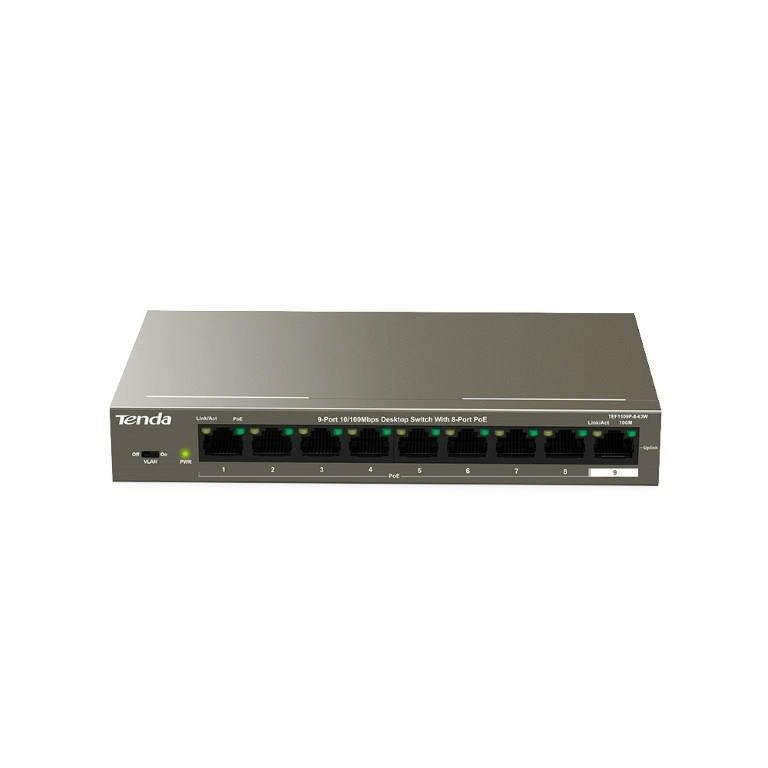

TEF1109P-8-63W 9-Port 10/100Mbps Desktop Switch With 8-Port PoE
6KV Lightning Protection | long distance transmission
Maximum PoE Output Power 58W | PoE power up to 30W for each PoE port
Up to 250 meters long distance transmission, beyond hundred meters transfer limit
Due to the complex monitoring environment, when making cabling and networking, it is usual to encounter the problem of inadequate network transmission distance, the distanceof each camera terminal to the monitoring center is different, some are only a few meters, some are hundred metres, while others are more than kilometers. Tenda TEF11 series PoE monitoring switches, exclusive patent network extension technology, use the common existing twisted pair, can support 250 meters data transmission, break the transmission limit of the existing twisted pair only for one hundred meters; Providing gigabit linked SFP port, can meet the demand of transmission to a few tens of kilometers.
Specification
Network standards
IEEE 802.3ã IEEE 802.3uãIEEE 802.3xãIEEE 802.3afãIEEE 802.3at
LED Indicator
9 * Link/Ack LED indicators
1 * Power LED indicator
Interfaces
8*10/100 Base-TX Ethernet ports (Data/Power)
1*10/100 Base-TX Ethernet ports (Data)
Transmission media
Recommended: CAT5/5e UTP or better
Fan quantity
N/A
Dimension
177.5mmx104.0mmx26.0mm
Level of protection
Lightning protection for ports: 6KV
Lightning protection for power: 4KV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV
Forwarding mode
Store-and-forward
Switch capacity
1.8 Gbit/s
Packet forwarding rate
1.34Mpps
Buffer
1.25Mb
MAC address table
4K
Jombo frame
N/A
PoE budget
Single port: AF: 15.4W, AT: 30W
Whole device: 58W
Input voltage
100ï¼240V AC 50/60Hz
51V /1.25A DCï¼Power Adapter ï¼
Mounting
Desktop mounting: support
Wall mounting: support
Rack mounting:non-support
Environment
Operating Temperature: 0âƒ~45âƒ
Storage Temperature: -40âƒ~70âƒ
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Certification
FCCãCEãRoHS
Software
Funtions
Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.
VLAN: ports 1 to 8 are isolated from each other, but can communicate with ports 9 (uplink port) respectively.
