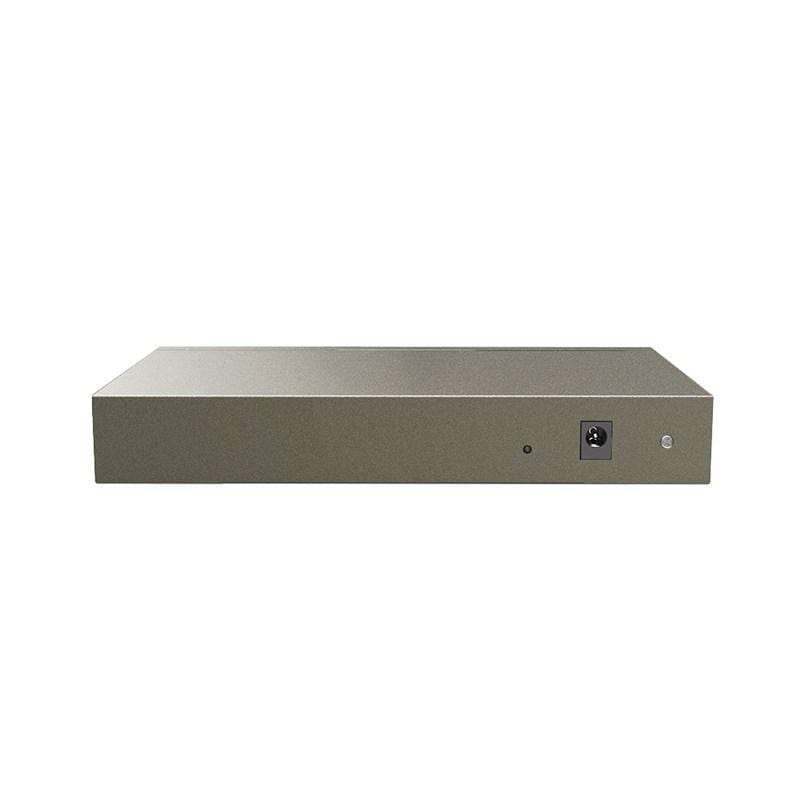

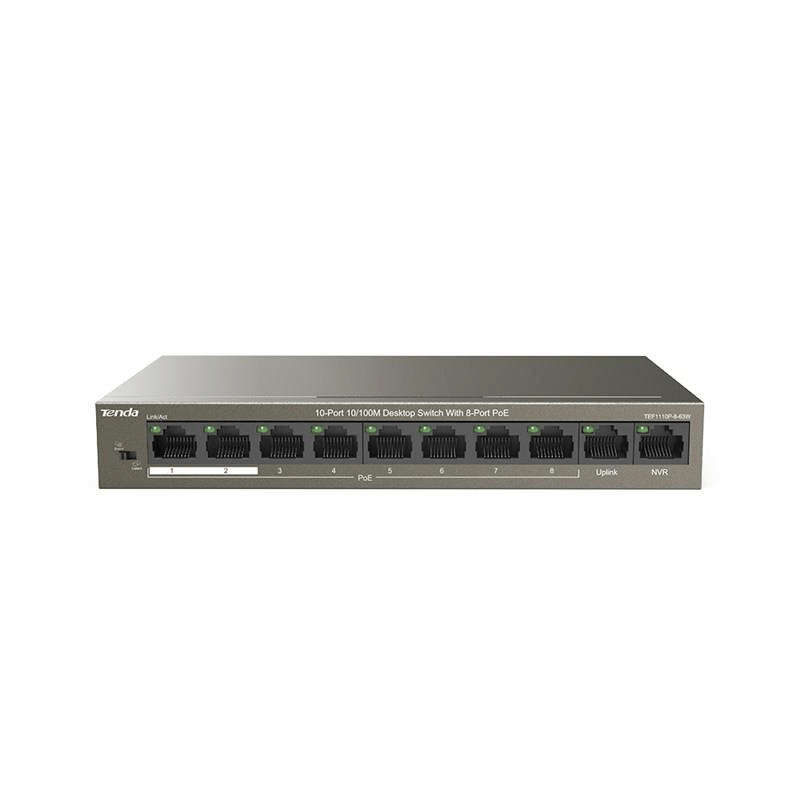

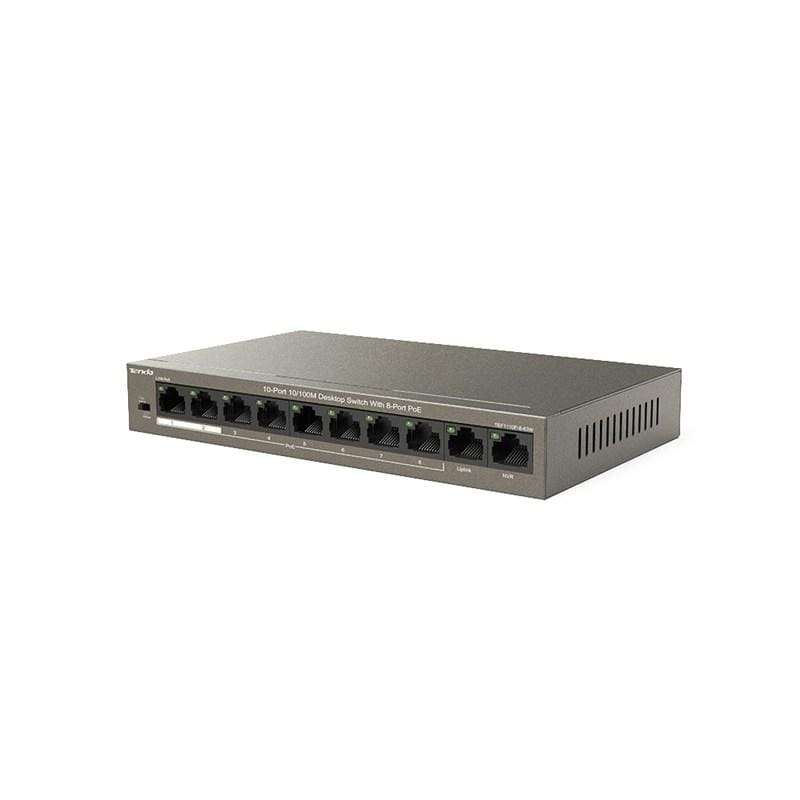

TEF1110P-8-63W is an unmanaged PoE switch with 2 uplink ports, independently designed by Tenda. Compliant with IEEE 802.3at/af standards, it can identify PoE-powered devices intelligently. The switch supplies a maximum PoE power output of 63 W, and 30 W for a single port. Featured with extend mode, One-key VLAN and QoS functions, TEF1110P-8-63W is a ideal choice for SMBs, supermarkets and restaurants with small-sized video surveillance requirement. Dual uplink port, more convenient for connecting Router and NVR TEF1110P-8-63W is an unmanaged PoE switch with 2 uplink ports that can connect with Router & NVR. Compliant with IEEE 802.3at/af standards, it can identify PoE-powered devices intelligently. The switch supplies a maximum PoE power output of 58W, and 30 W for a single port. TEF1110P-8-63W is an ideal choice for SMBs, supermarkets and restaurants with small-sized video surveillance requirement. Up to 250 meters long distance transmission under the Extend Mode,beyond hundred meters transfer limitation Due to the complex monitoring environment, the distance from each terminal to the monitoring center is different, some even more than hundred meters. TEF1110P-8-63W can support 250 meters data transmission under the Extend mode, which can save the cost of your project with less devices used. Excellent lightning Protection TEF1106P-4-63W supports professional lightning protection of 6KV for uplink ports & 4KV for power, which can protect the switch from the inductive lightning strike coming from the thunderstorm weather.
Specification
Network standards
IEEE 802.3/3u/3x, IEEE 802.3af/at
LED Indicator
10* Link/Ack LED indicators
1 * Power LED indicator
Interfaces
8 * 10/100 Base-TX Ethernet ports (Data/Power)
2 * 10/100 Base-TX Ethernet ports (Data)
Transmission media
Recommended: CAT5/5e UTP or better
Fan quantity
N/A
Dimension
177.5mmx104.0mmx26.0mm
Level of protection
Lightning protection for ports: 6KV
Lightning protection for power: 4KV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV
Forwarding mode
Store-and-forward
Switch capacity
1.6 Gbps
Packet forwarding rate
1.48Mpps
Buffer
448K
MAC address table
1K
Jombo frame
N/A
PoE budget
Single port: AF: 15.4W, AT: 30W
Whole device: 58W
Input voltage
100ï¼240V AC 50/60Hz
51V /1.25A DCï¼Power Adapter ï¼
Mounting
Desktop mounting: support
Wall mounting: support
Rack mounting:non-support
Environment
Operating Temperature: 0âƒ~45âƒ
Storage Temperature: -40âƒ~70âƒ
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Certification
FCCãCEãRoHS
Software
Funtions
Default Mode: If Default mode is enabled, the device works as a general switch and all ports support 10/100Mbps auto-negotiation.
Extend Mode:VLAN isolation is enabled. Port 1-8 will be isolated respectively (10/100Mbps auto-negotiation), but can communicate with the Uplink port. And the delivery distance of powering and network data is up to 250m (10Mbps).
