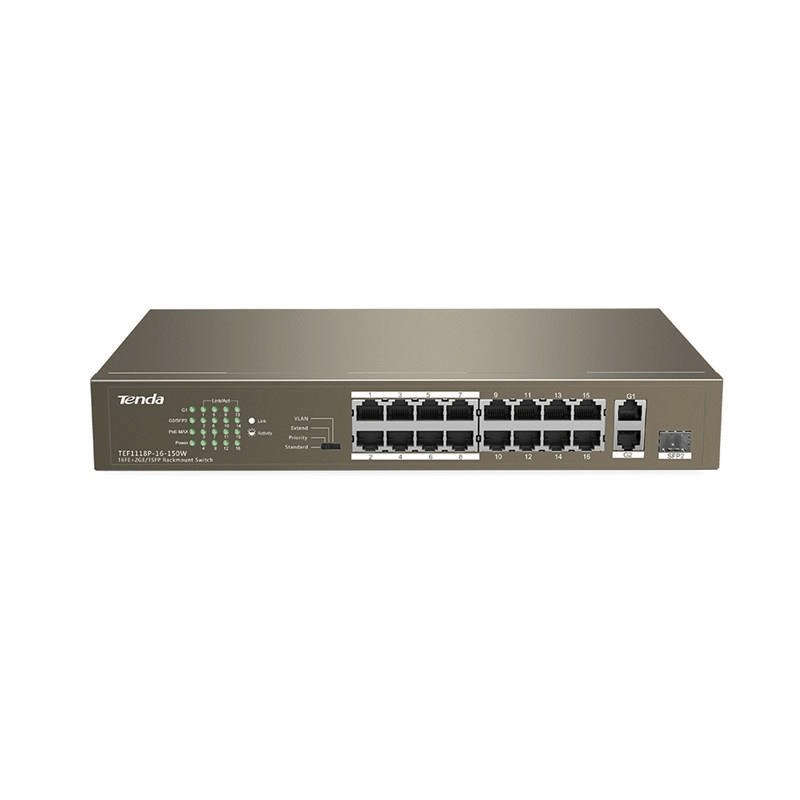

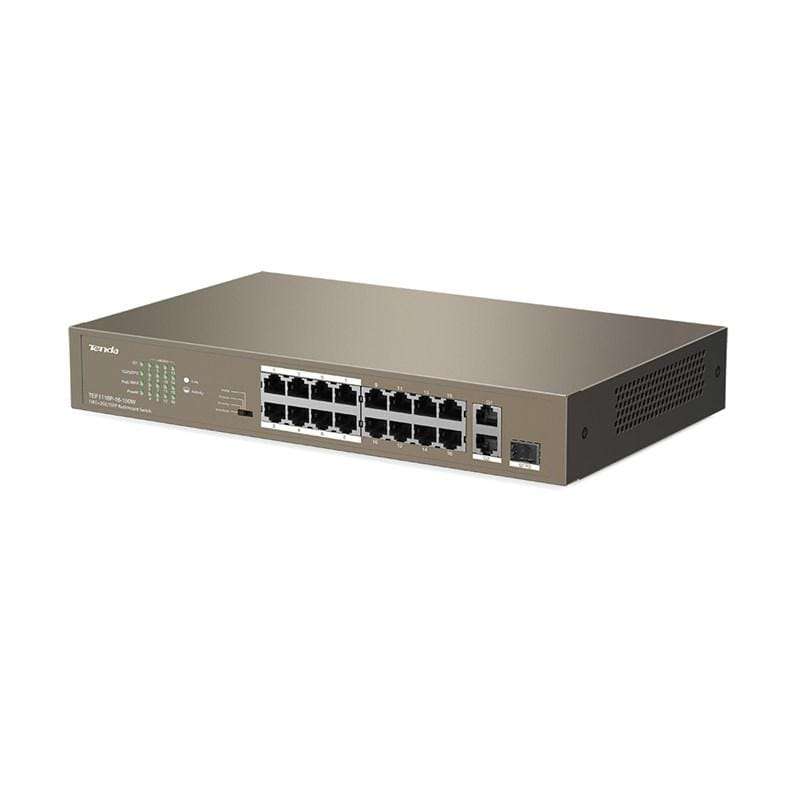

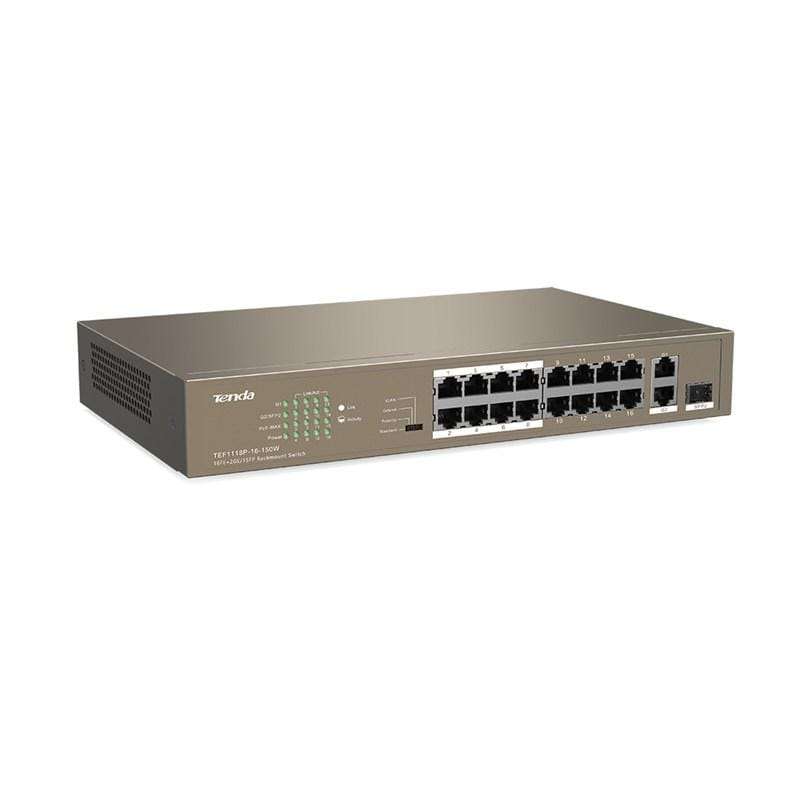

Tenda TEF1118P-16-150W 16-port FE ports + 1 GE+1 SFP port Unmanaged PoE+ Switch

Discover 22,000+ In-Stock Products!

https://www.bobshop-/store/FirstShop

Brand New & Sealed with Manufacturer Warranty!

Available: Mon—Fri, 08:00—17:00 - Closed on weekends & public holidays

GE & SFP uplink ports，Large Buffer of Nearly 3M

With one 10/100/1000 Mbps combo SFP slot, the switch can meet the current demand for uplink bandwidth of Gigabit WLAN and HD digital surveillance. Working with Tenda optical fibermodule TEG311SM, the switch supports a maximum transmission distance up to 20km.

Specification

Network standards

IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3af/at

LED Indicator

16 * Link/Act LEDs
1 * G1 LED
1 * G2/SFP2 LED
1 * PoE-MAX LED
1 * Power LED

Interfaces

16 * 10/100 Base-TX Ethernet ports (Data/Power)
2 * 10/100/1000 Base-T Ethernet ports (Data)
1 * 1000 Base-X SFP port (Combo)

Transmission media

Recommended: CAT5/5e UTP or better

Fan quantity

N/A

Dimension

294.0mmx178.8mmx44.0mm

Level of protection

Lightning protection for ports: 6kV
Lightning protection for power: 6kV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV

Forwarding mode

Store-and-forward

Switch capacity

7.2 Gbps

Packet forwarding rate

5.36 Mpps

Buffer

1.25Mb

MAC address table

4K

Jombo frame

N/A

PoE budget

Single port: AF: 15.4W, AT: 30W
Whole device: 130W

Input voltage

100-240V AC 50/60Hz

Mounting

Desktop mounting: support
Wall mounting: support
Rack mounting : support

Environment

Operating Temperature: 0âƒ~45âƒ
Storage Temperature: -40âƒ~70âƒ
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Certification

FCCãCEãRoHS
