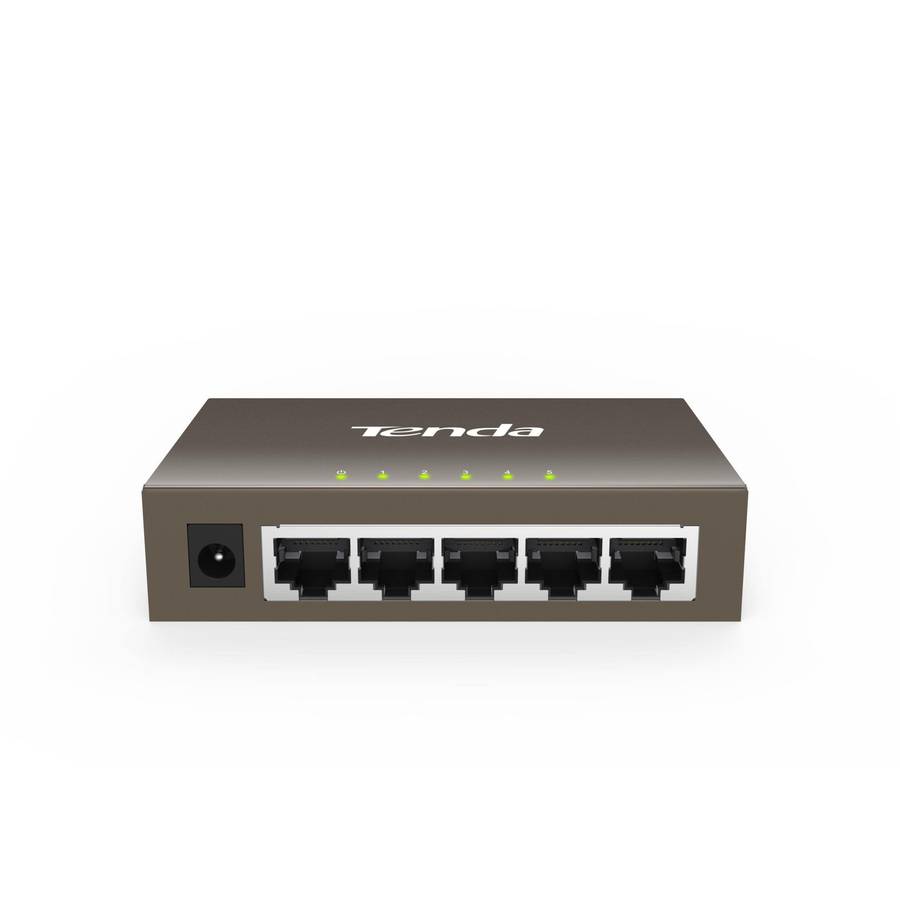

Lightning protection for ports Integrated with professional a lightning protection circuit that offers 6KV lightning protection to each port to effectively prevent lightning-induced current from damaging the ports or switch, so as to ensure the surveillance system stability. Extraordinary heat dissipation A housing made of 0.8 mm galvanized industrial-grade steel plates for excellent durability, heat dissipation performance, ensuring stable switch operation, a long service life, and more reliable outdoor security surveillance. Stay connected for 7x24 5x 10/100/1000Mbps auto-negotiation RJ45 ports that support line-speed forwarding and large-capacity cache, ensuring smooth surveillance video playback and stable data transmission for 7x24. User-friendly design RJ45 ports and LED indicators are located on the same side and aligned vertically for more intuitively showing network status. The RJ45 ports and the power port are designed in the same orientation to reduce the mounting space requirement, allowing the switch to fit into the slimmest outdoor weak current box.
Specification
Network standards
IEEE802.3ã IEEE802.3uãIEEE802.3xã IEEE802.3ab
LED Indicator
1 * Power，5 * Link/Act
Interfaces
5*10/100/1000 Base-T Ethernet ports (Auto MDI/MDIX)
Transmission media
Recommended: CAT5/5e UTP or better
Fan quantity
N/A
Dimension
100.0mmx64.0mmx23.0mm
Material
Metal
Level of protection
ESD:
Air discharge: ±8kV
Contact discharge: ±6kV
Forwarding mode
Store-and-forward
Switch capacity
1Gbps
Packet forwarding rate
7.44Mpps
Buffer
1Mb
MAC address table
2K
Jombo frame
15K
Power
Input: 100-240V AC 50/60Hz
Output: 5.0V 0.6A ( External Power Adapter )
Power consumption
Max:<2.5W
Mounting
Desktop mounting: support

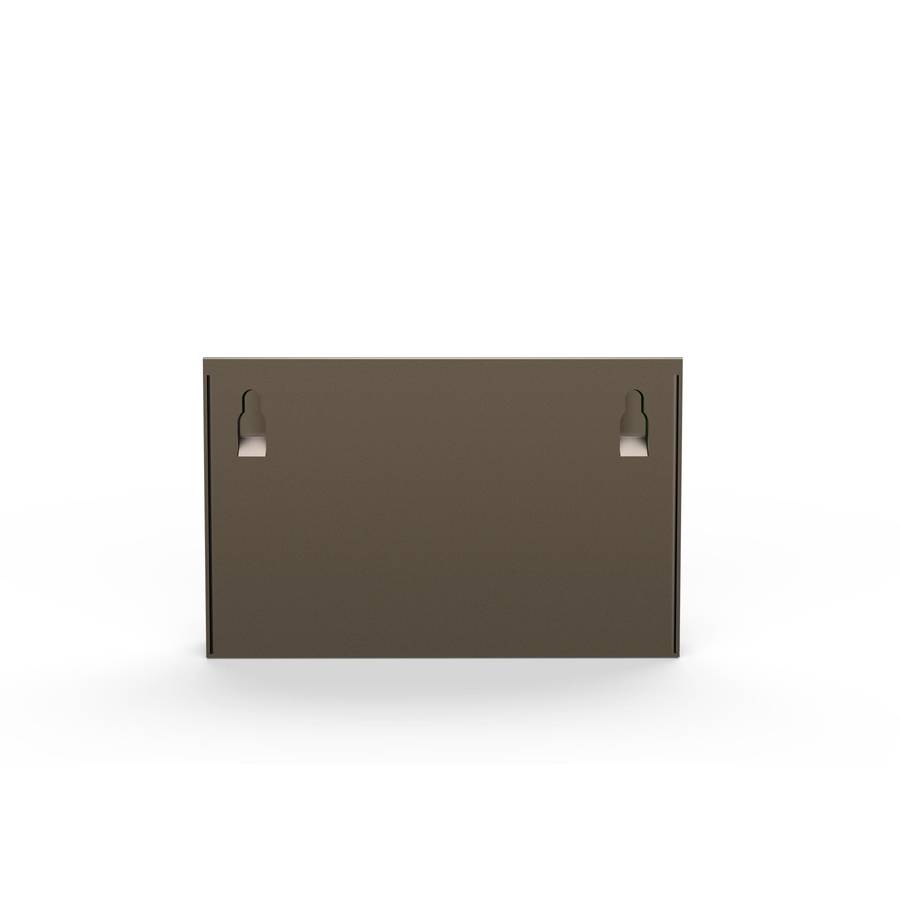

Wall mounting: support
Rack mounting:non-support
Environment
Operating temperature: 0°C - 45âƒ
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%) RH, non-condensing
Storage humidity: (5% - 90%) RH, non-condensing
Certification
CE, FCC, RoHS
Software
Protocols
CDMA/CD
MAC address learning
Auto-Learning and Auto-Aging
Funtions
plug-and-play
