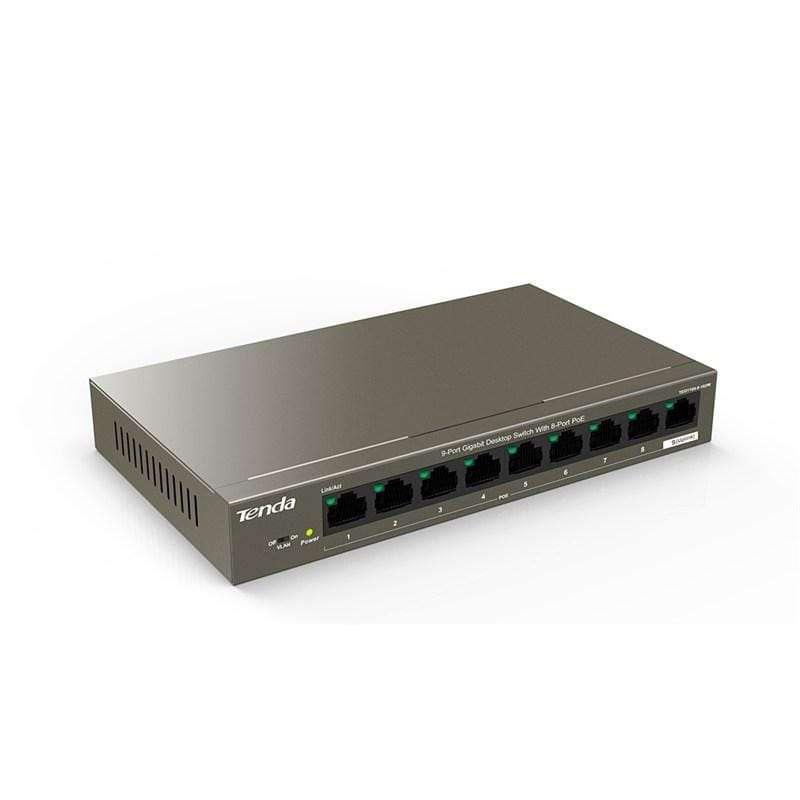

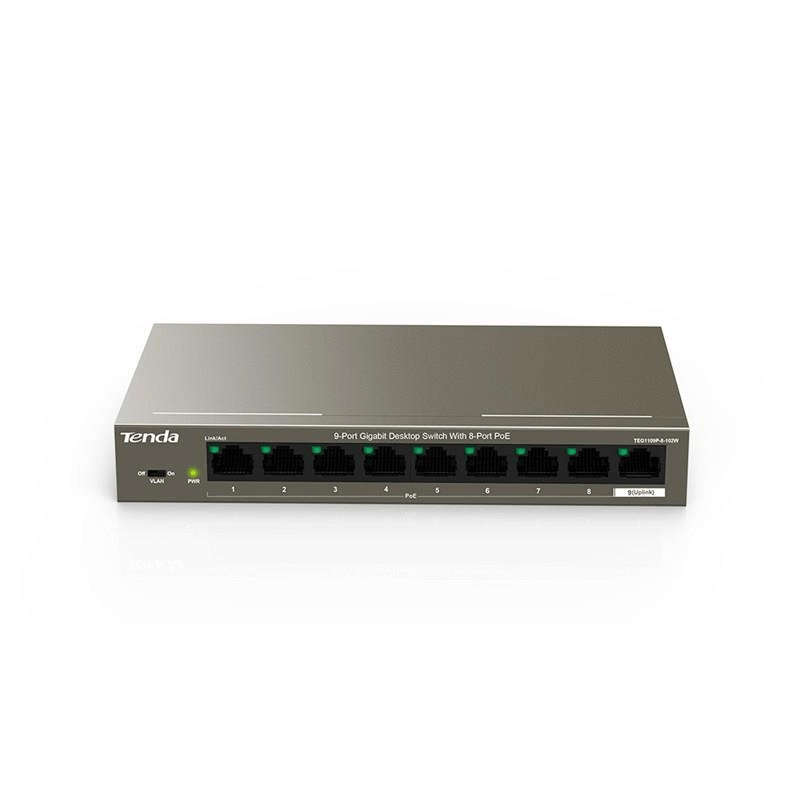

TEG1109P-8-102W is the gigabit unmanaged lightning protection switch which is Tenda specifically developed for requirement of building Gigabit WLAN and HD camera monitor network.With high-performance access, 9-10/100/1000M Base-T Ethernet RJ45 ports; 6KV lightning-proof for uplink port; every single port support MDI/MDIX and wired speed; PoE ports supports IEEE802.3at/af standard while detecting and recognizing the IEEE802.3at/af standard power device automatically. Through conventional Cat 5e twisted-pair cable, power can be transmitted along with data for AP, IP Camera and IP Phone. With PoE dynamic power, easier configure, flexible extend network without being limited by the power line layout, plug and play, helping SMB,hotel, shopping mall,school to build high-security and reliability network of wireless cover and HD monitor. Excellent Lightning Protection The switch supports 6 kV lightning protection for uplink port, protecting the switch from thunderstorms and making it more stable. Outstanding PoE Power Supply Ports 1-8 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides 30W maximum PoE output a single port and 92W the whole device. What's Special for TEG1109P-8-102W : Enjoy Super HD Video Screen 2Mb built-in packet buffer outstand in comparison, ensuring smooth transmission of large files and HD videos even when HD IP cameras of 500W are working simultaneously. Integrated with Smart Power Management Chip Makes the Switch Get Rid of Overload It includes chips with smart power management function and integrated professional chip control algorithm,which can accurately calculate the output power. When the power of the receiving equipment exceeds the rated power (92W) of the PoE switch, the low priority port will automatically power off to avoid the over-run of the equipment and prolong the service life of the equipment. What's Special for TEG1109P-8-102W : Simple Port VLAN Setup Ports 1-8 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides 30W maximum PoE output a single port and 92W the whole device.
Specification
Network standards
IEEE 802.3ã IEEE 802.3uãIEEE 802.3abãIEEE 802.3xã IEEE 802.3afãIEEE 802.3at
LED Indicator
9* Link/Ack LED indicators
1 * Power LED indicator
Interfaces
8*10/100/1000 Base-T Ethernet Ports(Data/Power)
1*10/100/1000 Base-T Ethernet Ports(Data)
Transmission media
Recommended: CAT5/5e UTP or better
Fan quantity
N/A
Dimension
177.5mmx104.0mmx26.0mm
Level of protection
Lightning protection for ports: 6kV
Lightning protection for power: 6kV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV
Forwarding mode
Store-and-forward
Switch capacity
18 Gbps
Packet forwarding rate
13.4Mpps
Buffer
2M
MAC address table
16K
Jombo frame
N/A
PoE budget
Single port: AF: 15.4W, AT: 30W
Whole device: 92W

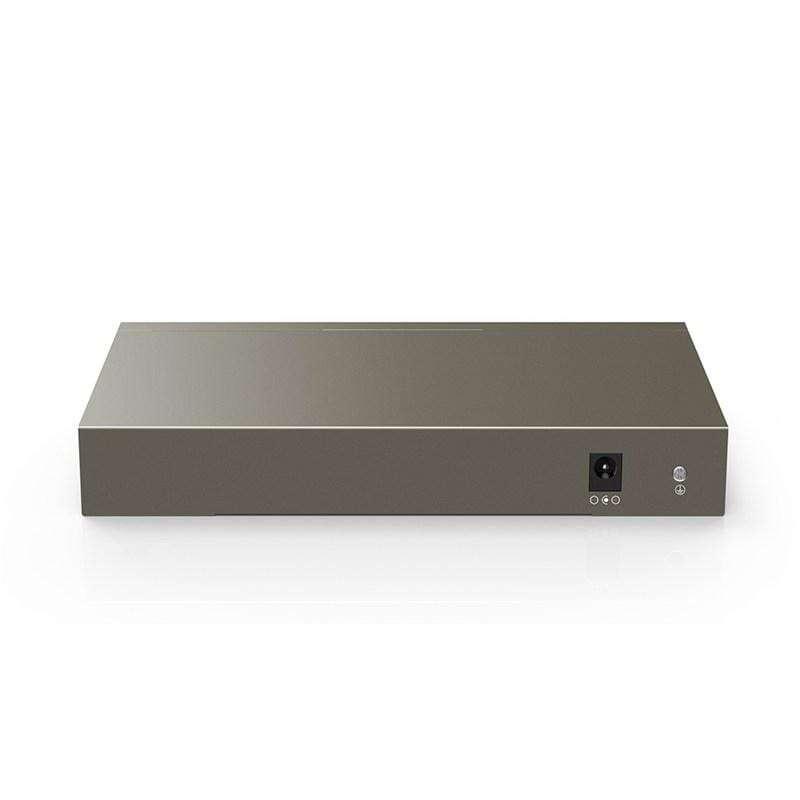

Input voltage
100-240V AC 50/60Hz
51V /2.0A DCï¼Power Adapter Output ï¼
Mounting
Desktop mounting: support
Wall mounting: support
Rack mounting:non-support
Environment
Operating Temperature: 0âƒ~45âƒ
Storage Temperature: -40âƒ~70âƒ
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Certification
FCCãCEãRoHS
Software
Funtions
Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.
VLAN: ports 1 to 8 are isolated from each other, but can communicate with ports 9 (uplink port) respectively.
