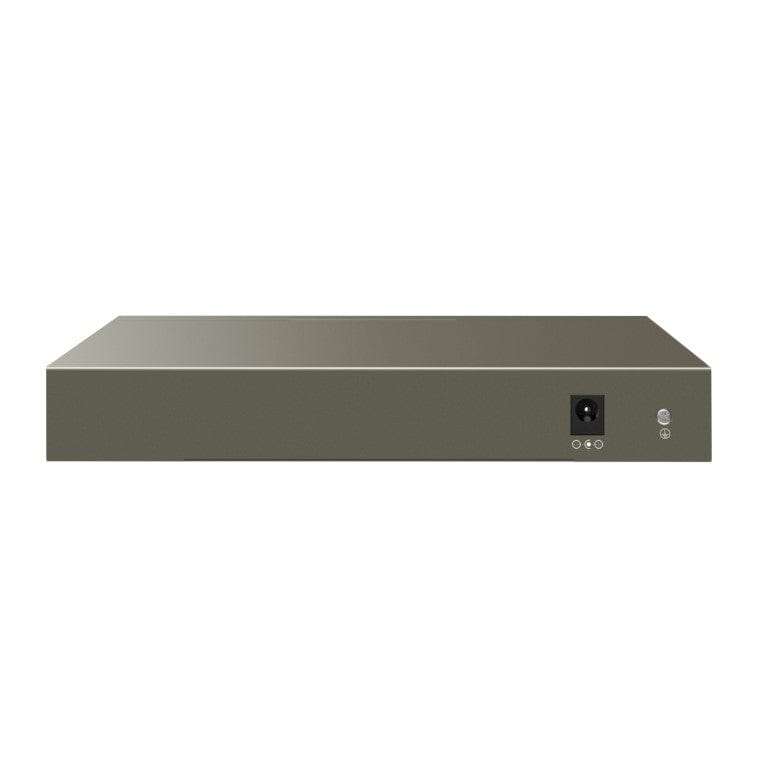

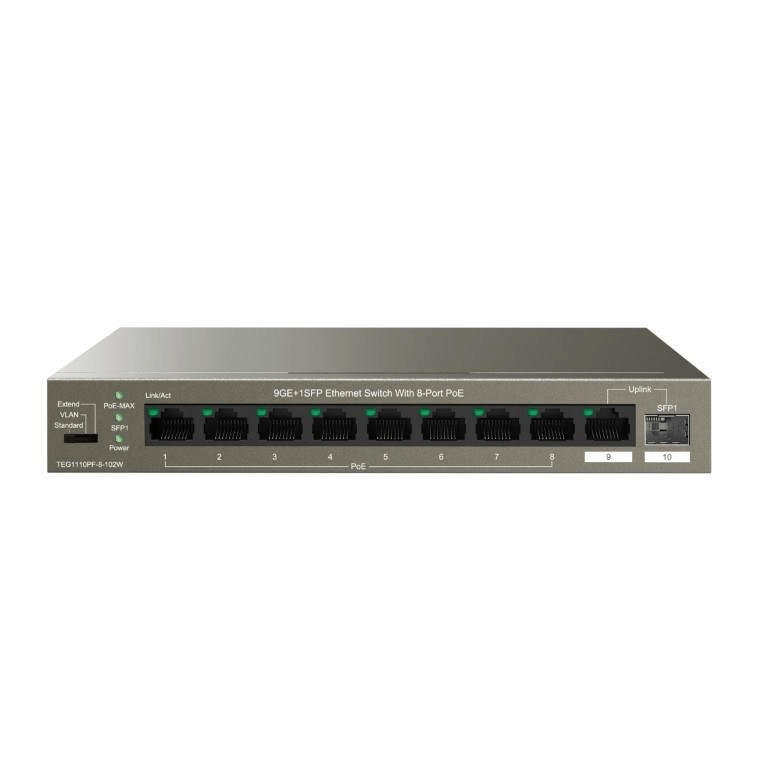

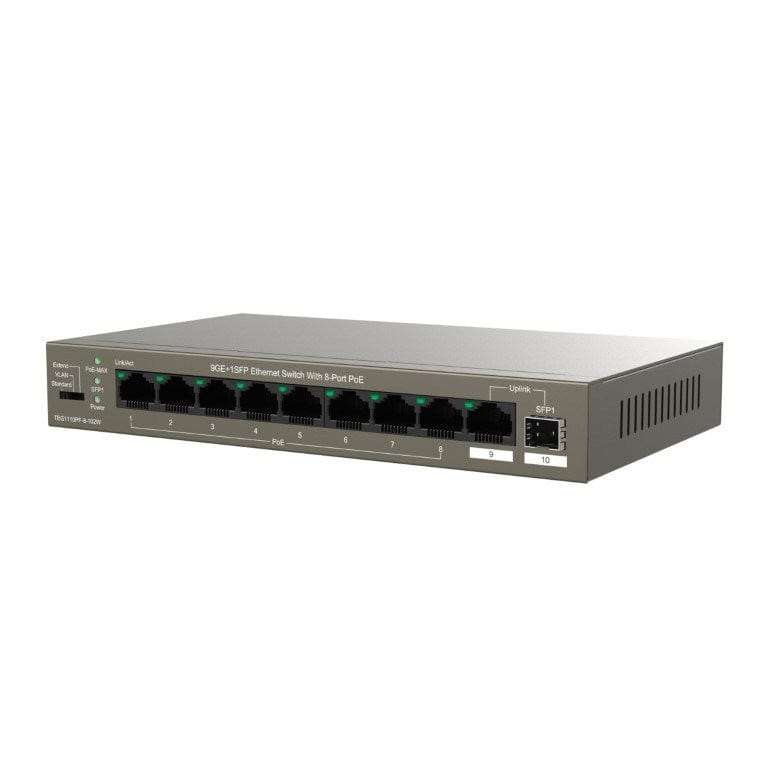

Tenda TEG1110PF-8-102W 8-port PoE GbE Unmanaged Switch with 1-port SFP
TEG1110PF-8-102W is a unmanaged PoE switch independently designed by Tenda. It supports IEEE 802.3af/at standards for PoE power supply, capable of transmitting data and supplying power for 8 HD PoE cameras or gigabit APs. The maximum PoE output of a single port is 30 W and the total power consumption of the switch is 102W. Supporting three-mode toggle, TEG1110PF-8-102W is suitable for complex networking deployment and is your ideal choice for video surveillance and gigabit wireless networking in such scenarios as SMEs, residential areas,industrial parks, hotels and schools.
Features
- Non-blocking High-speed Forwarding
- Intelligent Power Control
- High Power Design
- Easy to Use
The Faster, The Better Experience
Full gigabit ports, 20 Gbps non-blocking line speed forwarding, greatly improve the forwarding rate of large files, ensure smooth and stable transmission of large files and HD videos.
Smart PoE Power Supply, Stable Transmission
The chip provides intelligent power management function. When the power supply exceeds the rated power of the PoE switch (92W), the low-priority port is automatically powered off to avoid overload and prolong the service life of the PoE switch.
GE and SFP Uplink Ports, Easier HD Monitoring
With a gigabit uplink port and a gigabit uplink optical fiber port, easily complete low-cost remote networking.
3 Modes For More Scenarios, One-key To Change Smart And Easy
The switch supports 3 working modes of Standard, VLAN and Extend, realizing flexible network deployment in complex cases with lowered cost.
- Mode 1 : Standard - Default mode of the switch. In this mode, it works as an unmanaged switch; all ports can communicate with each other separately.
- Mode 2 : VLAN - In this mode, ports 1 - 8 are isolated from each other, but all of them can communicate with port 9 and SFP1. This mode helps isolate DHCP broadcast and reduce broadcast storms.
- Mode 3 : Extend - In this mode, all ports can communicate with each other, and the transmission distance of 1-8 ports can be extended to 250m.
6KV Professional Lightning Protection Design, Fearless Of Thunderstorm Weather
The switch supports 6 kV lightning protection for ports and the power supply, reducing the risk of inductive lightning and ensuring stable operation even under thunderstorms.
Scenario
- SMBs
- Hotels
- Restaurant
- Shop
Technical Specification
Product: Tenda TEG1110PF-8-102W Switch
Interfaces
-
8x 10/100/1000 Mbps Base-T Ethernet ports (Data/Power)
-
1x 10/100/1000 Mbps Base-T Ethernet port (Data)
-
1x 100/1000 Mbps Base-X SFP port
Network standards
-
IEEE 802.3
-
IEEE 802.3u
-
IEEE 802.3ab
-
IEEE 802.3x
-
IEEE 802.3af
-
IEEE 802.3at
Switch capacity: 20 Gbps
Packet forwarding rate: 14.9Mpps
Buffer: 2M
MAC address table: 16K
Transmission media: CAT5/5e UTP or better
Level of protection
-
Lightning protection for ports: 6KV
-
Lightning protection for power: 6KV
-
ESD Air discharge: ±10kV
-
ESD Contact discharge: ±8kV
PoE budget - Single port: AF: 15.4W, AT: 30W
PoE budget - Whole device: 92W
PoE Power Supply
-
IEEE 802.3af/at standards PoE power supply on ports 1-8
-
Voltage of cores 1, 2, 4, 5 is +, and cores 3, 6, 7, 8 is -
Input voltage: 100-240V AC 50/60Hz ; 51V /2.0A DC (Power Adapter Output)
Mounting
